XIAO schematic & footprint Library is available?

shoo · April 22, 2020, 12:29pm

“XIAO” schematic & footprint Library is available?
I want to use on “KIcad”.
on Github is OLD ver than Release Product.

ansonhe97 · April 23, 2020, 1:37am

I have updated KiCAD and Eagles footprint on wiki, please check here.

shoo · April 23, 2020, 6:18am

Great work!! ansonhe97.

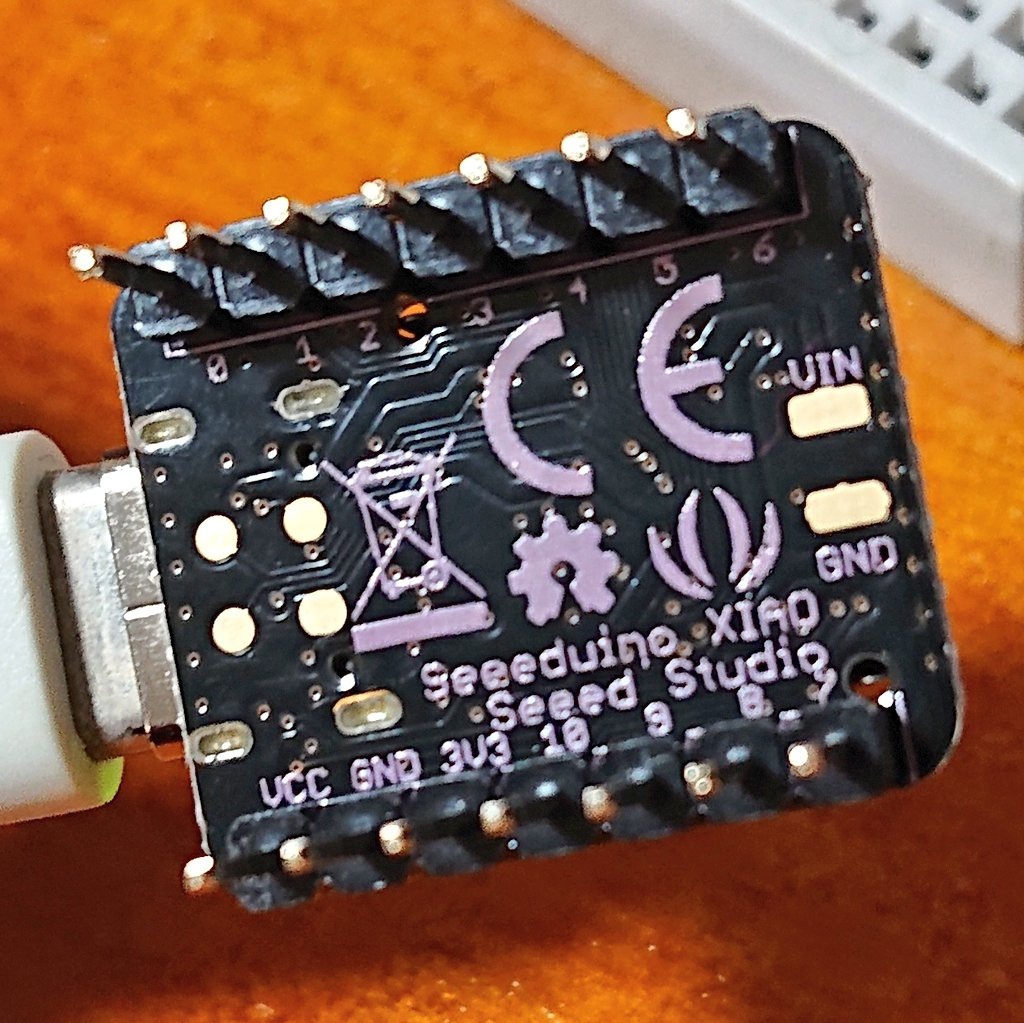

By the way, Do you know under the 4dot pattern pin assign?
I think , Any of them.
TP2 : RESET
TP4 : GND
TP3 : PA30_SWCLK
TP5 : PA31_SWDIO

ansonhe97 · April 23, 2020, 6:43am

@shoo,

Check here:

shoo · April 23, 2020, 8:19am

thanks a lot @ansonhe97!

I update under pad 4dot and Vin/GND.
But position is not precise (measure by vernier caliper)
Colud you fix that?

ansonhe97 · April 23, 2020, 10:32am

Updated to wiki, check the resources again, and it should be it!

net_worker · December 6, 2022, 3:23pm

@ansonhe97 Is there Altium Designer library available?

okeefer22 · September 21, 2026, 10:05pm

Did you ever find one? I couldn’t so I have been working on some for our internal library. But I found that the pads in the DXF file on the wiki do not align properly with the pads in the STP file on the wiki, and I have not idea which is correct.

net_worker · September 21, 2026, 10:58pm

I totally forgot I had registration here. Anyway, I have an Integrated Library(IntLib) somewhere. I will upload it first thing tomorrow at noon. In the meantime check SnapEDA Search, 95% sure you will find for every variant of the XIAO or use the Altium import wizard. If you need help with the pcb or Altium fell free to contact me.
