Xiao nRF52840/SX1262 presolder stack on an Expansion Board Base for XIAO with Grove OLED?

Products & Technology XIAO
1

Can a Xiao nRF52840/SX1262 presolder stack be used on an Expansion Board Base for XIAO with Grove OLED? I have a Xiao/lora hat stack mounted on an Adafruit Bff module now. But I want to move the stack over to an expansion board base with an OLED. I read that it won’t work with the stack. Just trying to find out for sure before I mess something up. Thanks Cam

2

Hi there,

Yes, and YES… Works great ,be sure to get the pins right in the sketch, double check them,
:grin:

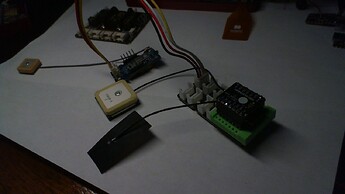

WIN_20250223_15_48_37_Pro
WIN_20250223_15_48_37_Pro1280×720 88 KB

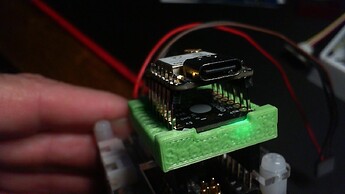

WIN_20250225_17_51_35_Pro
WIN_20250225_17_51_35_Pro1280×720 109 KB

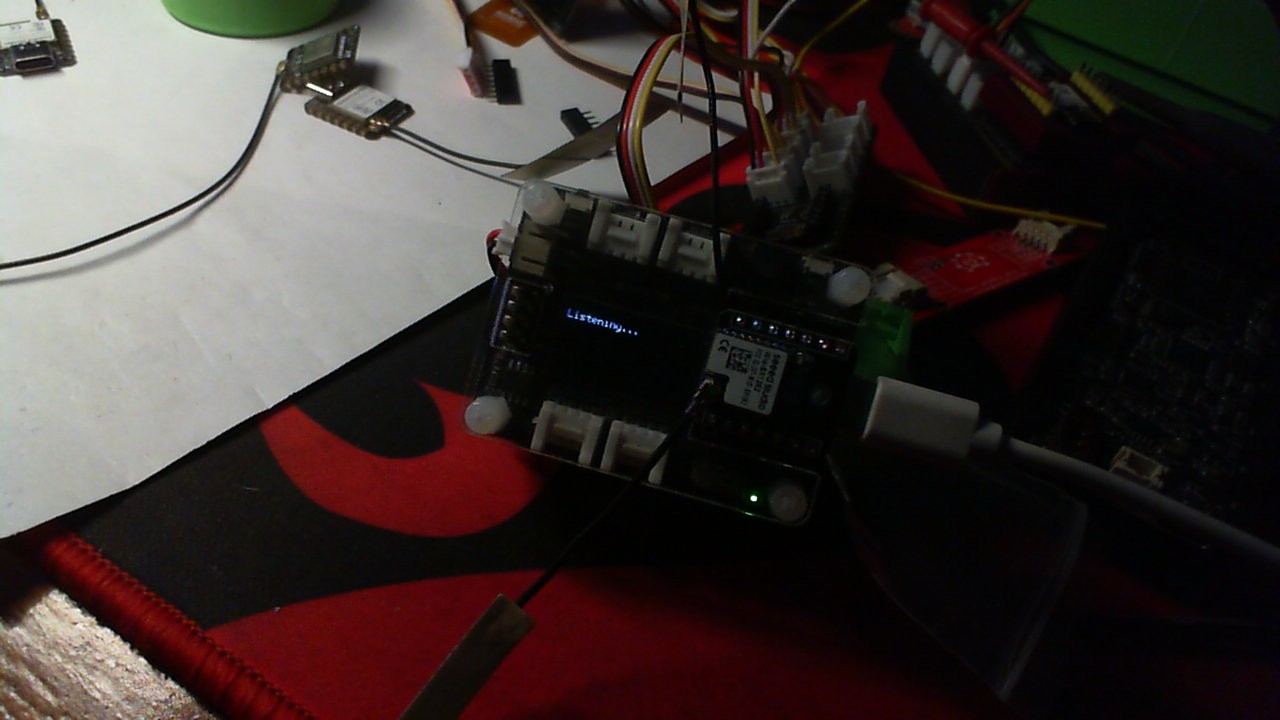

WIN_20250225_17_56_45_Pro
WIN_20250225_17_56_45_Pro1280×720 95.4 KB

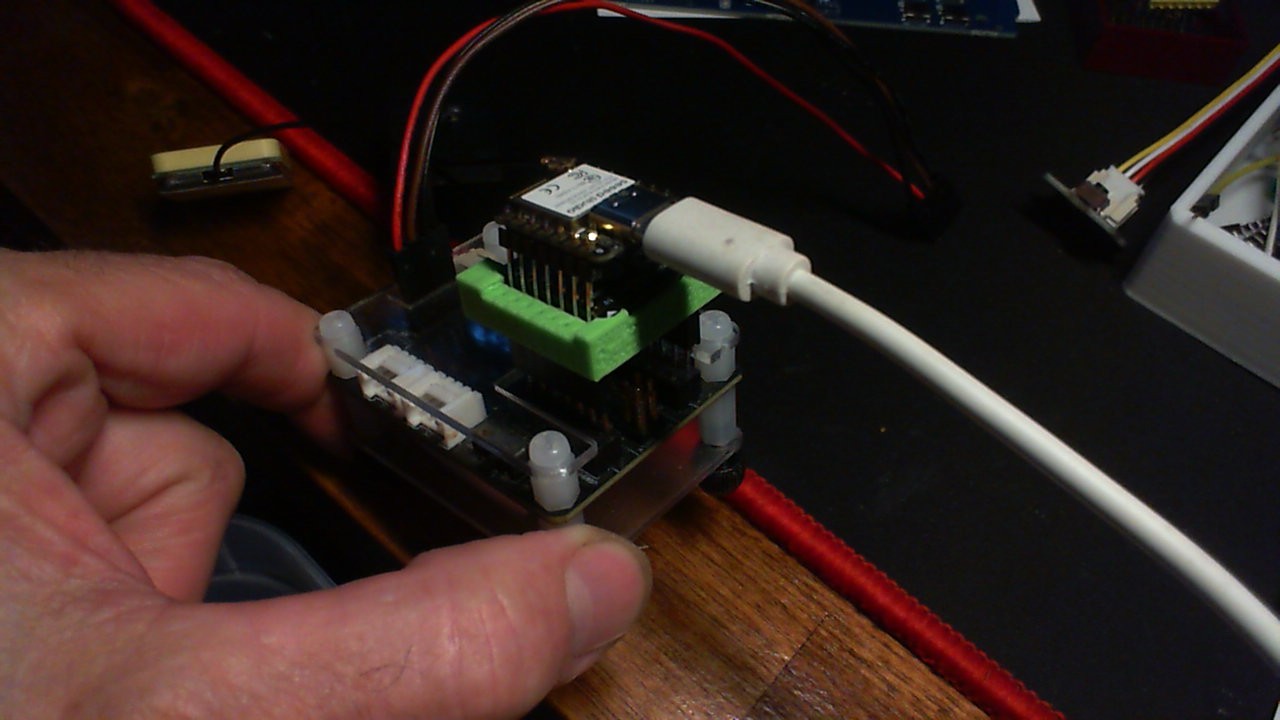

Works Great I used a socket with long pins.

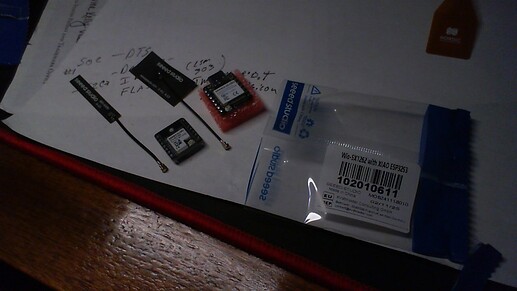

WIN_20250319_18_38_03_Pro
WIN_20250319_18_38_03_Pro1280×720 108 KB

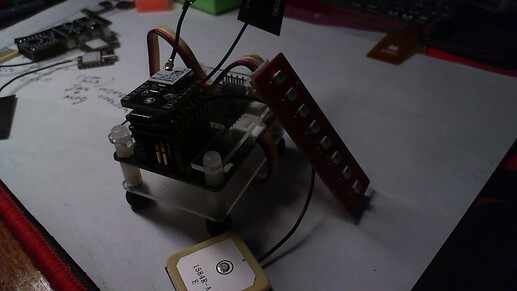

WIN_20250320_22_15_04_Pro
WIN_20250320_22_15_04_Pro1280×720 96.3 KB

LORA + GPS + Xiao +expansion w/OLED and WS8212 LED Strip for status.
works very well :+1:

HTH
GL :slight_smile: PJ :v:

3

Thanks for the info and pics, I appreciate it! I read you could, and I read you couldn’t stack them on the expansion board base.

4

Hi there,

Sure, NP.
The stacking can be done by putting the GPS on the Bottom too.
Depending on Which Xiao kit you use , it changes slightly. :v:

HTH
GL: :slight_smile: PJ :v:

5

I’d be careful with this combination. The XIAO nRF52840 is supported by the Expansion Board Base, but the SX1262 stack uses specific pin connections, so it may not be a simple plug-and-play setup. I’d check the pin mapping and physical clearance before moving the stack. The Expansion Base documentation confirms nRF52840 compatibility, but it doesn’t specifically confirm the SX1262 stack.

6

Hi there,

So, Having done exactly that , NOTHING to worry about, Both are supported, so
I don’t know where you get the “Beware” vibe from… :face_with_peeking_eye:

Not only does it work but , Look Mom, :blush: it has a display too…
Hit the Magnifier up in the corner and search it you will find a video demo and code working a Ping-Pong test between 2 nodes and some Range tests as well.

YOLO

HTH
GL :slight_smile: PJ :v:

WIN_20250401_11_35_26_Pro
WIN_20250401_11_35_26_Pro1280×720 101 KB

You can use the Other Grove Ports also…add a WS8212 8-bit Strip and use it for status
:grin:

WIN_20250320_22_15_04_Pro
WIN_20250320_22_15_04_Pro1280×720 96.3 KB

Have a look at the schematic, You quickly see it is a No-brainer. :brain:

Works on the Smaller Breakable to a shorty :smile:
Grove Expansion as well. and you can add an external display too.

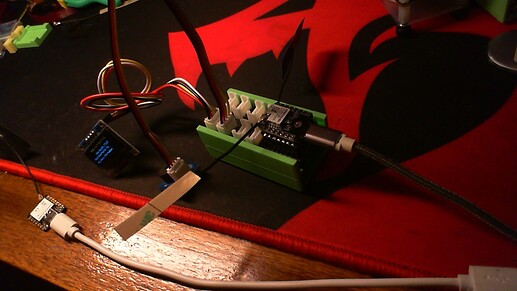

WIN_20250601_19_38_59_Pro
WIN_20250601_19_38_59_Pro1280×720 134 KB

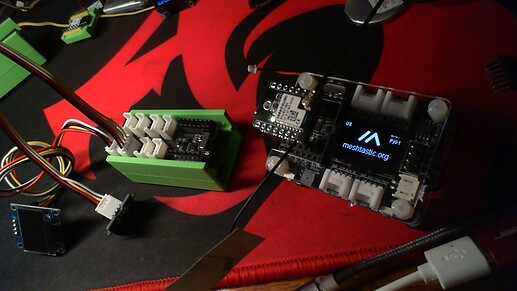

WIN_20250601_20_53_35_Pro
WIN_20250601_20_53_35_Pro1280×720 143 KB

BTW , it works on the round display, if you know how to move around :+1:
