Hi there,

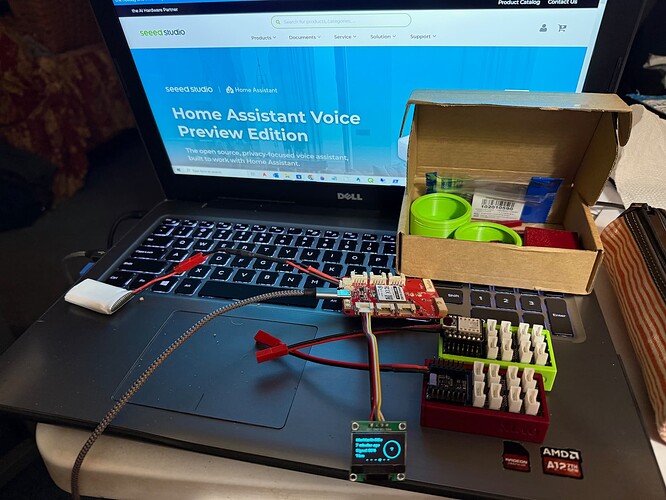

Nice :+1: I got some HIGH sides on these, I’m thinking a cover with the display in it (on Top)
the one on the right has bigger battery compartment too.

WIN_20241229_13_21_56_Pro
WIN_20241229_13_21_56_Pro1280×720 138 KB

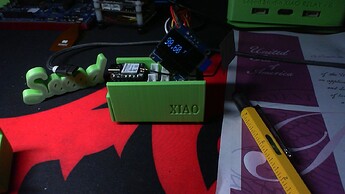

The one on the left , if i make the socket a little TAD shorter it will all fit. :+1:

WIN_20241229_13_22_54_Pro
WIN_20241229_13_22_54_Pro1280×720 148 KB

GL :slight_smile: PJ :v:

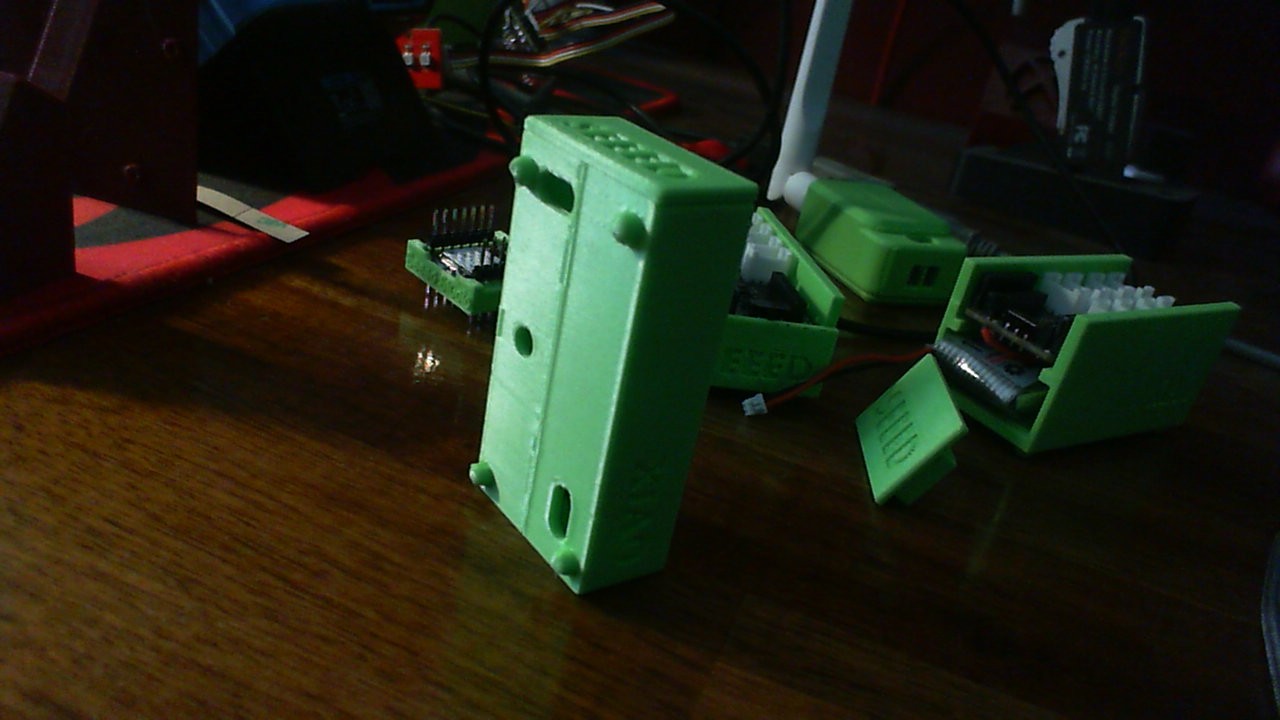

WIN_20241229_13_31_17_Pro
WIN_20241229_13_31_17_Pro1280×720 121 KB
WIN_20241229_13_31_44_Pro
WIN_20241229_13_31_44_Pro1280×720 125 KB

WIN_20241229_13_31_59_Pro
WIN_20241229_13_31_59_Pro1280×720 126 KB

yea, pen has a bubble level in it… :sunglasses:

WIN_20241229_13_39_59_Pro
WIN_20241229_13_39_59_Pro1280×720 122 KB

3

Hi there,

I will post it up to m y thingiverse , time permitting…
But here is a ZIP file of the edited , printable parts for Grove Expansion Board Holder.

  • Added Feet
  • upsized the Sides
  • made a front cover
  • added some Seeed

WIN_20250417_12_46_54_Pro
WIN_20250417_12_46_54_Pro1280×720 140 KB

WIN_20250417_13_16_14_Pro
WIN_20250417_13_16_14_Pro1280×720 112 KB

END_CAP_Xiao_Grove.zip (1.7 MB)
Xiao_expansion_grove_base_End_cover.zip (609.7 KB)

HTH

GL :slight_smile: PJ :v:

Get you some Seeed Green PLA + and have a go at it.
You can adjust size in the slicer too. the Freecad files are there as well. ENJOY :+1:
