I finally got the Adafruit ili9341 library working with the Xiao ESP32-S3!
I was reading a rather heated conversation between PJ Glasso and Energia about pin assignments on various ESP32 boards, when the magnitude of my stupidity hit me. In my Arduino sketch I had been using D pin references and not GPIO pin references, so it wasn’t surprising my sketch wasn’t working!

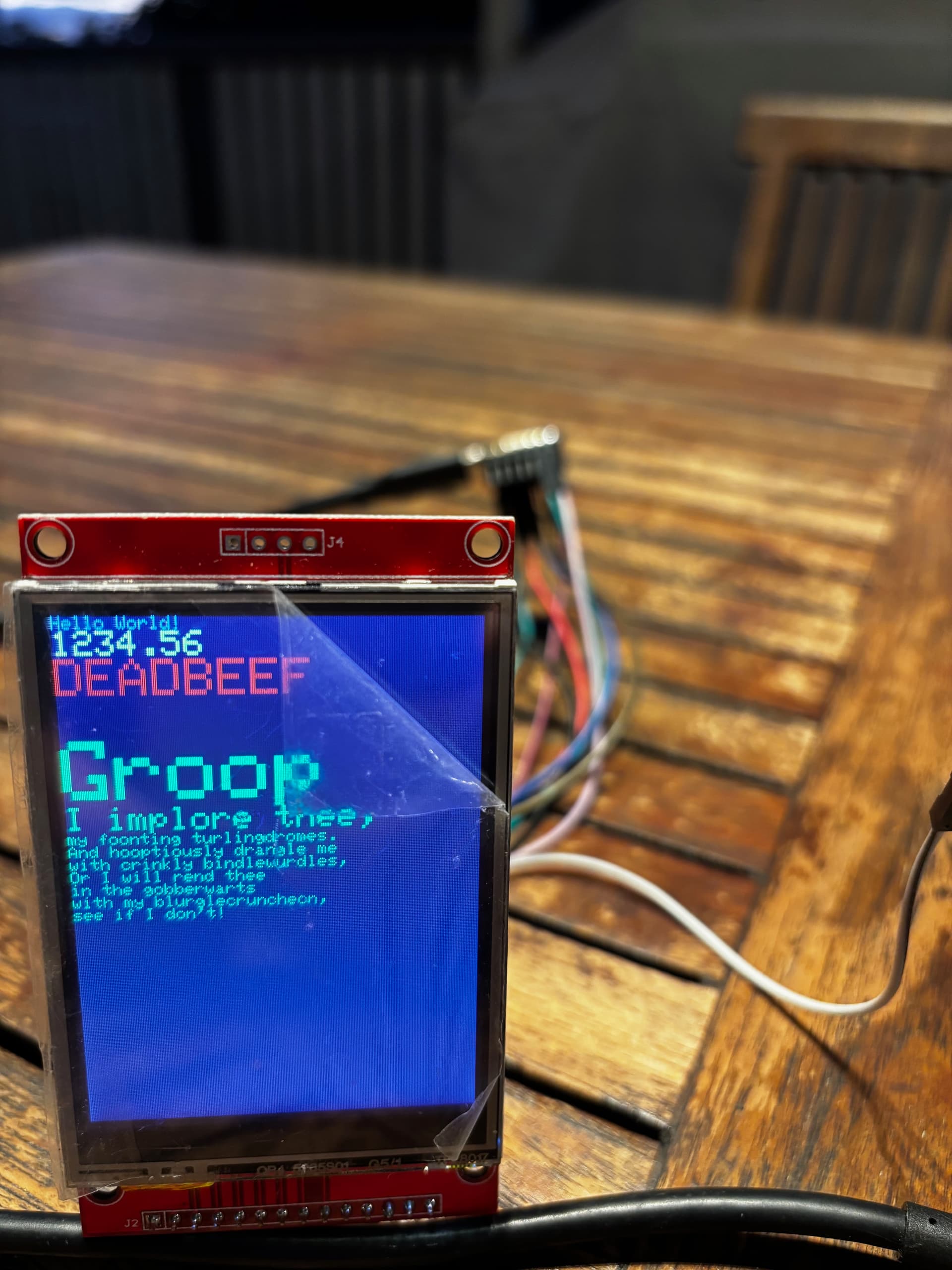

I now have the standard DEADBEEF application running on a ili 9341 TFT display with the Xiao esp32-s3:
Here it is below.
Pin assignments in code are the ESP32-S3 GPIO. Nothing else works…
<#include <SPI.h>
#include “Adafruit_GFX.h”
#include “Adafruit_HX8357.h”
// Analog meter display demo on HX8357 3.5" TFT
// Adapted from
/*
An example analogue meter using a ILI9341 TFT LCD screen
Alan Senior 23/2/2015
*/
// For the Adafruit shield, these are the default.
#define TFT_CS 44
#define TFT_DC 43
#define TFT_RST 6
#define TFT_CLK 7
#define TFT_MISO 8
#define TFT_MOSI 9
// Use hardware SPI (on Uno, #13, #12, #11) and the above for CS/DC
Adafruit_HX8357 tft = Adafruit_HX8357(TFT_CS, TFT_DC, TFT_MOSI, TFT_CLK, TFT_RST, TFT_MISO);
// analog and digital meter globals
float ltx = 0; // Saved x coord of bottom of needle
int16_t osx = 120, osy = 120; // Saved x & y coords
uint32_t updateTime = 0; // time for next update
int old_analog = -999; // Value last displayed
int old_digital = -999; // Value last displayed
void setup() {
Serial.begin(115200);
while (!Serial) delay(10);
Serial.println(“HX8357D Analog Meter!”);
tft.begin();
//check display bounds
int h = tft.height();
int w = tft.width();
char line[40];
snprintf(line, sizeof line, “default h %d w %d”, h, w);
Serial.println(line);
// initialize screen
tft.setRotation(1); // horizontal wide screen
h = tft.height(); //check if properly reassigned
w = tft.width();
tft.fillScreen( HX8357_BLACK );
tft.setCursor(0, 2);
tft.setTextColor(HX8357_GREEN);
tft.setTextSize(2);
snprintf(line, sizeof line, “Rot: 1 h %d w %d”, h, w);
tft.print(line);
delay(1000);
analogMeter();
// digitalMeter(); // Draw digital meter, needs work
}
void loop() {
if (updateTime <= millis()) {
updateTime = millis() + 500;
int reading = random(-50, 151); // Test with random values
plotNeedle(reading, 8); // Update analogue meter, 8ms delay per needle increment
// digital meter does display numbers, but needs work
// showDigital(reading); // Update digital reading
}
}
// #########################################################################
// Draw the analogue meter on the screen
// #########################################################################
void analogMeter()
{
// Meter outline
#define HX8357_GREY 0x5AEB
tft.fillRect(0, 0, 259, 126, HX8357_GREY); //239, 230
tft.fillRect(5, 3, 250, 119, HX8357_WHITE);
tft.setTextColor(HX8357_BLACK); // Text colour
// Draw ticks every 5 degrees from -50 to +50 degrees (100 deg. FSD swing)
for (int i = -50; i < 51; i += 5) {
// Long scale tick length
int tl = 15;
float dtr = PI / 180.0;
// Coodinates of tick to draw
float sx = cos((i - 90) * dtr);
float sy = sin((i - 90) * dtr);
int16_t x0 = sx * (100 + tl) + 120;
int16_t y0 = sy * (100 + tl) + 140;
int16_t x1 = sx * 100 + 120;
int16_t y1 = sy * 100 + 140;
// Coordinates of next tick for zone fill
float sx2 = cos((i + 5 - 90) * dtr);
float sy2 = sin((i + 5 - 90) * dtr);
int x2 = sx2 * (100 + tl) + 120;
int y2 = sy2 * (100 + tl) + 140;
int x3 = sx2 * 100 + 120;
int y3 = sy2 * 100 + 140;
// Green zone limits
if (i >= 0 && i < 25) { //center to 3/4
tft.fillTriangle(x0, y0, x1, y1, x2, y2, HX8357_GREEN);
tft.fillTriangle(x1, y1, x2, y2, x3, y3, HX8357_GREEN);
}
// Yellow zone limits
if (i >= 25 && i < 50) { //3/4 to full
tft.fillTriangle(x0, y0, x1, y1, x2, y2, HX8357_YELLOW);
tft.fillTriangle(x1, y1, x2, y2, x3, y3, HX8357_YELLOW);
}
// Short scale tick length
if (i % 25 != 0) tl = 8;
// Recalculate coords incase tick lenght changed
x0 = sx * (100 + tl) + 120;
y0 = sy * (100 + tl) + 140;
x1 = sx * 100 + 120;
y1 = sy * 100 + 140;
// Draw tick
tft.drawLine(x0, y0, x1, y1, HX8357_BLACK);
// Check if labels should be drawn, with position tweaks
if (i % 25 == 0) {
// Calculate label positions
x0 = sx * (100 + tl + 10) + 120;
y0 = sy * (100 + tl + 10) + 140;
tft.setTextSize(2);
switch (i / 25) {
case -2: tft.setCursor(x0, y0 - 12); tft.print("0"); break;
case -1: tft.setCursor(x0, y0 - 9); tft.print("25"); break;
case 0: tft.setCursor(x0, y0 - 6); tft.print("50"); break;
case 1: tft.setCursor(x0, y0 - 9); tft.print("75"); break;
case 2: tft.setCursor(x0 - 5, y0 - 12); tft.print("100"); break;
}
}
// Now draw the arc of the scale
sx = cos((i + 5 - 90) * dtr);
sy = sin((i + 5 - 90) * dtr);
x0 = sx * 100 + 120;
y0 = sy * 100 + 140;
// Draw scale arc, don't draw the last part
if (i < 50) tft.drawLine(x0, y0, x1, y1, HX8357_BLACK);
}
// tft.drawString(“%RH”, 5 + 230 - 40, 119 - 20, 2); // Units at bottom right
// tft.drawCentreString(“%RH”, 120, 70, 4); // Comment out to avoid font 4
tft.drawRect(5, 3, 250, 119, HX8357_BLACK); // Draw bezel line (230)
plotNeedle(0, 0); // Put meter needle at 0
}
// #########################################################################
// Update needle position
// This function is blocking while needle moves, time depends on ms_delay
// 10ms minimises needle flicker if text is drawn within needle sweep area
// Smaller values OK if text not in sweep area, zero for instant movement but
// does not look realistic… (note: 100 increments for full scale deflection)
// #########################################################################
void plotNeedle(int value, byte ms_delay)
{
float dtr = PI / 180.0;
tft.setTextColor(HX8357_BLACK, HX8357_WHITE);
if (value < -10) value = -10; // Limit value to emulate needle end stops
if (value > 110) value = 110;
// Move the needle util new value reached
while (!(value == old_analog)) {
if (old_analog < value) old_analog++;
else old_analog–;
if (ms_delay == 0) old_analog = value; // Update immediately id delay is 0
float sdeg = map(old_analog, -10, 110, -150, -30); // Map value to angle
// Calculate tip of needle coords
float sx = cos(sdeg * dtr);
float sy = sin(sdeg * dtr);
// Calculate x delta of needle start (does not start at pivot point)
float tx = tan((sdeg + 90) * dtr);
// Erase old needle image
tft.drawLine(120 + 20 * ltx - 1, 140 - 20, osx - 1, osy, HX8357_WHITE);
tft.drawLine(120 + 20 * ltx, 140 - 20, osx, osy, HX8357_WHITE);
tft.drawLine(120 + 20 * ltx + 1, 140 - 20, osx + 1, osy, HX8357_WHITE);
// Store new needle end coords for next erase
ltx = tx;
osx = sx * 98 + 120;
osy = sy * 98 + 140;
// Draw the needle in the new postion, magenta makes needle a bit bolder
// draws 3 lines to thicken needle
tft.drawLine(120 + 20 * ltx - 1, 140 - 20, osx - 1, osy, HX8357_RED);
tft.drawLine(120 + 20 * ltx, 140 - 20, osx, osy, HX8357_MAGENTA);
tft.drawLine(120 + 20 * ltx + 1, 140 - 20, osx + 1, osy, HX8357_RED);
// Slow needle down slightly as it approaches new postion
if (abs(old_analog - value) < 10) ms_delay += ms_delay / 5;
// Wait before next update
delay(ms_delay);
}
}
/* the code below compiles and works, but meter frame constants need updating for new character scales
// #########################################################################
// Draw 3 digit digital meter with faint 7 segment image
// #########################################################################
void digitalMeter()
{
int xpos = 118, ypos = 134; // was 134
tft.fillRect(xpos - 52, ypos - 5, 2 * 54, 59, HX8357_GREY);
tft.fillRect(xpos - 49, ypos - 2, 2 * 51, 53, HX8357_BLACK);
tft.setTextColor(7 << 11, HX8357_BLACK); // Plot over numbers in dim red
tft.setCursor(xpos - 48, ypos + 1); tft.setTextSize(6); tft.print(“888”);
}
// #########################################################################
// Update digital meter reading
// #########################################################################
void showDigital(int value)
{
if (value == old_digital) return; // return if no change to prevent flicker
if (value < 0) value = 0; //Constrain lower limit to 0
if (value > 999) value = 999; //Constrain upper limit to 999
int xpos = 118, ypos = 134 + 1; // Position with location tweak
tft.setTextColor(7 << 11, HX8357_BLACK); // Plot over numbers in dim red
tft.setCursor(xpos - 47, ypos); tft.setTextSize(6); tft.print(“888”); //Erase old value
// Nb. 32 pixels wide +2 gap per digit
// Update with new value
tft.setTextColor(HX8357_RED); // Dont draw background to leave dim segments
if (value < 10) {
tft.setCursor(xpos + 19, ypos);
tft.setTextSize(6);
tft.print(value);
}
else if (value < 100) {
tft.setCursor(xpos - 14, ypos);
tft.setTextSize(6);
tft.print(value);
}
else {
tft.setCursor(xpos - 47, ypos);
tft.setTextSize(6);
tft.print(value);
}
old_digital = value;
}
*/
/>
it’s why we are all here and WE all have something to offer hopefully.
PJ
