Hi all,

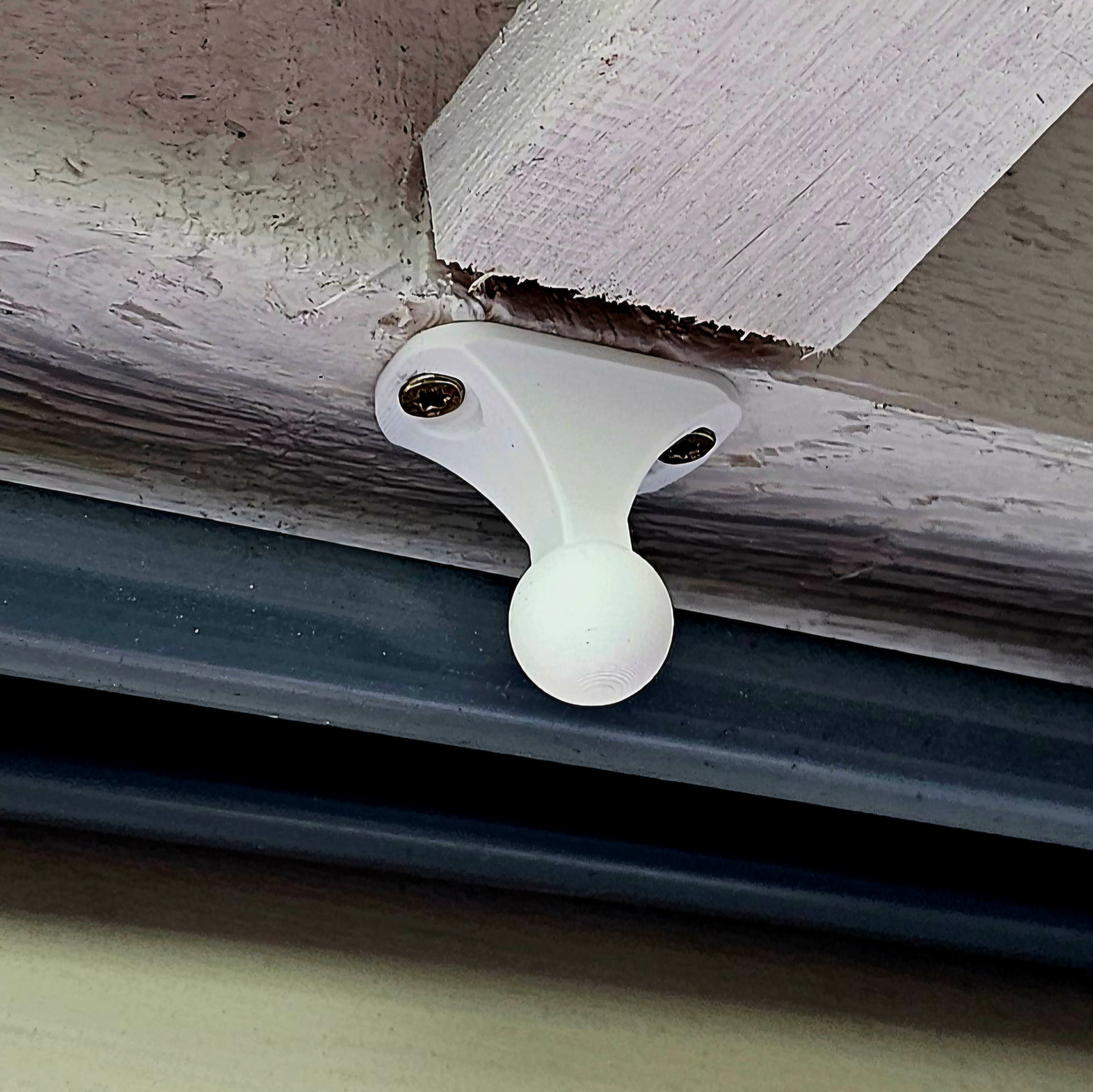

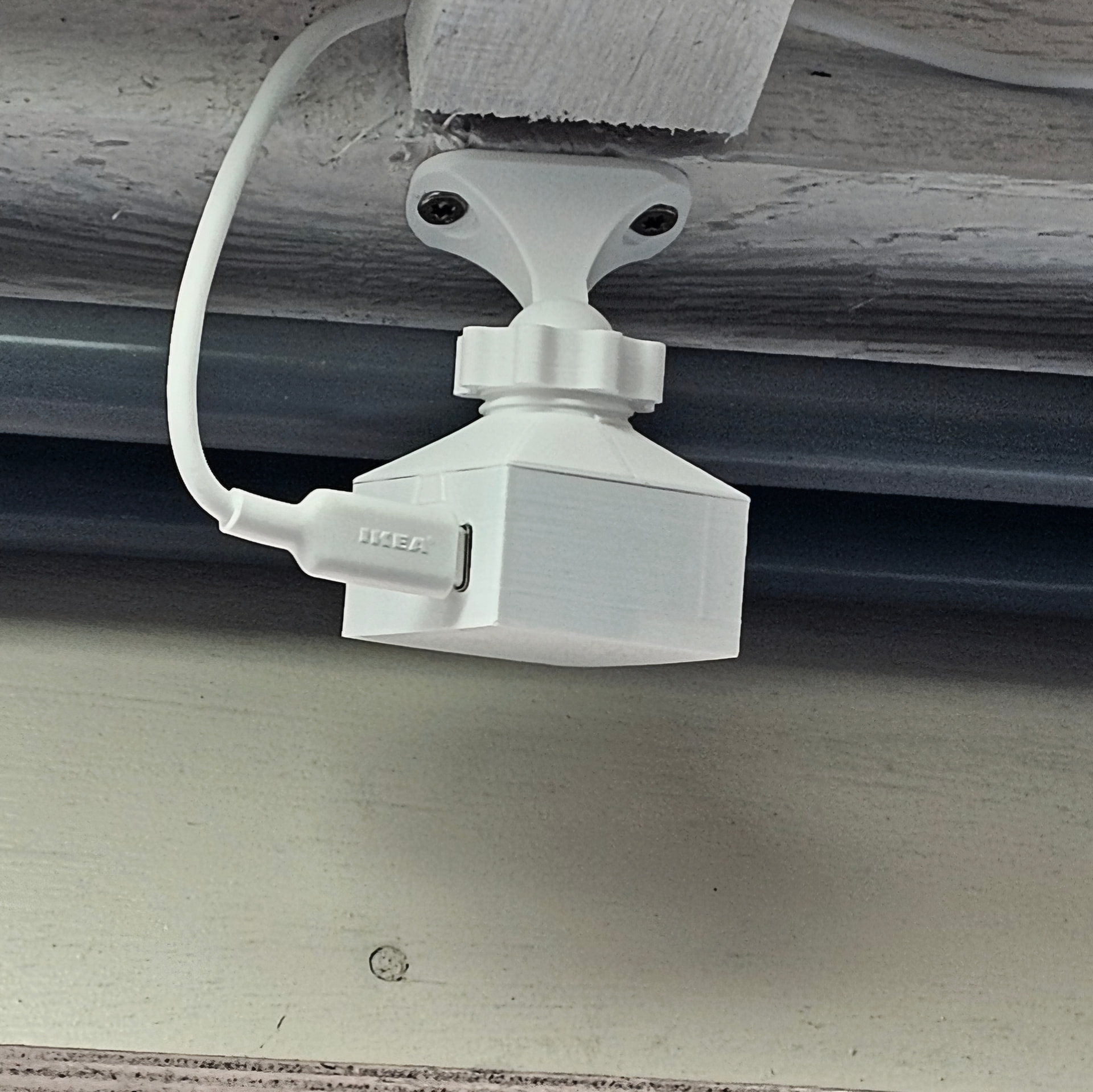

I have created a toolless, hardwareless and supportless, 14gram filament housing.

You can download it here:

https://makerworld.com/en/models/2300646-esp32c3-seeed-xiao-24ghz-mmwave-sensorhousing#profileId-2510915

Don’t hesitate if you have any questions!

2 Likes
2

:grinning_face_with_smiling_eyes: :oncoming_fist:

WIN_20260127_02_40_57_Pro
WIN_20260127_02_40_57_Pro1920×1080 330 KB

WIN_20260127_02_41_23_Pro
WIN_20260127_02_41_23_Pro1920×1080 237 KB

WIN_20260127_02_42_56_Pro
WIN_20260127_02_42_56_Pro1920×1080 296 KB

WIN_20260127_02_45_13_Pro
WIN_20260127_02_45_13_Pro1920×1080 231 KB

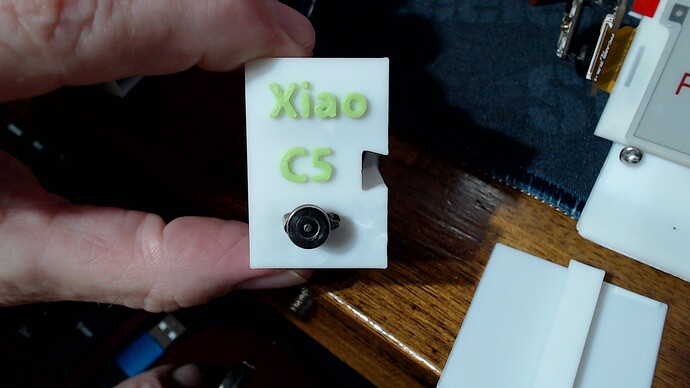

WIN_20260127_02_45_23_Pro
WIN_20260127_02_45_23_Pro1920×1080 212 KB

Printing Now!
A tweak and Bump…Goldie Locks :+1:
C3, S3+Lora, C5, C6, Nrf54, Nrf52. GridFinity of Xiao’s :grin:

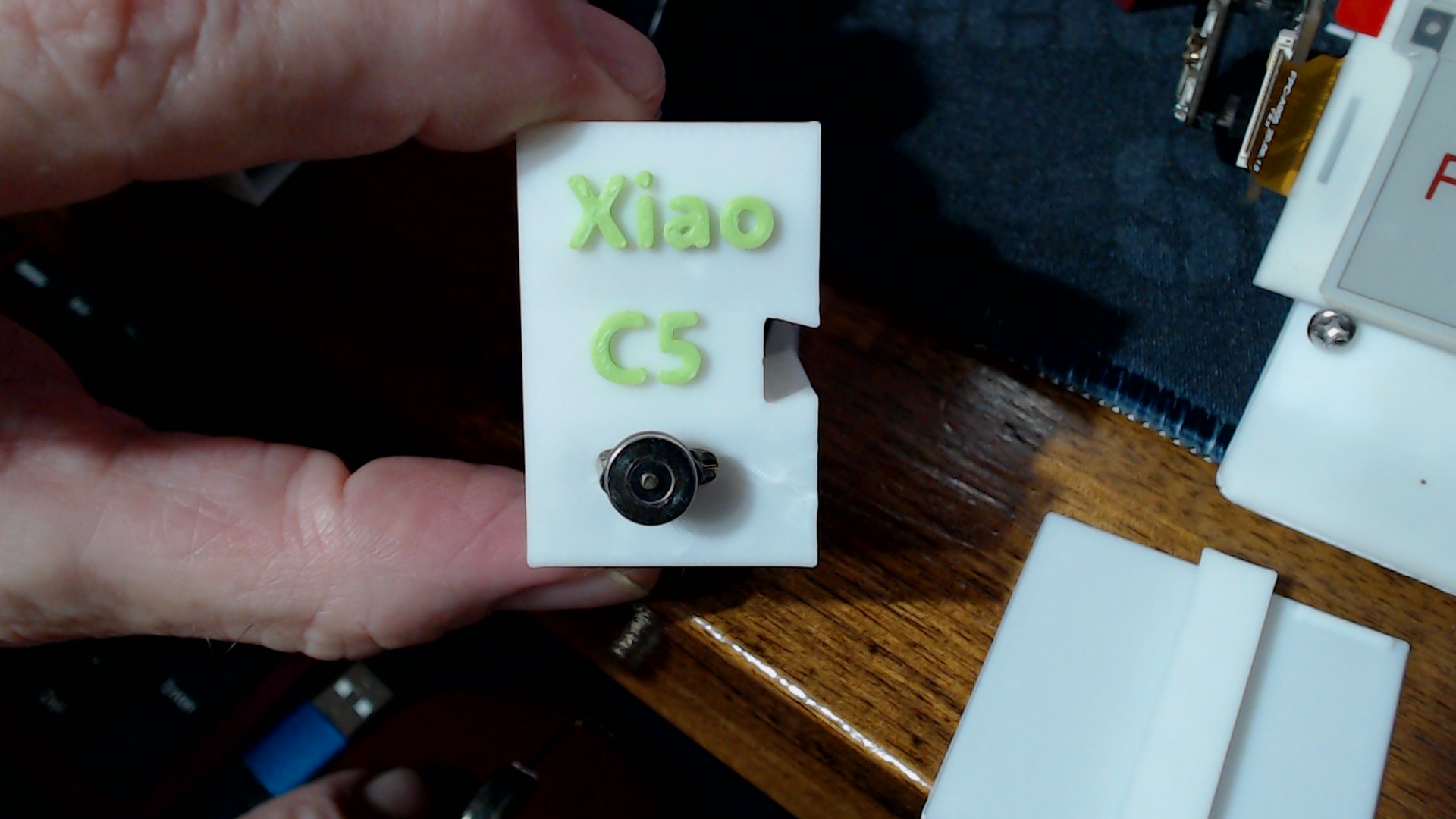

Magnetic Charging :magnet:

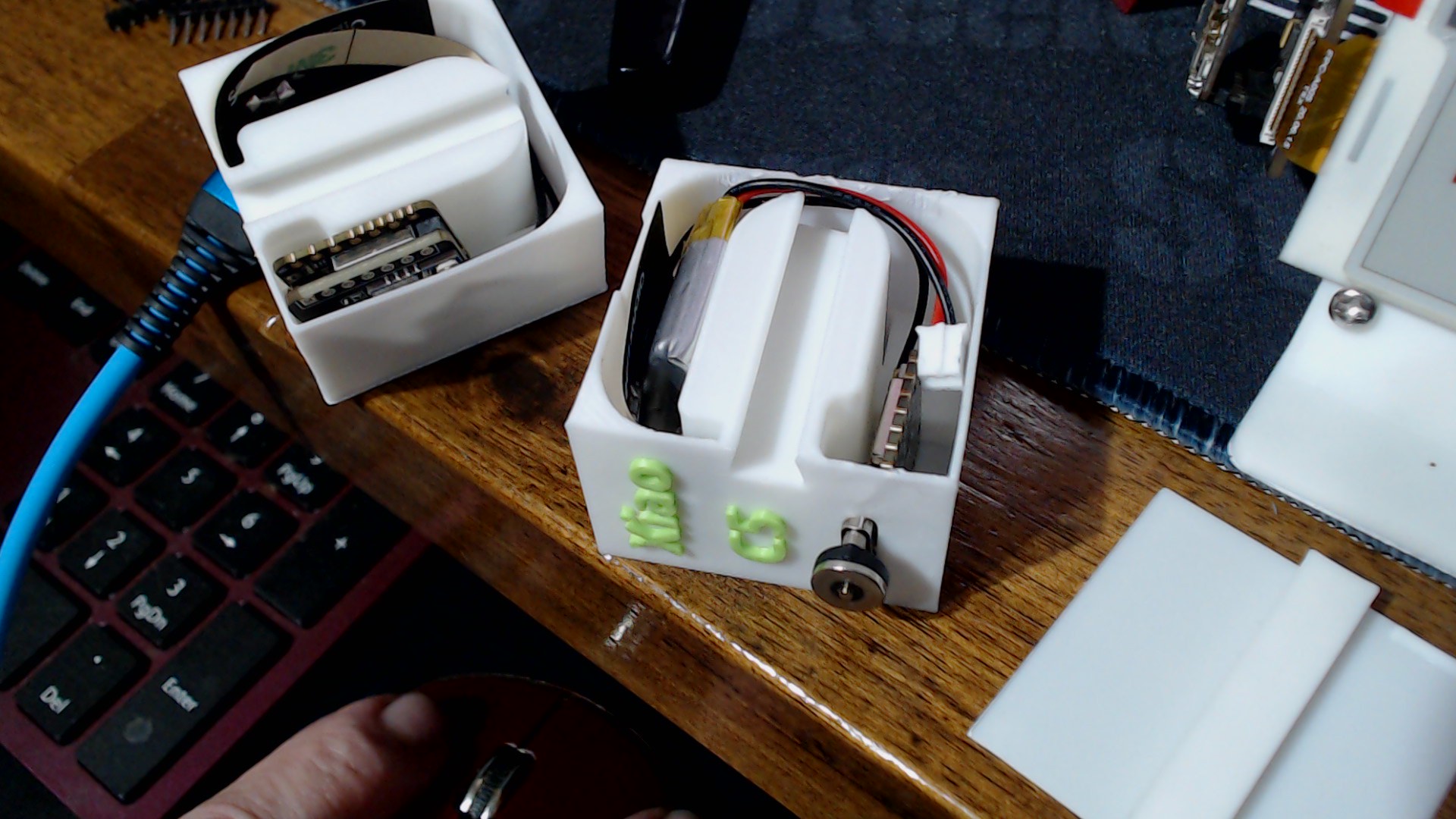

Small Battery Included…:star_struck:
Thanks for the Push..

GL :slight_smile: PJ :v:

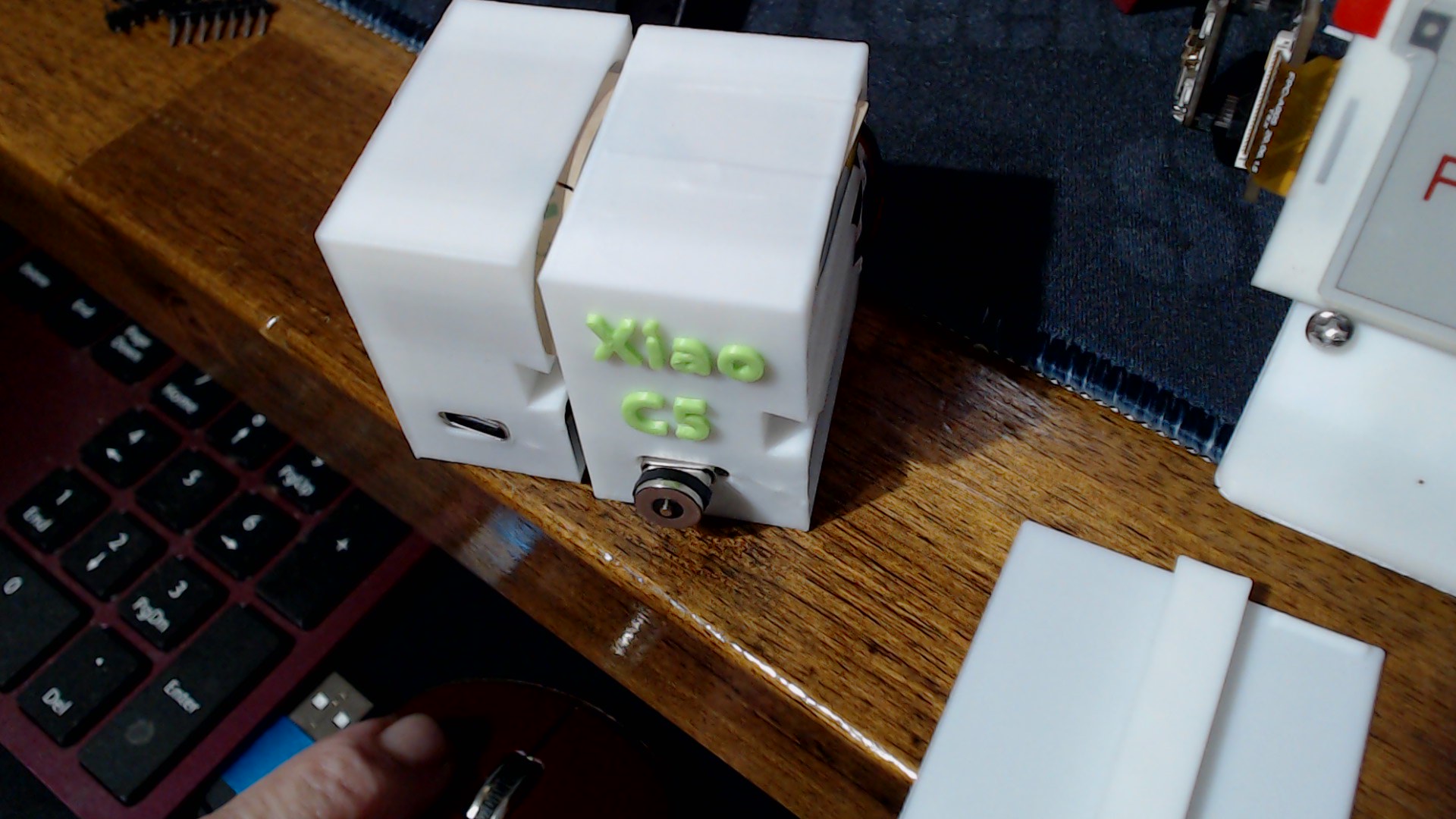

Xiao Cluster… :grin:

WIN_20260127_10_04_34_Pro
WIN_20260127_10_04_34_Pro1920×1080 263 KB

after LUNCH…

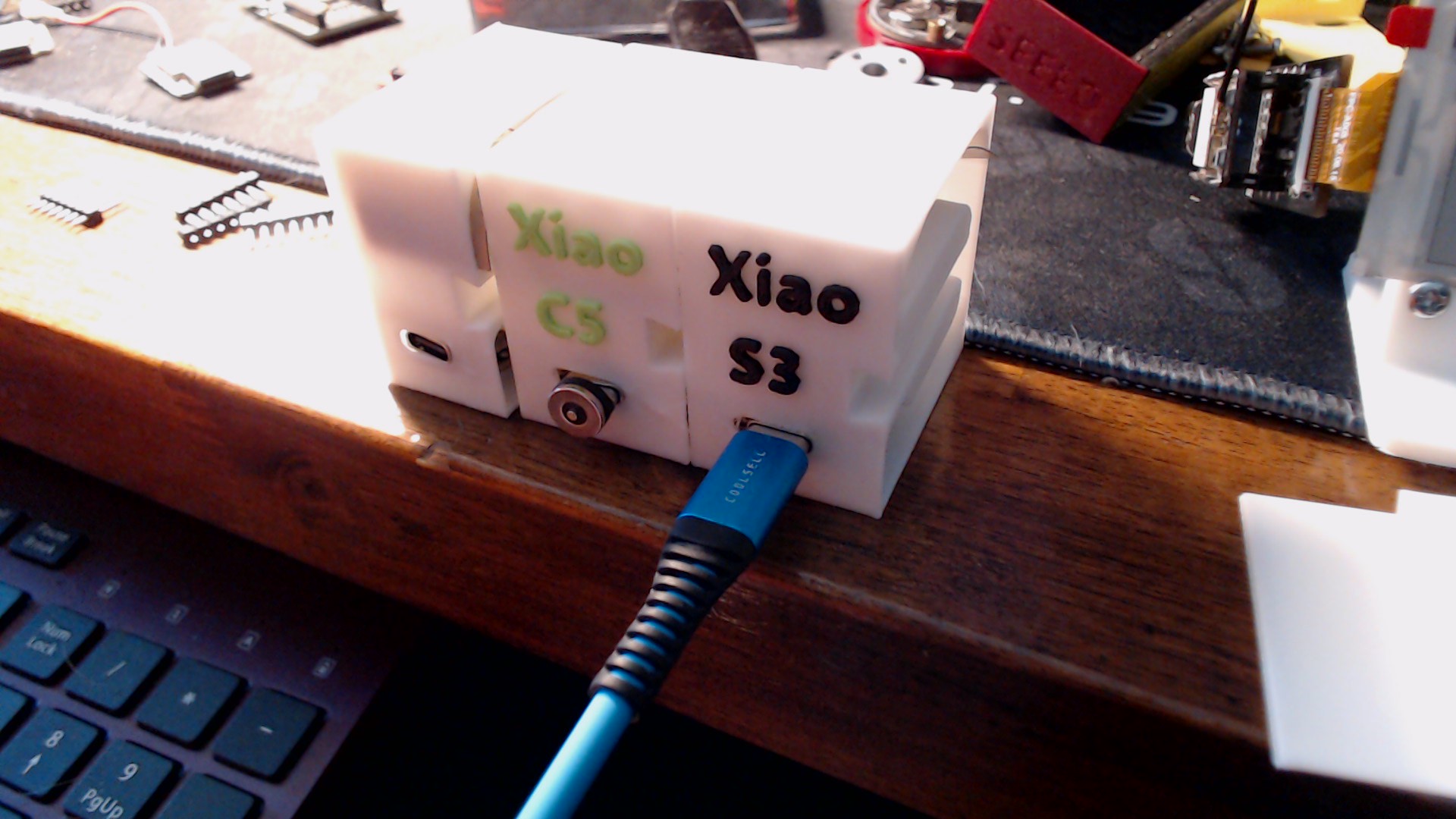

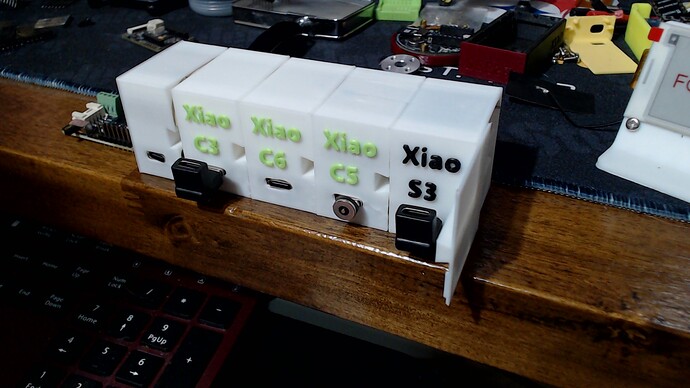

The XIAO Cluster has grown..
:grin:
WIN_20260127_21_22_03_Pro
WIN_20260127_21_22_03_Pro1920×1080 286 KB

2 Likes
3

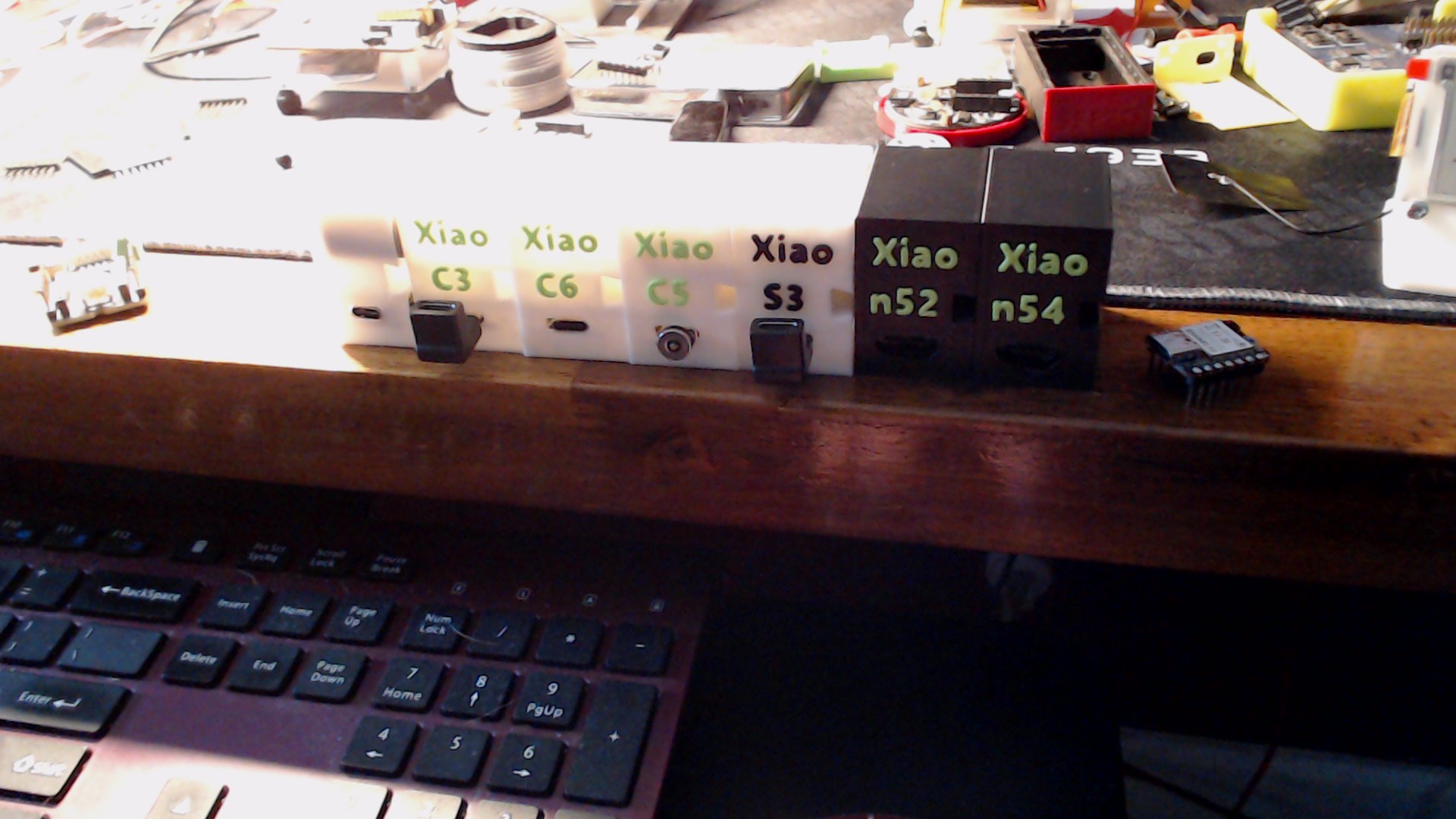

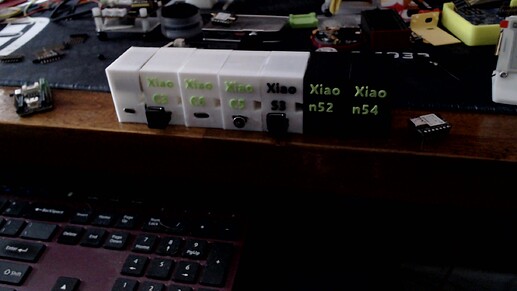

Added the Nrf’s to the fam, Now we got the “Super Cluster”

WIN_20260128_10_18_24_Pro
WIN_20260128_10_18_24_Pro1920×1080 270 KB

WIN_20260128_10_18_10_Pro
WIN_20260128_10_18_10_Pro1920×1080 179 KB

:grin:
GL :slight_smile: PJ :v:

1 Like
4

That is amazing!!! Happy to see it in use :slight_smile:

5

Hi there,

Yes, You got a good one right here, as is or I would make these suggestions.

  1. Make the lid, slide to the rear. The use of the dovetail is brilliant… It’s tight too. you could graduate it or even chamfer the end to make it easier.. as it opens. The end catch tab requires the panel to bend. make it a NUB :grin: I had to increase the wall thickness also or they are fragile.
  2. add a hole into the center cavity for an LED or add some geomerty that acts as a light pipe to the front middle section

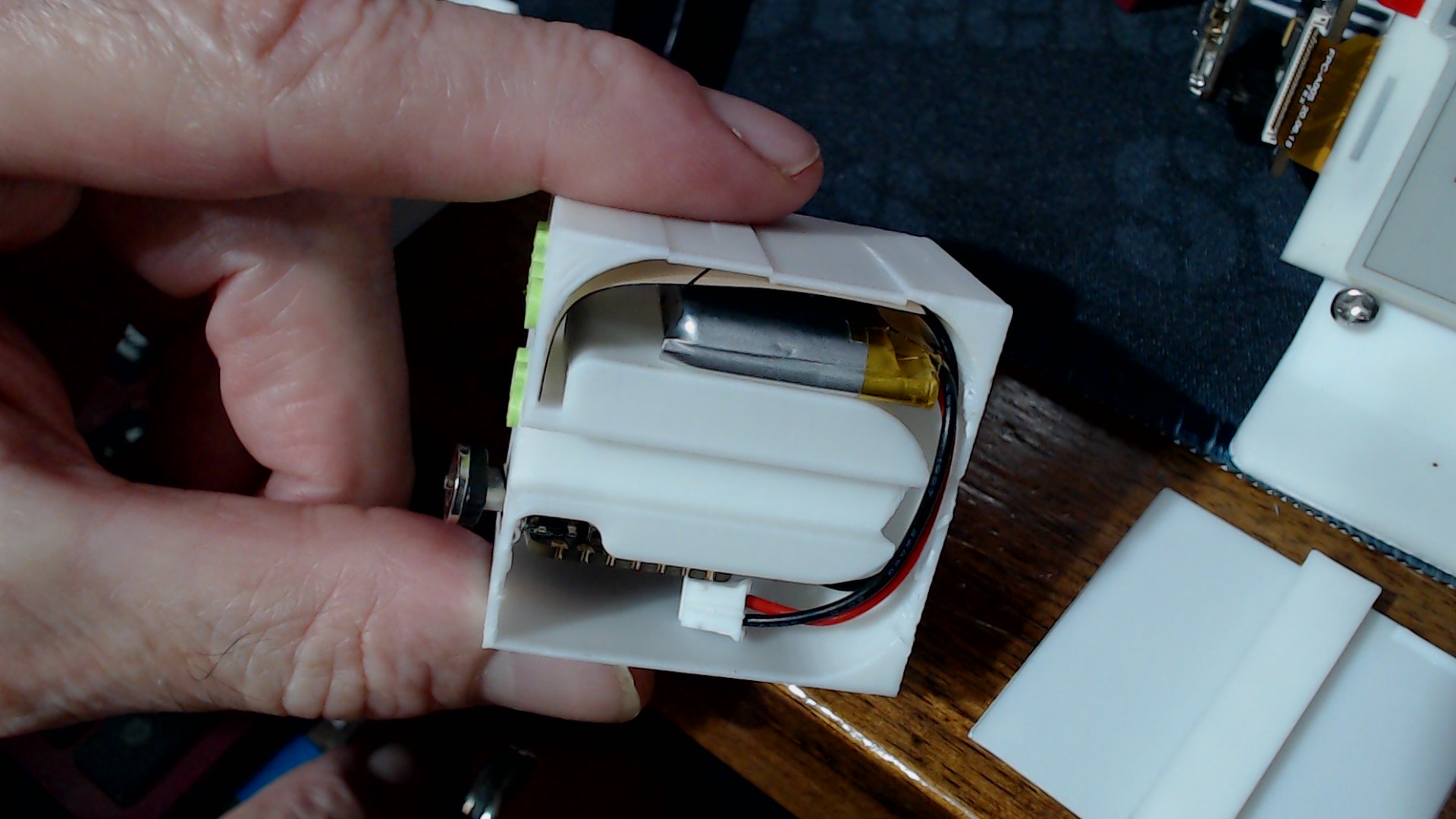

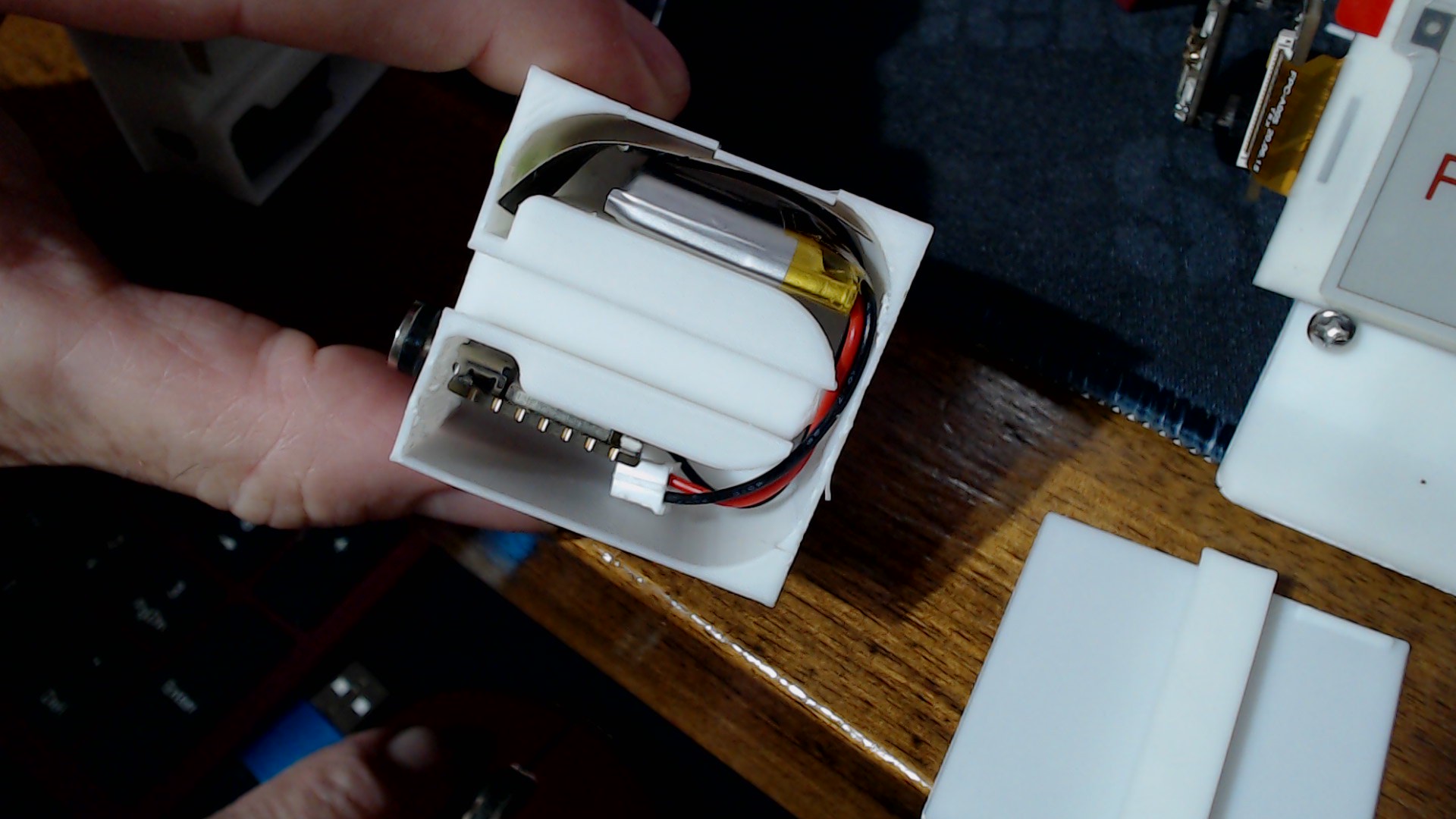

  3. Just a TAD wider as you see I did to fit the super small battery :+1:

all in all pretty cool. :grin:

WIN_20260128_12_38_22_Pro
WIN_20260128_12_38_22_Pro1920×1080 289 KB

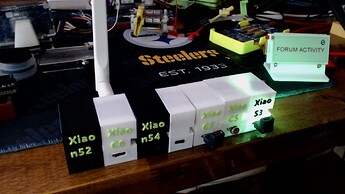

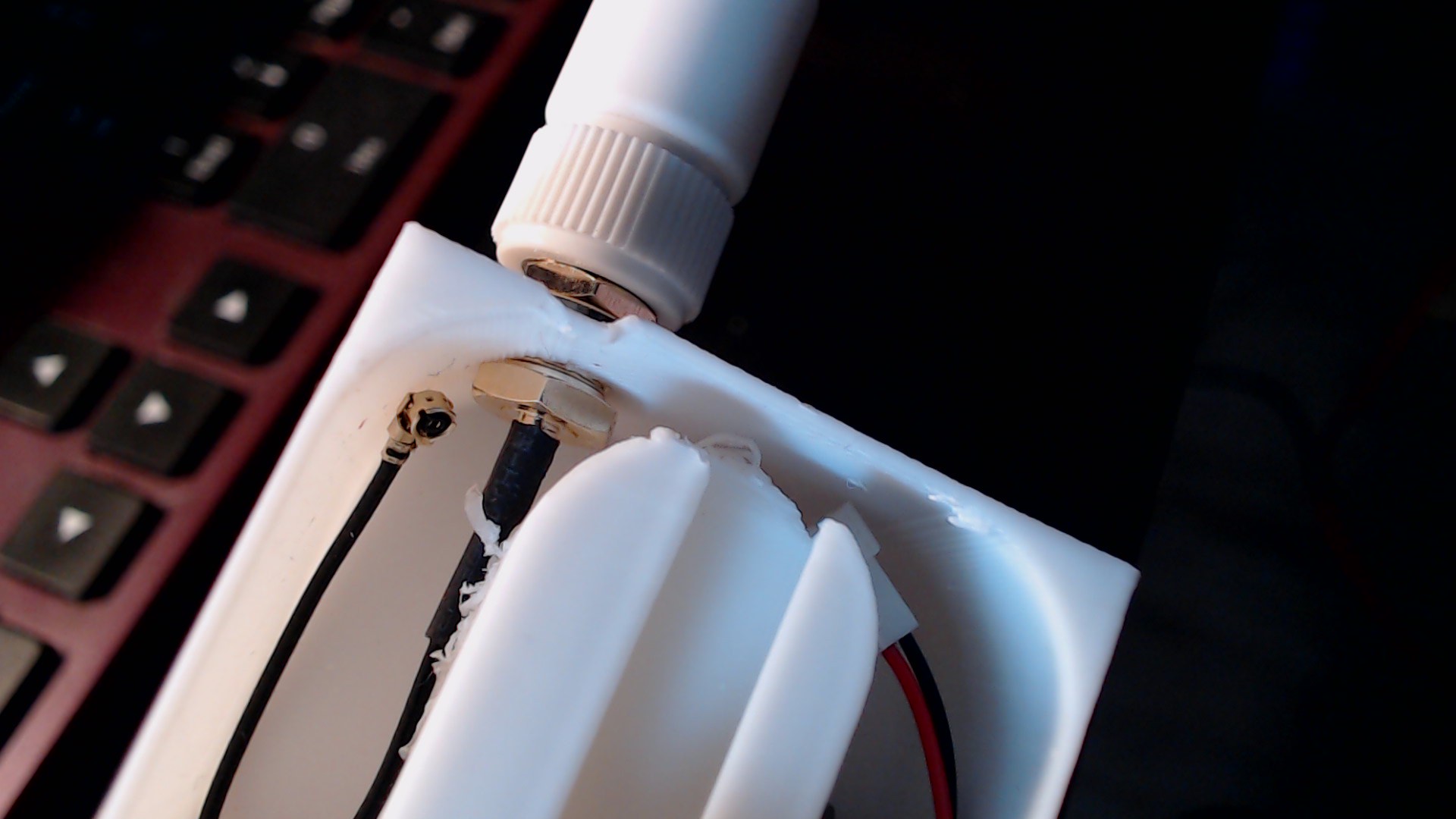

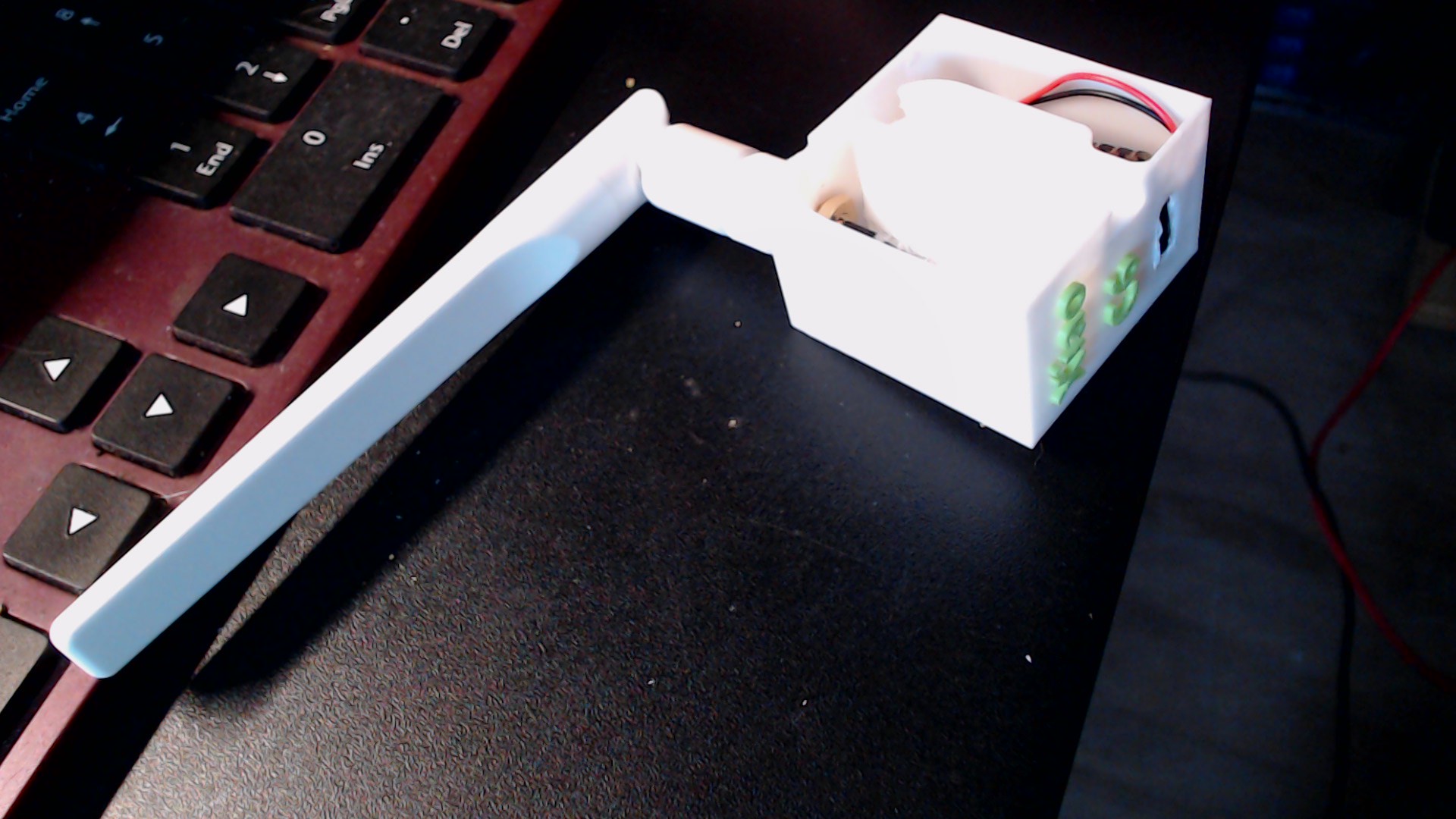

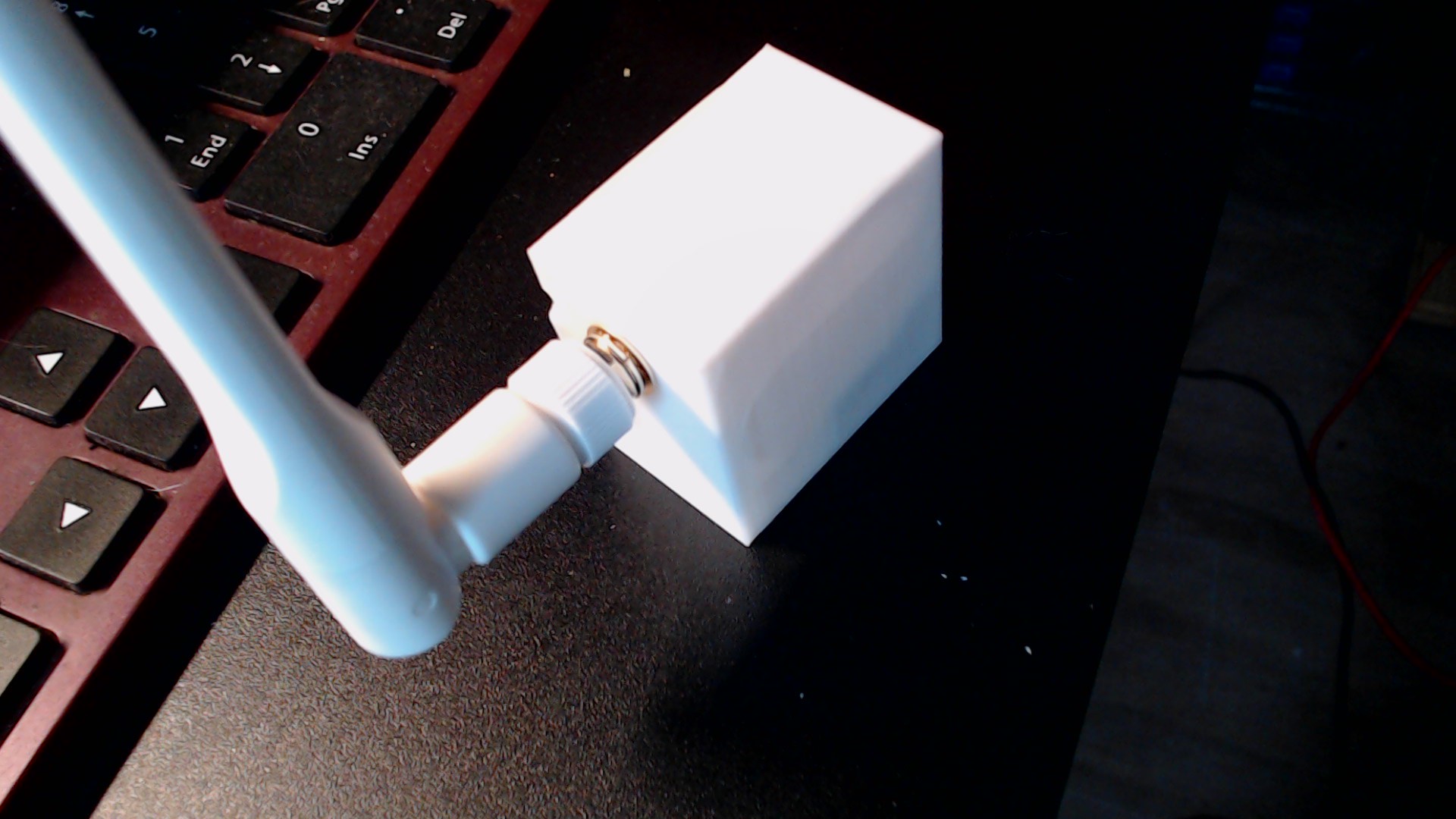

Had to add an external Antenna for LR testing :wink:
WIN_20260128_12_39_33_Pro
WIN_20260128_12_39_33_Pro1920×1080 226 KB

WIN_20260128_12_40_19_Pro
WIN_20260128_12_40_19_Pro1920×1080 151 KB

WIN_20260128_12_41_02_Pro
WIN_20260128_12_41_02_Pro1920×1080 270 KB

WIN_20260128_12_48_19_Pro
WIN_20260128_12_48_19_Pro1920×1080 267 KB

GL :slight_smile: PJ :v:

6

omg… you are going to need a new shelf… elf

7

I can make a v2. How much wider should it be? do you have a sketch or example what you mean with the LED?

8

Hi there,

I stretched it (scale) in the slicer
:v:

6f2d3c776b5e242b03414fd1d95669d2070a1442_2_1380x7761
6f2d3c776b5e242b03414fd1d95669d2070a1442_2_1380x77611380×776 136 KB

What I printed was originally (no logo) 21.49mm. on your X,(I printed standing with supports and a Brim) and then "PHATTY "26.5mm wide on the mod for the small battery.

The Center section , can be hollow and make an access hole into it :crossed_fingers:

Lose the dovetail in the front. (keeps it cleaner) Make the TOP slide out to the rear also is better. :+1:
You could turn the WHOLE Xiao 90 degrees and access the Buttons with plastic Paddle buttons in the LID(side), :blush:

The side walls need to be sturdier.. too thin on the STL above, I printed, Initially (first set of pics) Battery fits either orientation with stretched side, I increased wall thickness as well.

It’s a great Idea, to have a ready to Go, a Code ready Nugget for deployment. “Batteries Included” :grin: :+1:

HTH
GL :slight_smile: PJ :v:
