I got a reTerminal E1002 and thought I’d share my dashboard and ESPHome code. I also have a XIAO 7.5" ePaper Display and was able to use a lot of the code from that project.

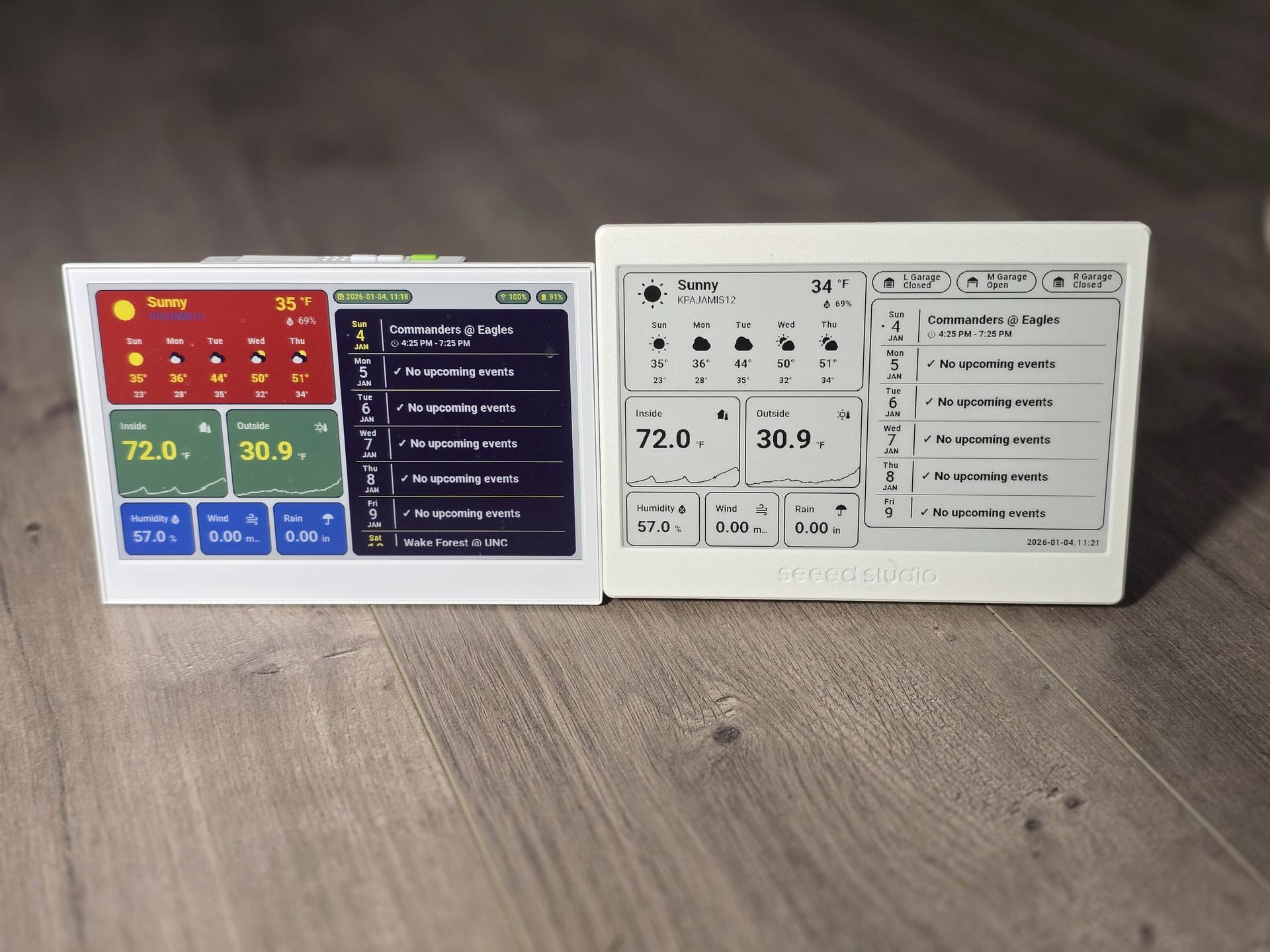

The E100x displays have a much better build (metal case) with programmable buttons, MicroSD card support, leds and buzzer. It also has battery status which was my biggest issue with the XIAO 7.5".

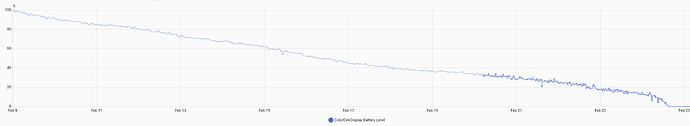

The biggest con to the E1002 (color version) is that the refresh takes a long time (sometimes 30 secs) because it looks like it flashes every color for every element. It flashes like crazy while doing the refresh. I don’t have and numbers yet, but it looks like the battery life is less that the B&W epaper. I’ll update this topic when I have a rough number of days.
I’m still messing with the colors. Haven’t settled on what works best yet.

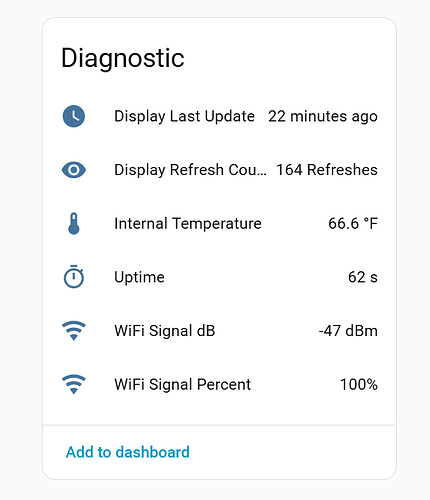

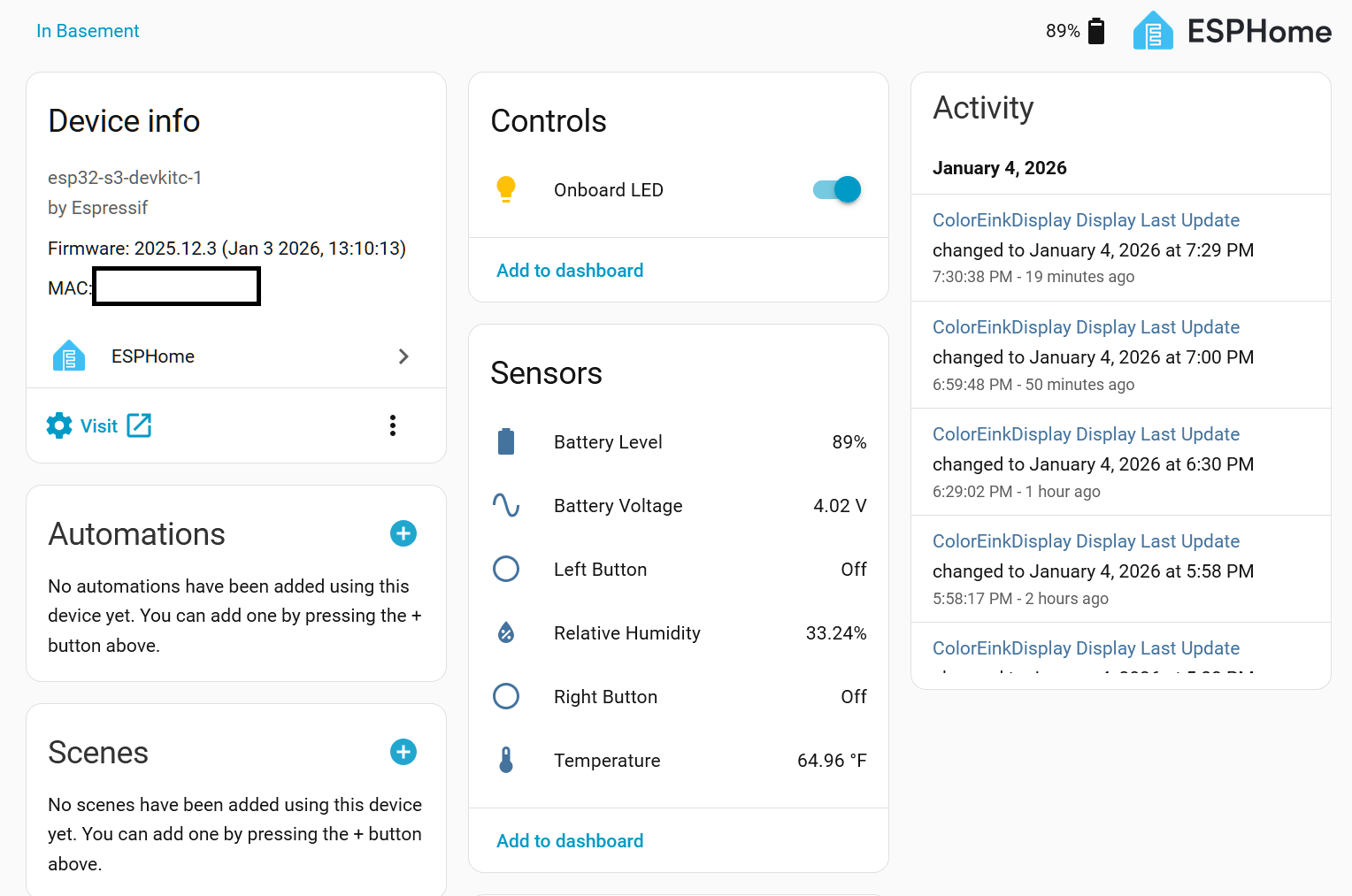

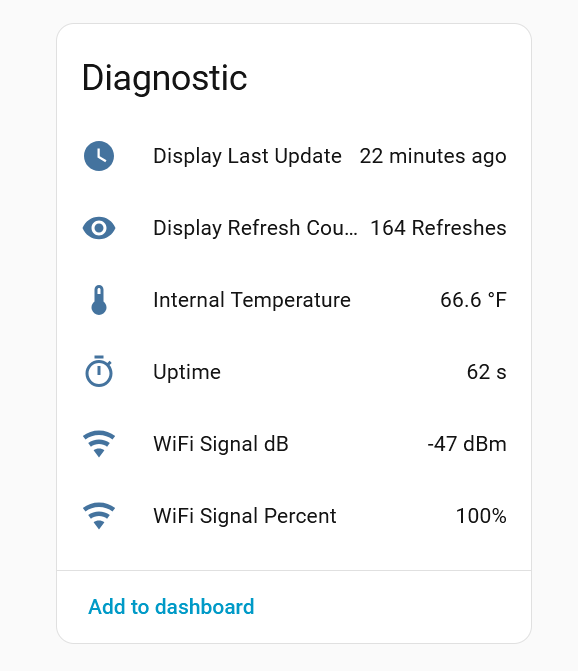

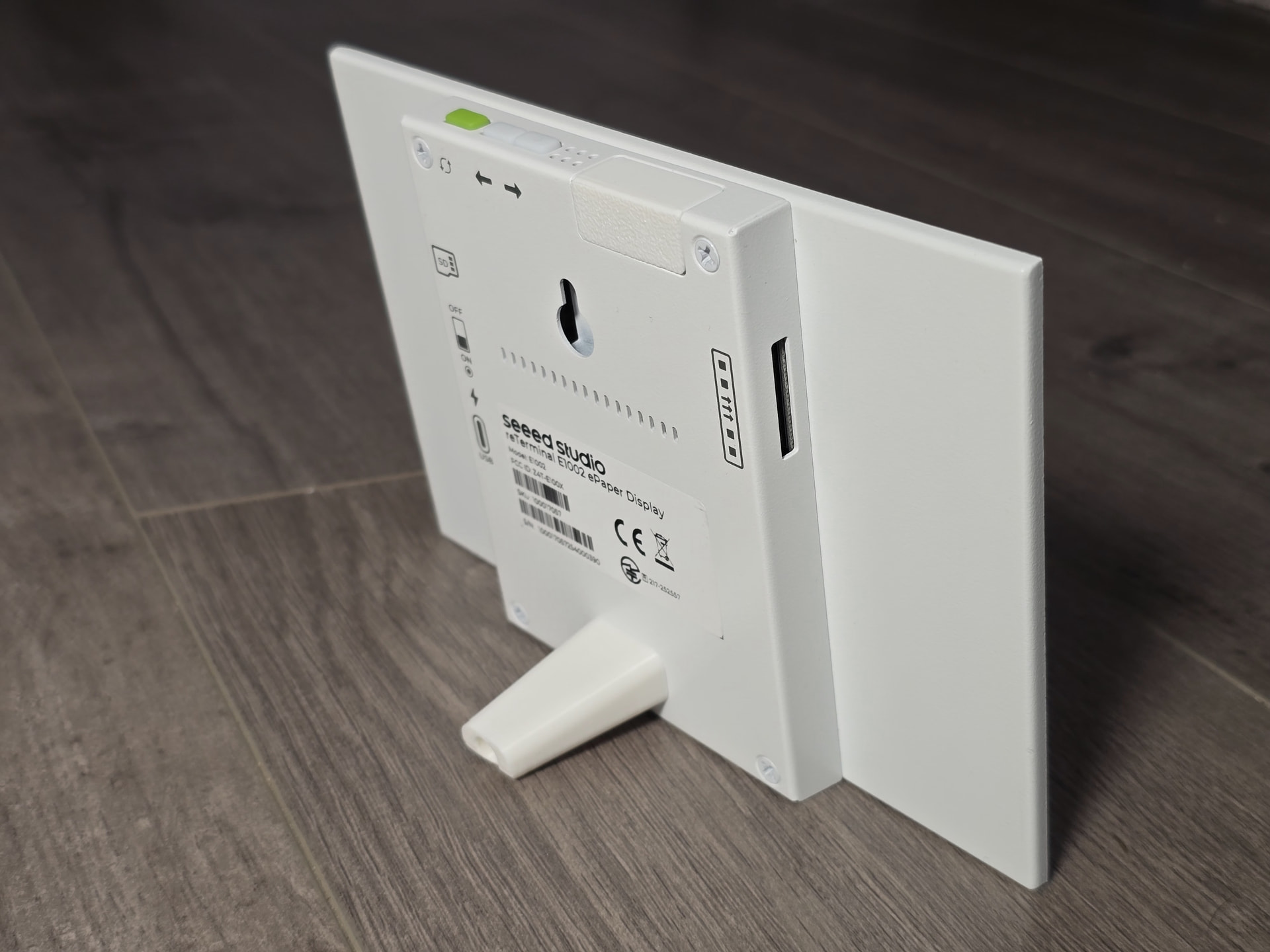

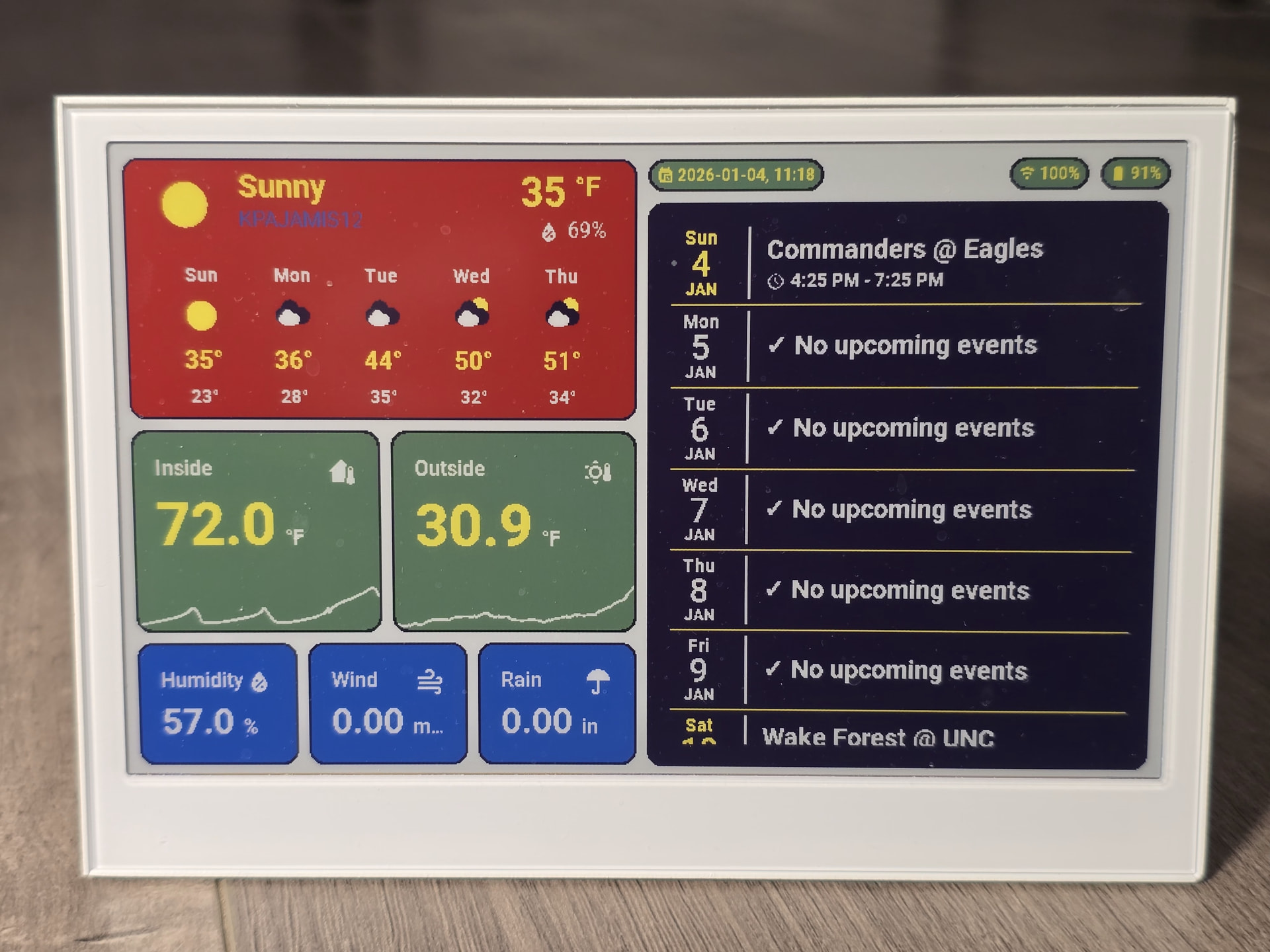

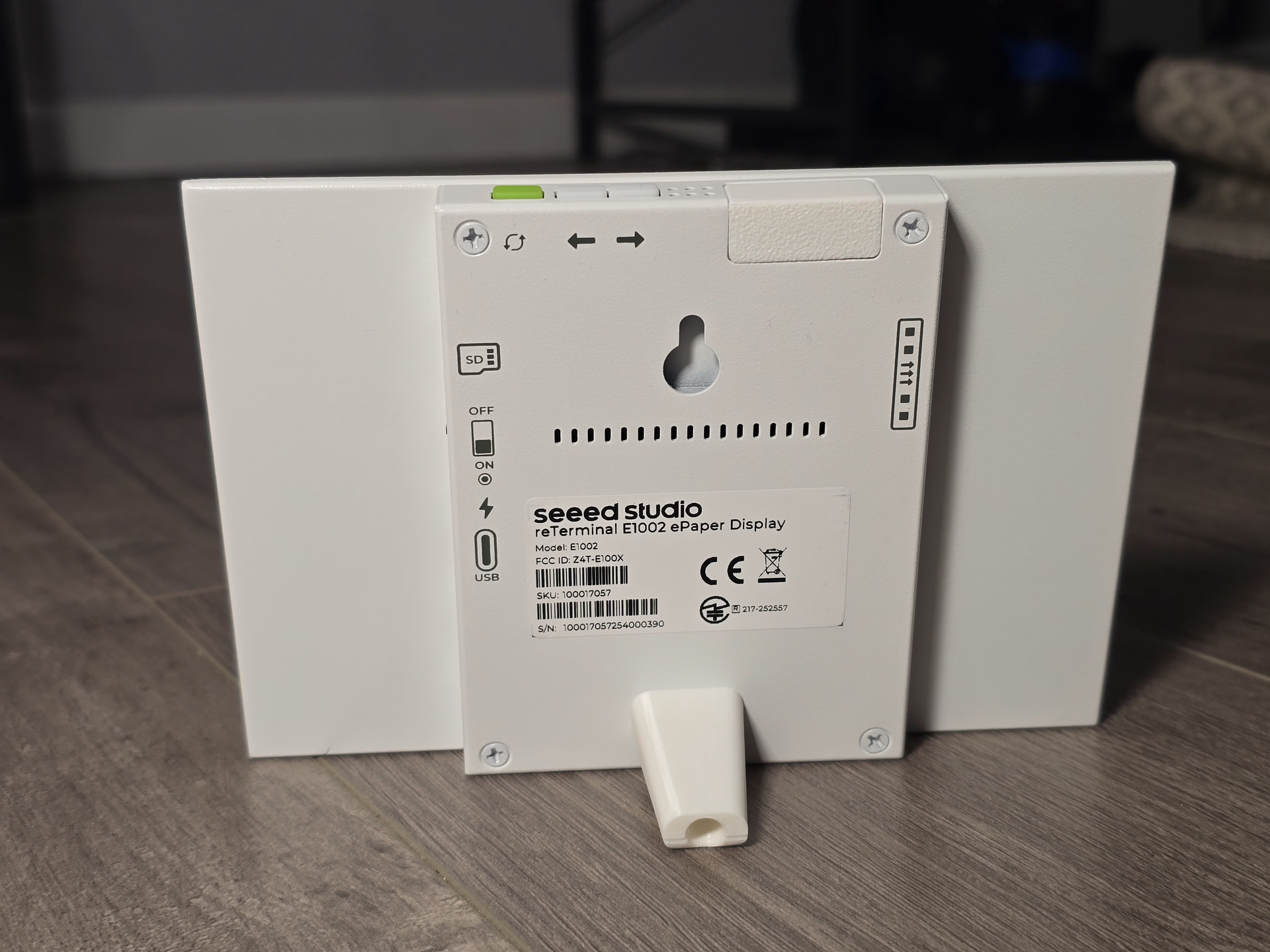

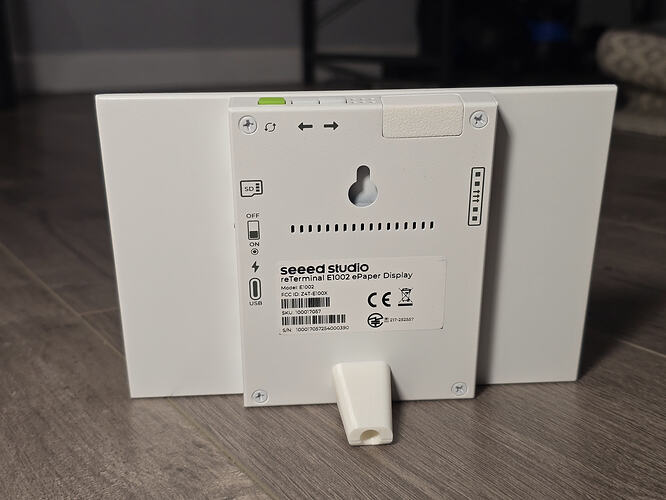

Pictures:
You will need the Puppet Addon.
ESPHome Builder YAML:
esphome:
name: reterminal-e1002
friendly_name: ColorEinkDisplay
on_boot:
- priority: 600
then:
- output.turn_on: bsp_sd_enable
- output.turn_on: bsp_battery_enable
- delay: 200ms
- component.update: battery_voltage
- component.update: battery_level
- priority: -100
then:
- logger.log: "*** Device woke up from deep sleep ***"
- light.turn_on: onboard_led
- delay: 1s
- logger.log: "*** Starting application ***"
esp32:
board: esp32-s3-devkitc-1
framework:
# type: arduino
type: esp-idf
# Enable logging
logger:
hardware_uart: UART0
# Enable Home Assistant API
api:
encryption:
key: "<Your API Key>"
on_client_connected:
- logger.log:
format: "*** Client %s connected to API with IP %s ***"
args: ["client_info.c_str()", "client_address.c_str()"]
ota:
- platform: esphome
password: "<Your OTA PW>"
wifi:
ssid: !secret wifi_ssid
password: !secret wifi_password
min_auth_mode: WPA2
on_connect:
then:
- lambda: |-
id(wifi_status) = 1;
- logger.log: "*** WiFi Connected Successfully! ***"
- delay: 1s
- component.update: dashboard_image
on_disconnect:
then:
- lambda: |-
id(wifi_status) = 0;
- logger.log: "*** WiFi Disconnected ***"
ap:
ssid: "ColoreInkFallbackHotspot"
password: "<Your Fallback Hotspot PW>"
psram:
mode: octal
speed: 80MHz
captive_portal:
globals:
- id: sleep_counter
type: int
restore_value: yes # Use RTC storage to maintain counter during sleep
initial_value: '0'
- id: battery_glyph
type: std::string
restore_value: no
initial_value: "\"\\U000F0079\"" # default full battery
- id: wifi_status
type: int
restore_value: no
initial_value: "0"
- id: recorded_display_refresh
type: int
restore_value: yes
initial_value: '0'
# Deep-sleep, wake by GPIO3
deep_sleep:
id: deep_sleep_1
run_duration: 120s # Device wake up and run 120s. This should not run for 120s because of other code
sleep_duration: 30min # deep sleep for 30m
wakeup_pin: GPIO3 # Green button
wakeup_pin_mode: INVERT_WAKEUP
# SPI bus for display
spi:
clk_pin: GPIO7
mosi_pin: GPIO9
# I2C bus for temperature and humidity sensor
i2c:
scl: GPIO20
sda: GPIO19
http_request:
verify_ssl: false
timeout: 20s
watchdog_timeout: 25s
online_image:
- id: dashboard_image
format: PNG
type: RGB565
buffer_size: 65536
url: http://192.168.1.101:10000/dashboard-robin/display-color?viewport=800x480&lang=en
# update_interval: 20s. # Not needed now
on_download_finished:
- component.update: epaper_display
- delay: 45s # Time to allow display to refresh
- deep_sleep.enter: deep_sleep_1
on_error:
- delay: 30s
- deep_sleep.enter: deep_sleep_1
display:
- platform: epaper_spi
id: epaper_display
model: Seeed-reTerminal-E1002
update_interval: never
lambda: |-
it.image(0, 0, id(dashboard_image));
# Home Assistant time
time:
- platform: homeassistant
id: ha_time
sensor:
- platform: wifi_signal # Reports the WiFi signal strength/RSSI in dB
update_interval: 60s
name: "WiFi Signal dB"
id: wifi_signal_db
entity_category: "diagnostic"
- platform: copy # Reports the WiFi signal strength in %
source_id: wifi_signal_db
name: "WiFi Signal Percent"
id: wifi_signal_percent
filters:
- lambda: return min(max(2 * (x + 100.0), 0.0), 100.0);
unit_of_measurement: "%"
entity_category: "diagnostic"
- platform: uptime
update_interval: 60s
name: Uptime
- platform: internal_temperature
update_interval: 60s
name: "Internal Temperature"
- platform: template
update_interval: 60s
name: "Display Last Update"
device_class: timestamp
entity_category: "diagnostic"
id: display_last_update
lambda: 'return id(ha_time).now().timestamp;'
- platform: template
name: "Display Refresh Count"
accuracy_decimals: 0
unit_of_measurement: "Refreshes"
state_class: "total_increasing"
entity_category: "diagnostic"
lambda: 'return id(recorded_display_refresh) += 1;'
- platform: sht4x
update_interval: 60s
temperature:
name: "Temperature"
id: temp_sensor
humidity:
name: "Relative Humidity"
id: hum_sensor
- platform: adc
update_interval: 60s
pin: GPIO1
name: "Battery Voltage"
id: battery_voltage
attenuation: 12db
filters:
- multiply: 2.0
- platform: template
update_interval: 60s
name: "Battery Level"
id: battery_level
unit_of_measurement: "%"
icon: "mdi:battery"
device_class: battery
state_class: measurement
lambda: 'return id(battery_voltage).state;'
on_value:
then:
- lambda: |-
int pct = int(x);
if (pct <= 10) id(battery_glyph) = "\U000F007A";
else if (pct <= 20) id(battery_glyph) = "\U000F007B";
else if (pct <= 30) id(battery_glyph) = "\U000F007C";
else if (pct <= 40) id(battery_glyph) = "\U000F007D";
else if (pct <= 50) id(battery_glyph) = "\U000F007E";
else if (pct <= 60) id(battery_glyph) = "\U000F007F";
else if (pct <= 70) id(battery_glyph) = "\U000F0080";
else if (pct <= 80) id(battery_glyph) = "\U000F0081";
else if (pct <= 90) id(battery_glyph) = "\U000F0082";
else id(battery_glyph) = "\U000F0079";
filters:
- calibrate_linear:
- 4.15 -> 100.0
- 3.96 -> 90.0
- 3.91 -> 80.0
- 3.85 -> 70.0
- 3.80 -> 60.0
- 3.75 -> 50.0
- 3.68 -> 40.0
- 3.58 -> 30.0
- 3.49 -> 20.0
- 3.41 -> 10.0
- 3.30 -> 5.0
- 3.27 -> 0.0
- clamp:
min_value: 0
max_value: 100
# Button configuration
binary_sensor:
# - platform: gpio
# pin:
# number: GPIO3 # Green button, commented out because I'm using it for wakeup
# mode: INPUT_PULLUP
# inverted: true
# id: button_1
# name: "Green Button"
# on_press:
# then:
# - logger.log: "*** Green Button (GPIO3) Pressed ***"
- platform: gpio
pin:
number: GPIO4 # Right white button
mode: INPUT_PULLUP
inverted: true
id: button_2
name: "Right Button"
on_press:
then:
- logger.log: "*** Right Button (GPIO4) Pressed ***"
- platform: gpio
pin:
number: GPIO5 # Left white button
mode: INPUT_PULLUP
inverted: true
id: button_3
name: "Left Button"
on_press:
then:
- logger.log: "*** Left Button (GPIO5) Pressed ***"
output:
- platform: gpio
pin: GPIO6
id: bsp_led
inverted: true
- platform: gpio
pin: GPIO16
id: bsp_sd_enable
- platform: gpio
pin: GPIO21
id: bsp_battery_enable
# Onboard LED
light:
- platform: binary
name: "Onboard LED"
output: bsp_led
id: onboard_led
Home Assistant Dashboard YAML:
type: masonry
path: display-color
title: Display-Color
cards:
- type: vertical-stack
cards:
- show_current: true
show_forecast: true
type: weather-forecast
entity: weather.kpajamis12
forecast_type: daily
secondary_info_attribute: humidity
card_mod:
style: |
:host {
--weather-icon-cloud-front-color: white;
--weather-icon-cloud-back-color: black;
--weather-icon-sun-color: yellow;
--weather-icon-rain-color: blue;
--weather-icon-moon-color: yellow;
}
ha-card {
border: 2px solid black;
padding: 5px !important;
background: red;
}
.name-state .name {
color: blue;
font-size: 16px;
}
.name-state .state {
color: yellow;
font-weight: bold;
}
.temp-attribute .temp {
color: yellow;
font-weight: bold;
font-size: 30px !important;
}
.temp-attribute .temp span {
color: yellow;
font-size: 20px !important;
}
.temp-attribute .attribute {
color: white;
font-size: 16px;
}
.forecast .temp {
color: yellow;
font-weight: bold;
font-size: 14px;
}
.forecast .templow {
color: white;
font-weight: bold;
font-size: 14px;
}
.forecast div {
font-weight: bold;
color: white;
}
ha-card div.forecast div.temp {
font-size: 14pt;
}
- type: horizontal-stack
cards:
- graph: line
type: sensor
detail: 2
entity: sensor.home_thermostat_air_temperature
name: Inside
icon: mdi:home-thermometer
hours_to_show: 12
card_mod:
style: |
.header .icon {
color: white;
}
ha-card {
border: 2px solid black;
--primary-text-color: yellow;
font-weight: bold;
--secondary-text-color: white;
background: green;
--accent-color: white;
--ha-font-size-3xl: 46px;
}
- graph: line
type: sensor
detail: 2
name: Outside
icon: mdi:sun-thermometer-outline
hours_to_show: 12
entity: sensor.back_deck_temp_temperature
card_mod:
style: |
.header .icon {
color: white;
}
ha-card {
border: 2px solid black;
--primary-text-color: yellow;
font-weight: bold;
--secondary-text-color: white;
background: green;
--accent-color: white;
--ha-font-size-3xl: 46px;
}
- type: horizontal-stack
cards:
- graph: none
type: sensor
detail: 2
icon: ""
hours_to_show: 12
entity: sensor.back_deck_temp_humidity
name: Humidity
card_mod:
style: |
.header .icon {
color: white;
}
ha-card {
border: 2px solid black;
--primary-text-color: white;
font-weight: bold;
--secondary-text-color: white;
background: blue;
--accent-color: white;
}
- graph: none
type: sensor
detail: 2
entity: sensor.topwindspeedhr
name: Wind
icon: mdi:weather-windy
hours_to_show: 12
card_mod:
style: |
.header .icon {
color: white;
}
ha-card {
border: 2px solid black;
--primary-text-color: white;
font-weight: bold;
--secondary-text-color: white;
background: blue;
--accent-color: white;
}
- graph: none
type: sensor
detail: 2
name: Rain
icon: ""
hours_to_show: 24
entity: sensor.kpajamis12_precipitation_today
card_mod:
style: |
.header .icon {
color: white;
}
ha-card {
border: 2px solid black;
--secondary-text-color: white;
--primary-text-color: white;
font-weight: bold;
background: blue;
--accent-color: white;
}
- type: vertical-stack
cards:
- type: custom:mushroom-chips-card
chips:
- type: entity
entity: sensor.date_time
icon_color: yellow
card_mod:
style: |
ha-card {
--chip-background: green;
--chip-height: 20px;
--chip-border-radius: 12px;
--chip-icon-size: 12px;
--chip-font-size: 12px;
--text-color: yellow;
border: 2px solid black !important;
}
- type: spacer
- type: entity
entity: sensor.coloreinkdisplay_wifi_signal_percent
icon_color: yellow
card_mod:
style: |
ha-card {
--chip-background: green;
--chip-height: 20px;
--chip-border-radius: 12px;
--chip-icon-size: 12px;
--chip-font-size: 12px;
--text-color: yellow;
border: 2px solid black !important;
}
- type: entity
entity: sensor.coloreinkdisplay_battery_level
icon_color: yellow
card_mod:
style: |
ha-card {
--chip-background: green;
--chip-height: 20px;
--chip-border-radius: 12px;
--chip-icon-size: 12px;
--chip-font-size: 12px;
--text-color: yellow;
border: 2px solid black !important;
}
alignment: center
- entities:
- entity: calendar.birthdays
show_time: true
color: white
accent_color: white
- entity: calendar.philadelphia_phillies
show_time: true
color: white
accent_color: white
- entity: calendar.carolina_panthers
show_time: true
color: white
accent_color: white
- entity: calendar.holidays_in_united_states
show_time: true
split_multiday_events: false
color: white
accent_color: white
- entity: calendar.north_carolina_tar_heels_men_s_basketball
show_time: true
color: white
accent_color: white
- entity: calendar.philadelphia_eagles
show_time: true
color: white
accent_color: white
- entity: calendar.john_w_waters_gmail_com
show_time: true
color: white
accent_color: white
days_to_show: 7
show_empty_days: true
filter_duplicates: true
title: ""
title_color: ""
background_color: black
accent_color: white
day_spacing: 4px
event_spacing: 2px
day_separator_width: 1px
day_separator_color: yellow
today_indicator: dot
today_indicator_color: green
weekday_color: white
day_color: white
month_color: white
weekend_weekday_color: yellow
weekend_day_color: yellow
weekend_month_color: yellow
today_weekday_color: ""
today_day_color: ""
today_month_color: ""
show_past_events: true
event_font_size: 20px
event_color: white
empty_day_color: white
time_font_size: 14px
time_color: white
show_location: false
weather:
position: none
date:
show_conditions: true
show_high_temp: true
show_low_temp: false
icon_size: 14px
font_size: 12px
color: white
event:
show_conditions: true
show_temp: true
icon_size: 14px
font_size: 12px
color: white
entity: weather.kpajamis12
type: custom:calendar-card-pro
height: 400px
card_mod:
style: |
ha-card {
border: 2px solid black;
font-weight: bold !important;
}
.day-table.today .event-title {
font-weight: bold !important;
}
.day-table.tomorrow .event-title {
font-weight: bold !important;
}
.day-table.future-day .event-title {
font-weight: bold !important;
}
div.time {
font-weight: bold !important;
}
badges: []
John
Stepped up the Display game fo Sho!
PJ
