SO I had a Excellent morning visit with the BEST NORDIC Repā€™s et al in NA Iā€™m betting :wink: :+1:

What I was shown and Demoā€™d was nothing short of Amazing and Fantastic all at the same time..WOW Some I can show and some well, you can guess.. Suffice to say The future Looks really, excellent for battery powered devices to TAKE over.

Here is the next LEVEL

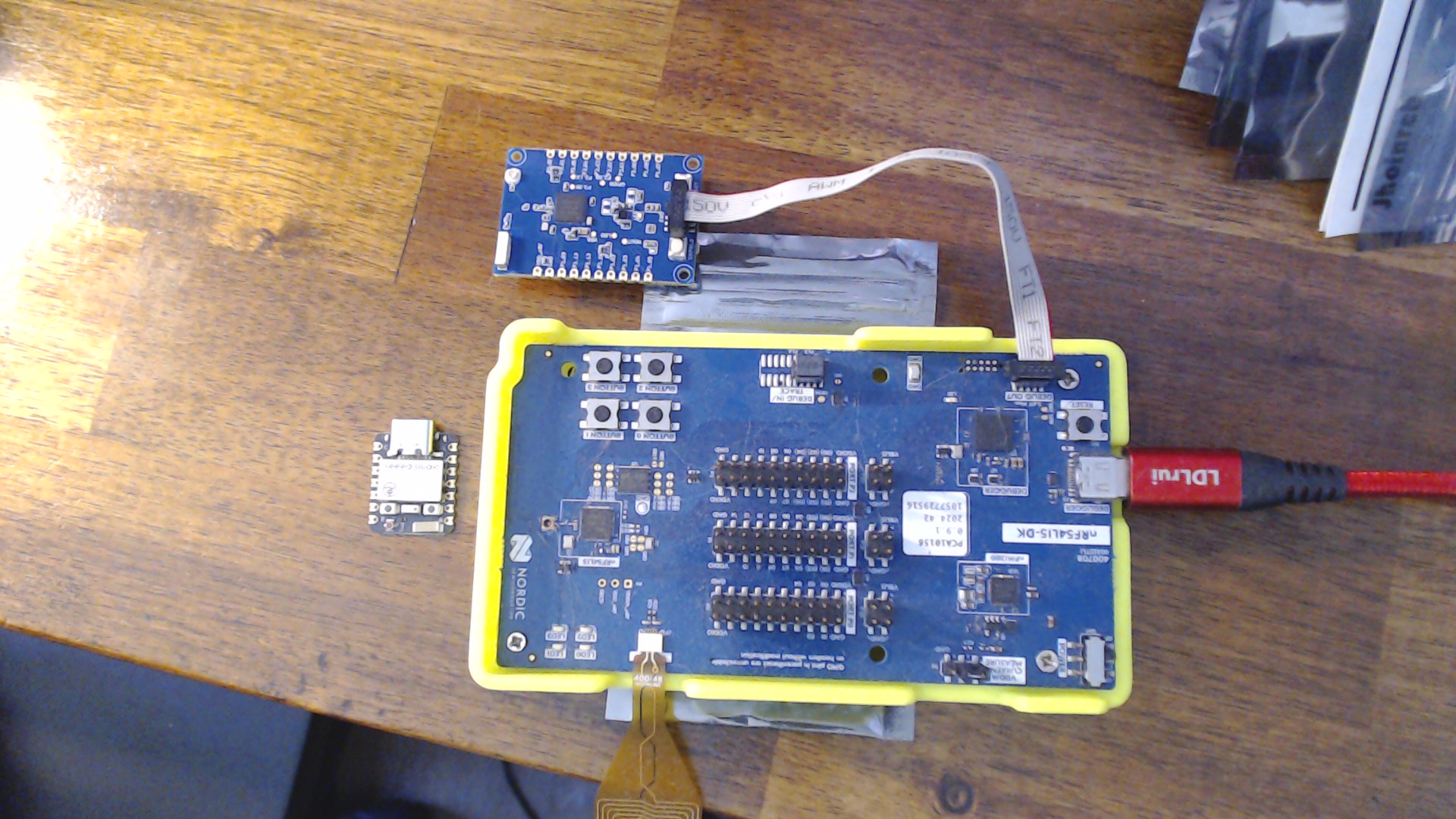

WIN_20260324_12_55_09_Pro
WIN_20260324_12_55_09_Pro1920Ɨ1080 378 KB

in The REAL, NO AI, NO promises kept or Broken.

What are YOU looking at :index_pointing_at_the_viewer:

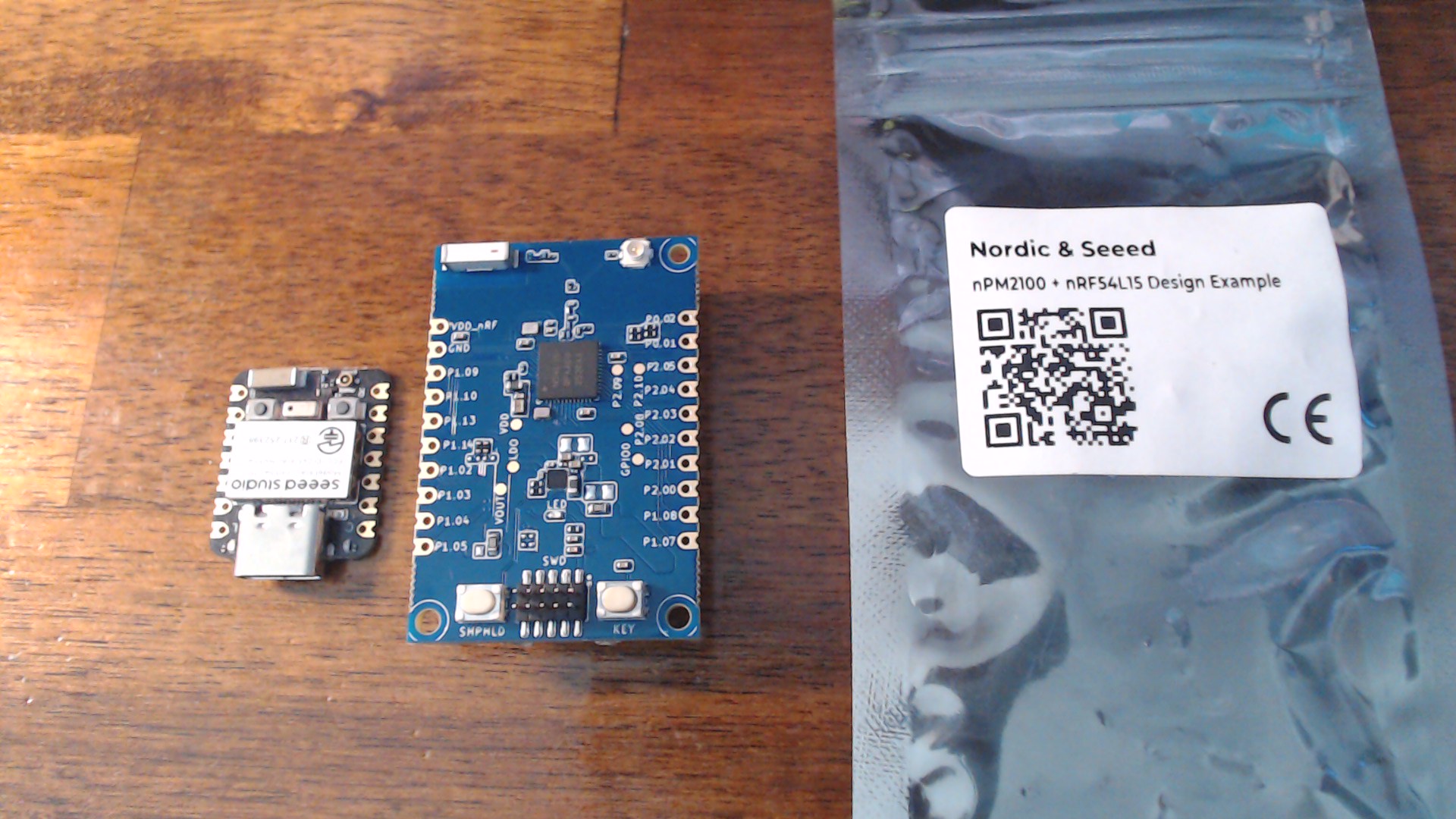

The Newest Reference Design for Seeed by Nordic. See how the Big Boys do it! :face_with_tongue:.and BTW he gifted one too me. :heart_eyes: :exploding_head: wait until you see what it can do.
Truly ā€œOPEN Sourceā€ design like only Nordic does it. The Full monty, they hold nothing back.

We are talking 35na. Ship/Sleep current.

nRF54L15 & PM2100

LINKS to the files forthcoming, you can make your own or maybe seeed may sell it, Idunno? :wink:
FYI, this info is less than 2 hrs.old. You see and hear it here FIRST :index_pointing_up: Anyone on the fence on using this in a battery powered device design,
This should push you hard into the Nordic eco SOLUTION! :flexed_biceps:

GL :slight_smile: PJ :+1:

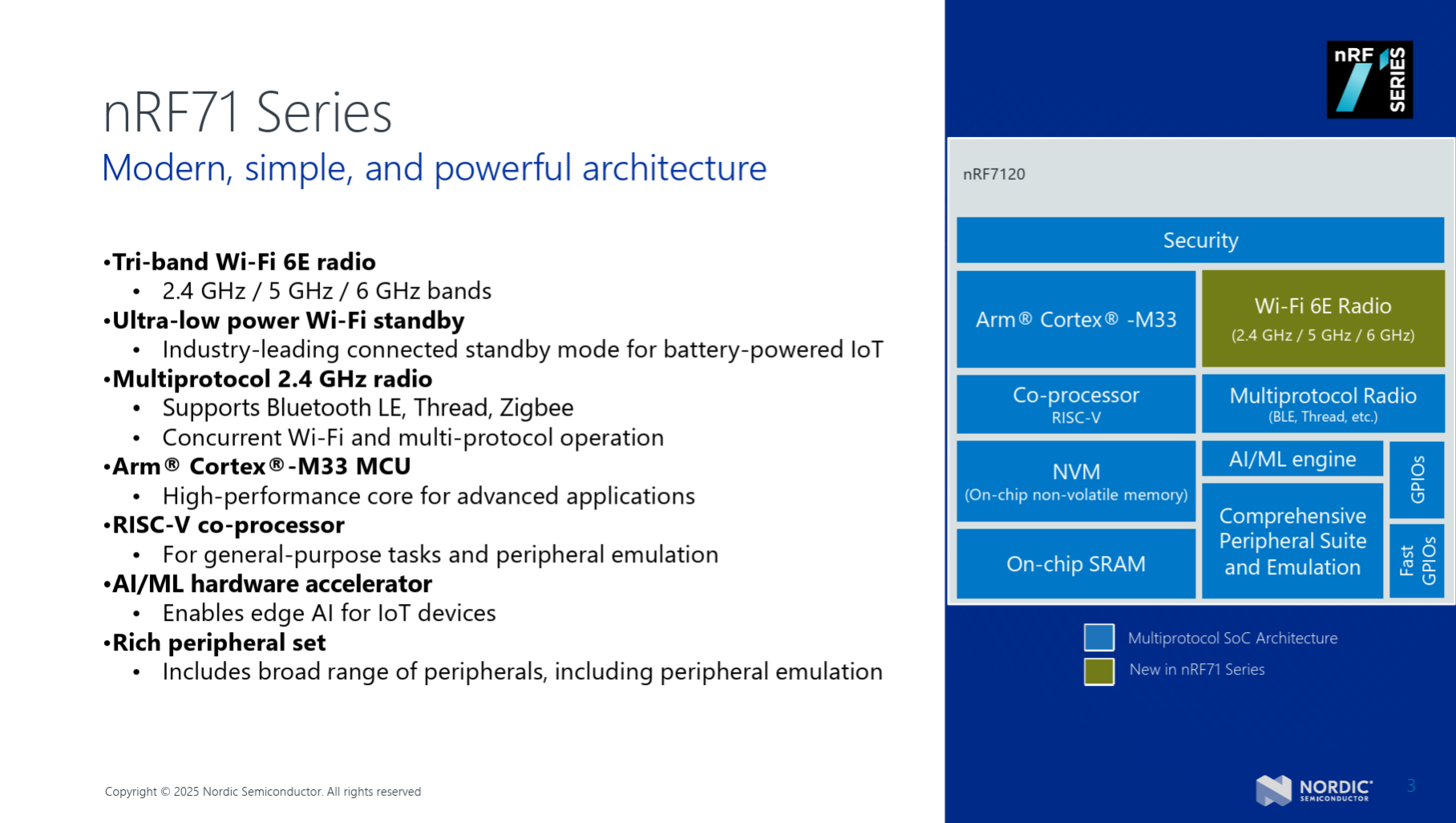

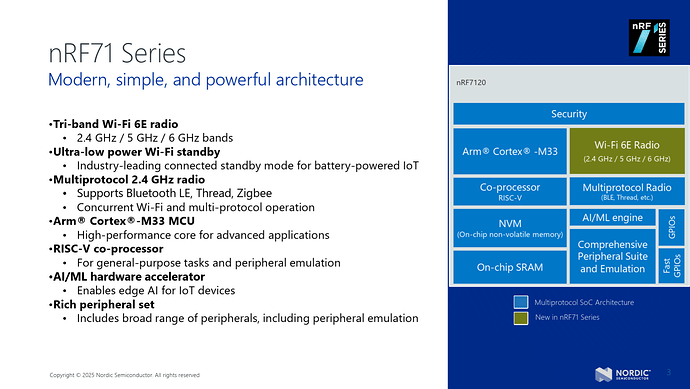

Much more to comeā€¦WiFi, BLE 6, Cellular Satellite, IOT Matter/Tread, ML so bright we gonna need shades :oncoming_fist: :smiling_face_with_sunglasses: Seeedineers are working HARD.

2 Likes
2

Team NORDIC.. Get with the Vikings :flexed_biceps: :grin:

1 in Supportā€¦

Nordic reps_edit
Nordic reps_edit1920Ɨ1374 631 KB

nordic_reps2
nordic_reps21920Ɨ2560 1.22 MB

Thanks Fellas!
GL :slight_smile: PJ :v:

3

Here are the FIles,

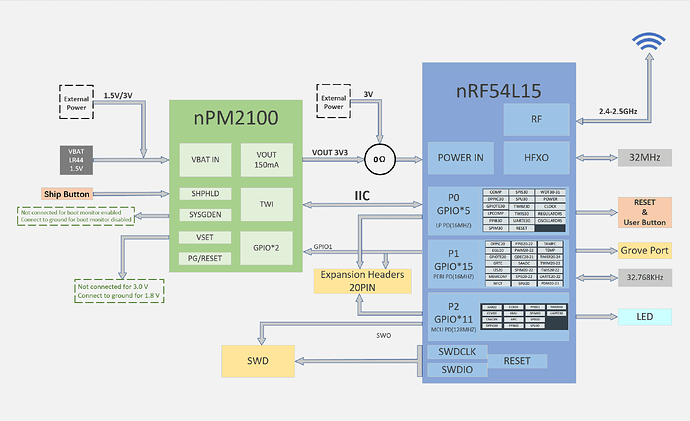

Here is what your looking at :+1:

image2261Ɨ1380 282 KB

Kicad file is included.
Go build one. :grin:

GL :slight_smile: PJ :v:

4

Hi there,

SO, what about Ship mode, check out the Code on the GIT, Power on BLE advertisedā€¦
BLE Battery service shows voltage of the battery , or State of Charge.
if you know anything about Battery powered devices, SOC allows somethingā€™s you would only see in High end Mobile or very expensive gear.
(battery profiling, power estimation, Battery save mode)

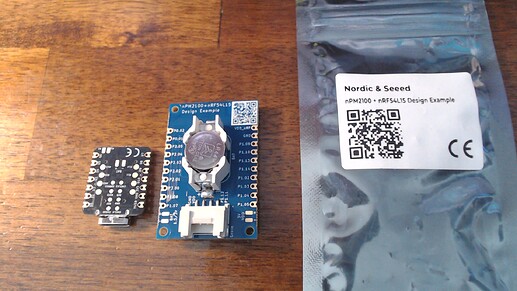

WIN_20260324_12_55_50_Pro
WIN_20260324_12_55_50_Pro1920Ɨ1080 379 KB

Bottom of the board Battery Holder & Grove connector :grin:

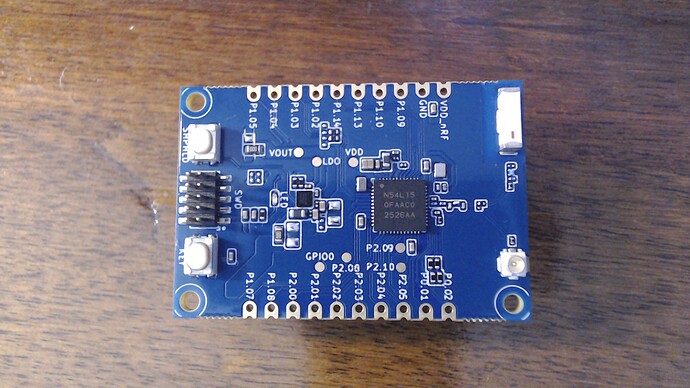

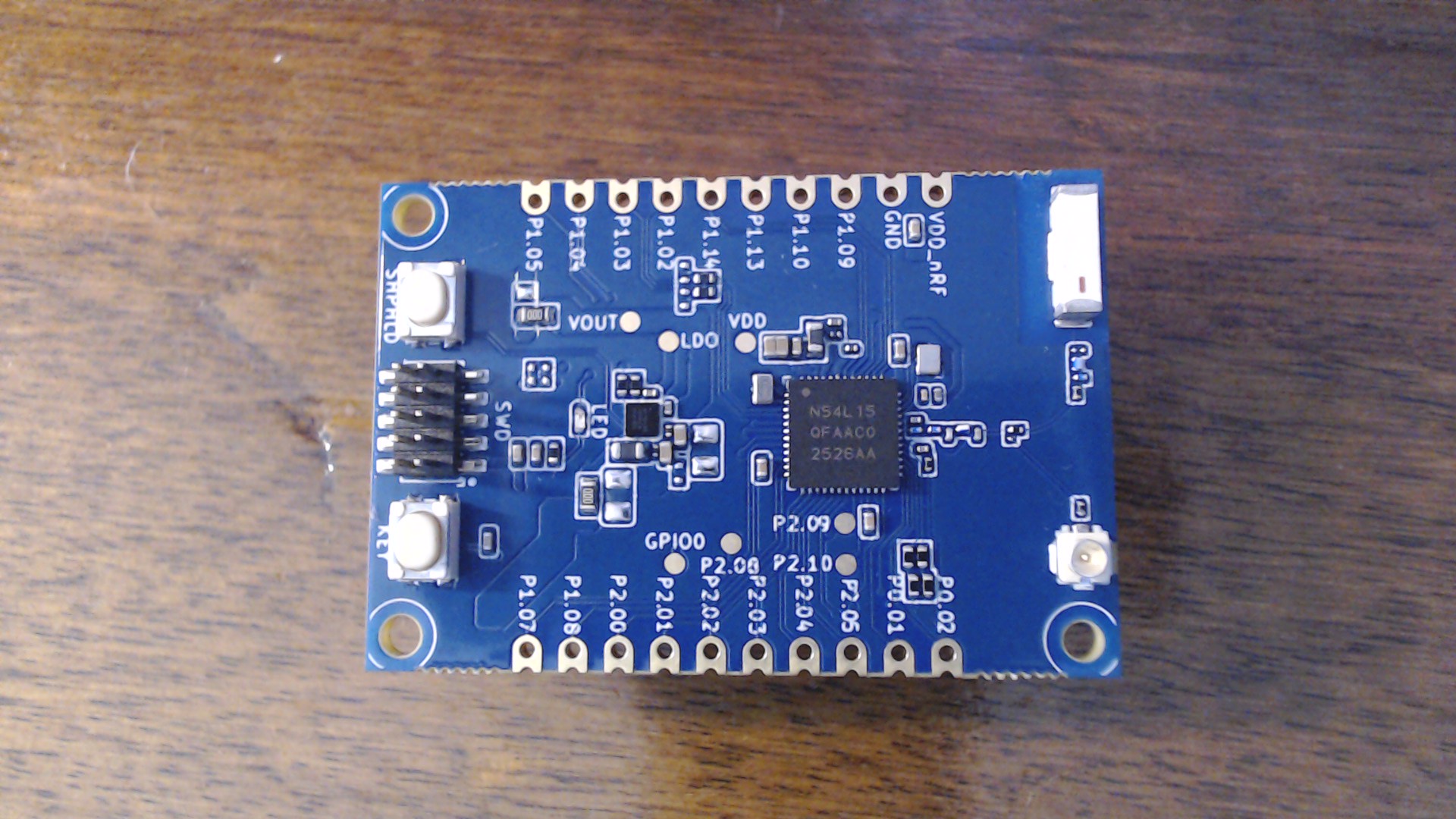

WIN_20260324_13_01_38_Pro
WIN_20260324_13_01_38_Pro1920Ɨ1080 381 KB

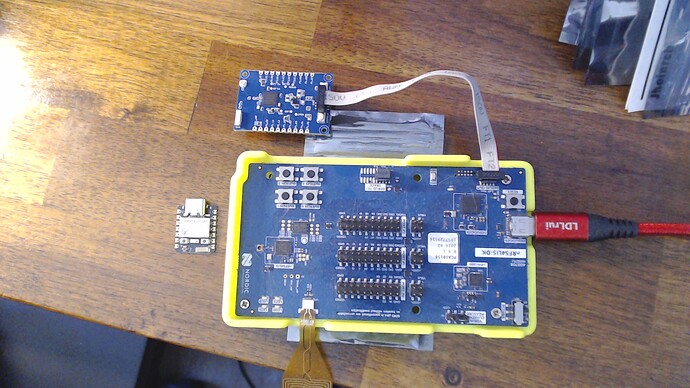

SWD & JLink compatible can be programmed with either DK board Too ! :+1:

WIN_20260324_12_59_04_Pro
WIN_20260324_12_59_04_Pro1920Ɨ1080 444 KB

Mind the cable Length Folksā€¦(10pin) :index_pointing_up: :sweat_smile:

Works with the NRF_Mobile app like a BOSSā€¦ stay tunned.

GL :slight_smile: PJ :v:

5

Hi there,
some of the fine points
here are the features of nPM2100 Power Management IC:

nPM2100 is a PMIC for primary cell batteries (AA, AAA, LRxx, coin cell, etc).

  • Input voltage 0.7V to 3.4V
  • One Boost converter, output 1.8V to 3.3V
  • One LDO
  • 35nA ship mode, option for break to wake (no plastic pull tab needed)
  • 175nA hibernate mode
  • Power On Reset and Brownout Reset
  • Fuel gauge for primary cell battery
  • I2C digital interface

No reason not to use the PMIC IMO.:+1:

GL :slight_smile: PJ :v:

6

what is the easiest was to order this reference design?

7

Hi there,

And Welcome hereā€¦

So head over to the git hub page, and it the bottom is the resources to order one, You can also just send the board files to JLPCB or Seeed Services to have one made.
Seeed should offer it on the website. Iā€™ll advise them, see what comes back. :v:

HTH
