Wait – I thought they were supposed to be “single design, no panels.” Is it not panelized if it’s not scored or cut out? Or is this more of a suggestion than a hard-and-fast requirement?
Apparently it’s more of a suggestion. These are answers I got from the Seeed staff previously:
[i]
You can panelize to save the cost, but you need to cut the board by yourself.
2. The fusion pcb service does not accept the panelized pcb board, except those sever designs seperated by SILK on one pcb , such that you need to cut the board by yourself. Guess that is Liao's mean.
For the others questions, see my answers below:

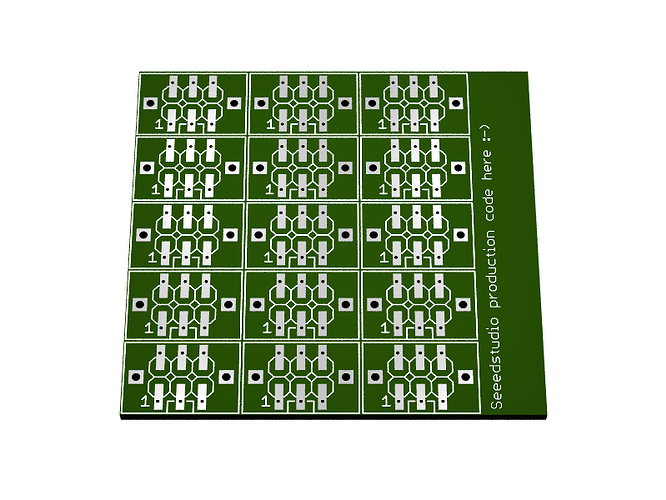

Step & Repeat of a single tiny board: Allowed or not?
Allowed.
Puzzling together several different designs to fit the board size: Allowed or not?
Allowed.
Can each sub-board in the manufactured PCB have a silk (Eagle Layer 21 tPlace) “border” or not if there is an Layer 20 Outline encompassing the entire PCB that is manufactured. Can or not?
No problem.
[/i]
