Small e-Paper Shield is supported by LinkIt ONE!!!

Good news!!!
LinkIt ONE can work with Small e-Paper Shield. But, not compatible very perfect, you need to do some soldering work and download a new library as well.

As EPD_CS was connected to D10, it did’t work, and we need to change it do D0.

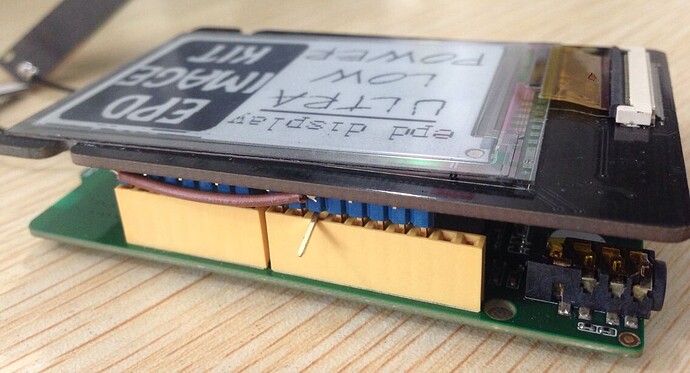

Follow by the following image:



The library is just a preview version, only the image example can work.
But I will finish the other examples soon.
Cheers. (150 KB)

Can you choose another output instead of DO so the serial port is still available?

This library will be published within this week.
And you can choose a cs pin as you want. :smiley:
