Hi there,

I built the Rainbow LED cube and it’s sort of working properly, but there are few things I’m not sure how to debug. I was reading the wiki and following the examples there.

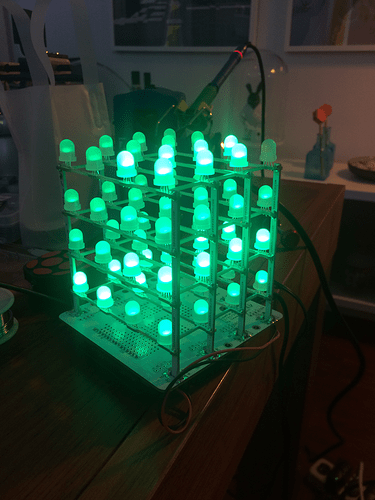

The first cube example has an extra green LED lit.

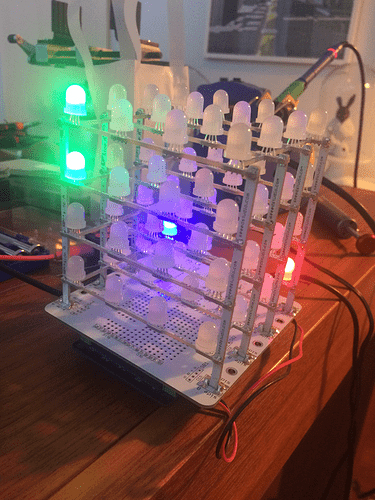

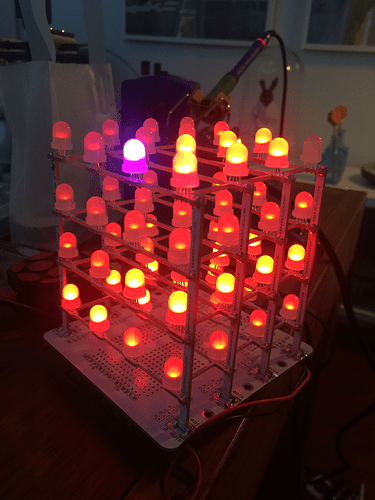

If I try making all the LEDS red/green/blue they have varying levels of brightness. Is this normal? One of the LEDs is magenta when I try to make them all red.

I am guessing there are some soldering issues but I’ve checked each connection and they look ok. Any advice is appreciated! Thank you.

#2

Hello,

Yes, it looks like soldering issue. In few LEDs one or more channel is not responding(i.e not properly soldered).

Thanks and Warm Regards.
