This is my first post on the forum, regarding my second PCB order, so I´m a complete newbie!
I´m making my PCB in eagle, and my intention is to make a sort of Stylophone.
I have used pads layer to draw my keyboard so I make sure it is showing as cooper and I can make contact. Problem is that using the design rule file for fusion service it throws Layer abuse error for every line I drew.
Should I draw the keyboard in tStop or bStop layer instead? Is it way to draw in Pads layer without getting the error?
Thanks a lot in advance for reading and taking some time on it
It came out correctly, or per your .brd file at least. I assume that your pads were covered with solder mask?
You need to duplicate your pad layers in your tStop or bStop layers to prevent this. In Eagle just turn on the visibility of those two layers. Look at other pads on the board then compare them to your pads and it should be clear why your pads were treated differently.
I’m on the same issue.
Preparing a touch activated drum machine.

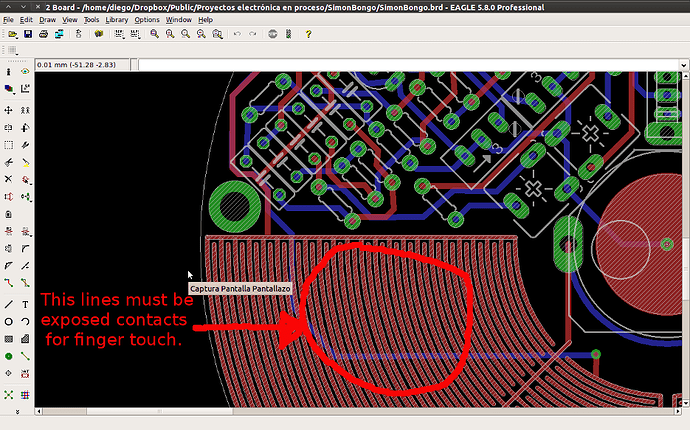

see the next screen shot:
I put my finger contacts on the Top layer and duplicate the same drawing on the T stop layer to be sure this wires will be covered with surface finish and not with solder mask.
¿Is that correct?
By other side…
Will be the HASL finish reliable for this application? or will be necessary to choose Rosh HASL or ENIG? in other words… can HASL oxidate?
