Grove NFC v1.1 Problem

Products & Technology Grove
#1

Hi,

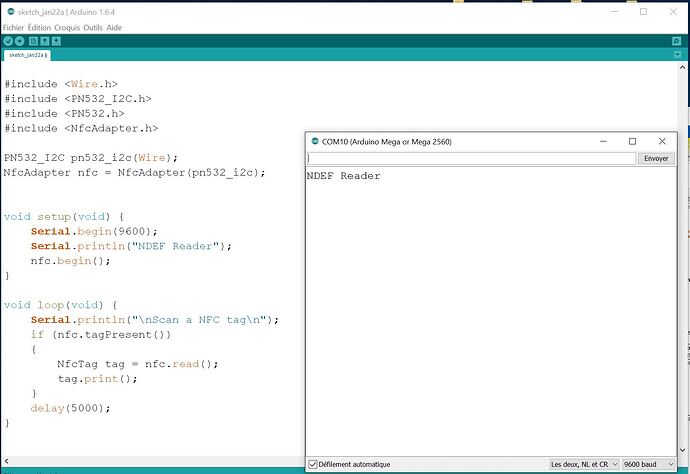

the Grove NFC v1.1 board is not working for me with the provided samples for arduino. I tried it in UART mode on Arduino Mega with the code described on the WIKI http://www.seeedstudio.com/wiki/Grove_%EF%BC%8D_NFC (PN532_HSU): but I get an error: Didn’t find PN53x board.

As suggested on the WIKI and on the forum, I tried to work in I2C mode, after changing the 3 jumpers: but same error.

Also, I am surprised there is no LED that lights up when power (unlike the grove RFID reader).

Thanks for help.

#2

Hi,

The jumper connections are specified in the following attachment.
Could you please check if you have properly cut and soldered as shown in the picture.

Thanks and Regards
NFC V1.1.jpg

#3

Hi,

thanks for answer.

That’s exactly what I did, as explained in your WIKI.

Thanks and Regards,

#4

Thanks for your information.

To which port did you connect your sensor?
Please connect it to I2C port.

Please send us a photograph of Grove NFC connected to the Arduino board.

Regards

#5



Thanks and Regards

#6

edited : see solution in the next post.

#7

Hello,

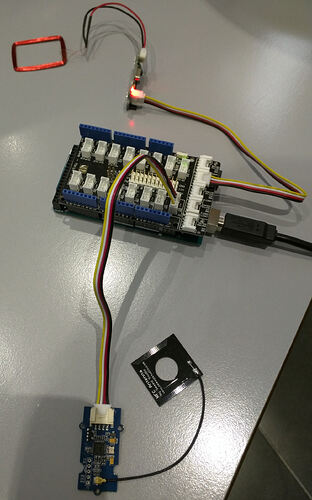

Could you please change the Grove cable that is used to connect Grove NFC to Base Shield. In the photo that you have sent, the VCC & GND cable are shown exchanged.

Thanks and Warm Regards.

#8

Hello,

Thanks for answer.

you have good eyes !!! I changed the cable, but the problem is not solved.

Do you think that the NFC component could be broken because of this bad cable ?

Best regards

#9

Hi,

There is a possibility.

Please ensure the following things:

  1. Connect and power the Grove - NFC. Check if you are getting 3.3V from output of LDO. Use TP5 (i.e 3.3V) & any GND pin.
  2. Also, make sure the UART to I2C PCB jumpers(all three jumpers pad sets) connections are properly set. Use a DMM to check continuity and shorts.

Thanks and Warm Regards

#10

Hi,

I have the same problem.
I made 3 jumpers on the bottum but i have olways the same massage “Didn’t find PN53x board”.
I check the cable, the draft, the power. I don’t find the mistake.
Can you halp me?

Thx
