Grove Flame Sensor directly on Arduino Mega w. analog values

Products & Technology Grove
#1

Hello,

I just bought this Seeed Grove Flame Sensor:
seeedstudio.com/wiki/Grove_-_Flame_Sensor

Can I connect it directly to my Arduino Mega 2560, without using a Seeed Grove Base Shield?
And can I get analog feedback values from this sensor?
I just found a sample code, where I get a boolean feedback, if there is a flame detected or not.
I’d like to have a specific analog feedback value, where I get get information about how strong the value is.

This is the sample code:

#define FLAME_SENSOR 3 //connect FLAME_SENSOR to digital pin3
#define LED 2//connect Grove - LED to pin2

void setup()
{
	pinsInit();
}
void loop()
{
  if(isFlameDetected())
  	turnOnLED();
  else turnOffLED();
}
/********************************/
void pinsInit()
{
	pinMode(FLAME_SENSOR, INPUT);
	pinMode(LED,OUTPUT);
	digitalWrite(LED,LOW);
}
void turnOnLED()
{
	digitalWrite(LED,HIGH);
}
void turnOffLED()
{
	digitalWrite(LED,LOW);
}
boolean isFlameDetected()
{
	if(digitalRead(FLAME_SENSOR))
		return false;
	else return true;
}

Best regards :wink:

#2

Hello,

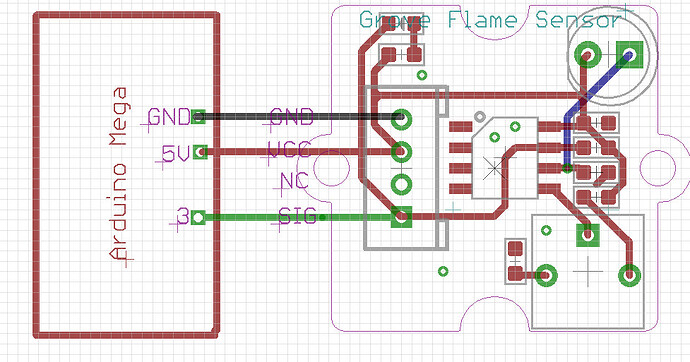

Please make connections from grove flame sensor to Arduino mega directly as shown in the attachment.
This is an digital sensor it does not provide analog values.

Thanks and Regards

#3

Is it possible to short-circuit the comparator, to get the desired analoge values?
If so, which pins do I have to edit?
