Hi,

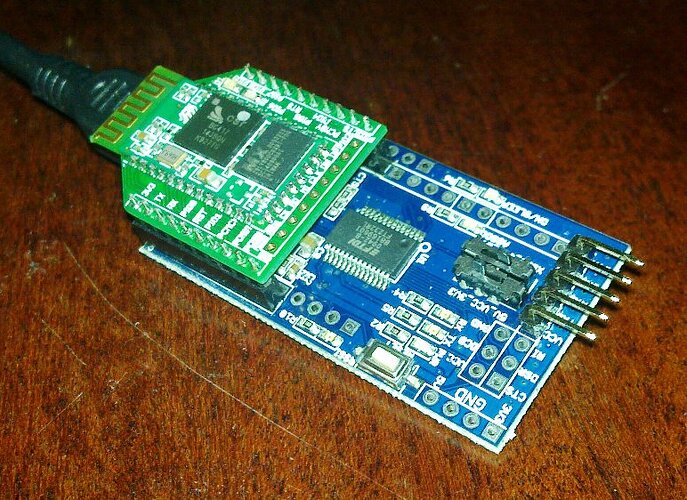

I am trying to configure Bluetooth Bee directly using the USB to Serial Converter as attached…

20100212_003.jpg773×562 146 KB
. When I connect to my laptop and reset the board, the serial console gives me

WORK:MASTER

However, each time I want to configure something, it gives me error:

ERROR
\r\n+STAUTO=0\r\n

\r\n+STBD=115200\r\n
ERROR

…etc

error.JPG668×419 16.5 KB

Any idea?..

Br,
Sameh

2

The character \r\n before and after the real command means to send return and next row which is 0D 0A in hex. So try to use a terminal that can actually send characters representing return and next row.
