Artifacts on 128x64 Serial LCD Screen

End-Of-Life Products & Services Tech support before 2012
#1

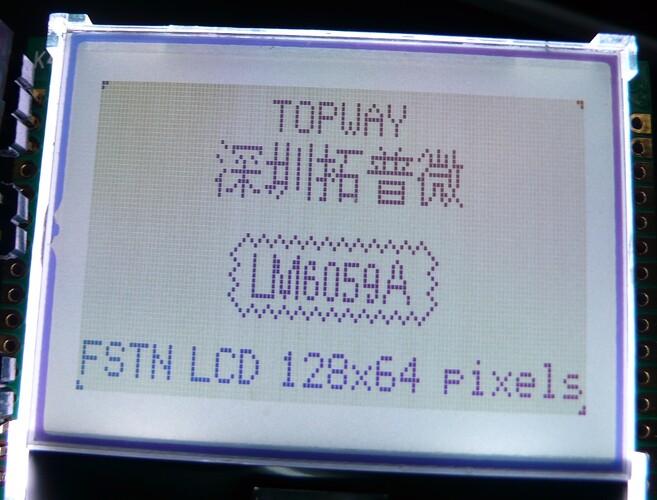

I got this strange artifacts in the upper left corner and lower right on every bitmap that I send to this serial LCD from seeedstudio (seeedstudio.com/depot/serial … p-287.html):

This is my code (could be useful for those who bought this lcd screen too because runs natively from arduino ide):

[code]// Demo LCD TOPWAY LM6059BCW
// Author: Erwin Ried
// Webpage: http://erwin.ried.cl
// Based on: http://www.seeedstudio.com/depot/images/product/LM6059BCW-Manual-Rev0.3.pdf

#define CS1 2 // Chip Select (LOW= enable LCD)
#define RST 3 // Reset signal (HIGH= normal, LOW= Init)
#define A0 4 // Register Select (HIGH= Display Data, LOW= Control)
#define CLOCK 7
#define DATA 6

// Example logo
byte logo[]={
0x03,0x01,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x08,0x08,
0xF8,0x08,0x08,0x00,0xF0,0x08,0x08,0x08,0xF0,0x00,0xF8,0x48,0x48,0x48,0x30,0x00,
0xF8,0x00,0x80,0x00,0xF8,0x00,0xE0,0x50,0x48,0x50,0xE0,0x00,0x38,0x40,0x80,0x40,
0x38,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x03,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x80,0x10,0x20,0x00,0x60,0x20,0xA0,0x20,0x20,0xA0,0x20,0x60,0x00,0x00,0x00,0xF0,
0x03,0x00,0xF0,0x00,0x01,0xE2,0x02,0x02,0xF1,0x00,0x83,0x80,0xF0,0x80,0x80,0x20,
0x21,0xE2,0x21,0x22,0x21,0x20,0x03,0x00,0xC0,0x40,0x53,0xE0,0x40,0x40,0xE3,0x50,
0x40,0xC0,0x40,0x00,0x40,0x20,0x10,0xE0,0x80,0xF0,0x80,0xE0,0x00,0xF0,0x80,0x80,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x10,0xF9,0x04,0x40,0x44,0x25,0x14,0xFF,0x14,0x24,0x45,0x44,0x00,0x21,0x61,0x3F,
0x91,0x51,0x3F,0x00,0x00,0x3F,0x00,0x00,0xFF,0x00,0x08,0x88,0xFF,0x04,0x0A,0x04,
0xFF,0x44,0x44,0x44,0xFC,0x00,0x00,0x02,0x02,0x03,0xFA,0xAB,0xAA,0xAA,0xAB,0xAA,
0xFB,0x02,0x02,0x00,0x04,0xFE,0x81,0x42,0x3A,0x0A,0x7A,0xA2,0x4F,0x30,0x4F,0x80,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x00,0x00,0x00,0x80,0x00,0x00,
0x00,0x80,0x00,0x00,0x00,0x80,0x00,0x00,0x00,0x80,0x00,0x00,0x00,0x80,0x00,0x00,
0x00,0x80,0x00,0x00,0x00,0x80,0x00,0x00,0x00,0x80,0x00,0x00,0x00,0x80,0x00,0x00,
0x00,0x80,0x00,0x00,0x00,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x88,0x54,0x22,0x01,0x00,0x01,0xFA,0x01,0x00,0x01,0x02,
0xF9,0x70,0x81,0x02,0xC1,0x30,0xF9,0x02,0xE1,0x90,0xB1,0x02,0x01,0xE0,0x11,0x12,
0xE1,0x00,0xF1,0x92,0x91,0x10,0x01,0xE2,0x11,0x10,0xE1,0x02,0x01,0x80,0x71,0x0A,
0x71,0x80,0x01,0x02,0x01,0x00,0x01,0x22,0x54,0x88,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x08,0x15,0x22,0x40,0x80,0x40,0x2F,0x48,0x88,0x48,0x28,
0x4F,0x80,0x47,0x2C,0x47,0x80,0x4F,0x20,0x47,0x88,0x48,0x27,0x40,0x87,0x48,0x28,
0x47,0x80,0x4C,0x28,0x48,0x87,0x40,0x21,0x4D,0x89,0x47,0x20,0x4C,0x83,0x41,0x21,
0x41,0x83,0x4C,0x20,0x40,0x80,0x40,0x22,0x15,0x08,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0xC0,0x40,0x40,0x40,0x40,0x00,0x80,0x40,0x40,0x40,0x80,0x00,0x40,0x40,0xC0,
0x40,0x40,0x00,0xC0,0x00,0x00,0x00,0xC0,0x00,0x00,0x00,0x00,0x00,0xC0,0x00,0x00,
0x00,0x00,0x00,0x80,0x40,0x40,0x40,0x80,0x00,0xC0,0x40,0x40,0x80,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x80,0xC0,0x00,0x00,0x00,0x80,0x40,0x40,0x40,0x80,0x00,0x80,
0x40,0x40,0x40,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x40,0x40,0x40,0x00,
0x00,0x00,0x00,0x80,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x40,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x40,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0xC0,0x9F,0x02,0x02,0x02,0x00,0x00,0x09,0x12,0x12,0x12,0x0C,0x00,0x00,0x00,0x1F,
0x00,0x00,0x00,0x1F,0x01,0x02,0x04,0x1F,0x00,0x00,0x00,0x00,0x00,0x1F,0x10,0x10,
0x10,0x10,0x00,0x0F,0x10,0x10,0x10,0x08,0x00,0x1F,0x10,0x10,0x08,0x07,0x00,0x00,
0x00,0x00,0x00,0x00,0x10,0x1F,0x10,0x00,0x00,0x10,0x18,0x14,0x12,0x11,0x00,0x0D,
0x12,0x12,0x12,0x0D,0x00,0x11,0x0A,0x04,0x0A,0x11,0x00,0x0F,0x12,0x12,0x12,0x0C,
0x00,0x06,0x05,0x04,0x1F,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x1F,0x05,0x05,0x05,
0x02,0x00,0x00,0x11,0x1F,0x10,0x00,0x00,0x11,0x0A,0x04,0x0A,0x11,0x00,0x0E,0x15,
0x15,0x15,0x06,0x00,0x00,0x10,0x1F,0x10,0x00,0x00,0x12,0x15,0x15,0x15,0x88,0xC0
};

// Shift out override (Reverse clock HIGH/LOW)
void shiftOut(uint8_t dataPin, uint8_t clockPin, byte val)
{
for (int i = 0; i < 8; i++) {
digitalWrite(dataPin, !!(val & (1 << (7 - i))));
digitalWrite(clockPin, LOW);
digitalWrite(clockPin, HIGH);
}
}

// Send Byte as command or data to LCD
void sendByte(byte b, boolean isData)
{
digitalWrite(CLOCK,HIGH);
digitalWrite(A0,isData);
digitalWrite(CS1,LOW);
shiftOut(DATA, CLOCK, b);
digitalWrite(CS1,HIGH);
}

// Send command to LCD
void sendCommand(byte b)
{
sendByte(b, false);
}

// Send data to LCD
void sendData(byte b)
{
sendByte(b, true);
}

// Send a whole screen to the LCD (164x64/8 = 1312byte)
void sendScreen(byte screen[])
{
int i,j;

for(i=0; i<8; i++)
{
    sendCommand(0xb0 | i); // Data page 0-7
    sendCommand(0x10); // Data Column 4
    sendCommand(0x00);

    for(j=0; j<128; j++)
        sendData(screen[(i*128)+j]);
}

}

byte actualContrast = 0x17;

void setContrast(int level) // 0= set/reset, >0= darker, <0= lighter
{
if(level>0 && actualContrast<0x3F)
actualContrast++;
else
if(level<0 && actualContrast>0x00)
actualContrast–;

sendCommand(0x81);
sendCommand(actualContrast);

}

void startLcd()
{
// Initialization
digitalWrite(RST,HIGH);
digitalWrite(RST,LOW);
delay(1);
digitalWrite(RST,HIGH);
delay(800);

sendCommand(0xab);  // New
sendCommand(0xaf);  // Display on
sendCommand(0x40);  // Display start line=0
sendCommand(0xc8);  // Common output mode select= reverse
sendCommand(0xa6);  // Normal display
sendCommand(0xa4);  // Display all point= off
sendCommand(0xa3);  // LCD bias = 1/9   a2
sendCommand(0x2f);  // Power control = all on
sendCommand(0x25);  // Rab Ratio     26
setContrast(0);     // Default contrast

}

void setup()
{
pinMode(CS1,OUTPUT);
pinMode(RST,OUTPUT);
pinMode(A0,OUTPUT);
pinMode(CLOCK,OUTPUT);
pinMode(DATA,OUTPUT);

startLcd();
sendScreen(logo);

}

void loop()
{
// Something to do…
}
[/code]

Anyone knows why can this happen? Thanks!

#2

I suggest you to check the data first, set the Logo[] all 0xff for a test and set to all 0x00 for another test , If can display all black and all white then may be the logo data probem.

#3

Thanks FreeZinG, but I have tested other images, even custom ones like:
content.screencast.com/users/eri … 7_0051.png

but the noisy borders will keep appearing. They are almost stable, but somethings the dots change a bit

sometimes I see at upper left somekind like a !? symbol with the noise, and sometimes is like !>, and sometimes like in the previous image its like !! (the second ! is larger)

Any other guess/help? thanks!

#4

There is a owner of the seeedstudio.com/depot/serial … p-287.html serial lcd screen who can test my code please?

It is very simple, just copy the code to Arduino IDE and upload it. Connect the lcd as shown here (using seeedstudio cables of course :mrgreen:):

I wish to know if my lcd is the faulty or my code, please someone.

#5

Is the problem in your code. 168 have not so large RAM for you to store a data array , you can put it in the flash.
And here is the code I modify and it works well.

[code]#include <avr/pgmspace.h>
// Demo LCD TOPWAY LM6059BCW
// Author: Erwin Ried
// Webpage: http://erwin.ried.cl
// Based on: http://www.seeedstudio.com/depot/images/product/LM6059BCW-Manual-Rev0.3.pdf

#define CS1 2 // Chip Select (LOW= enable LCD)
#define RST 3 // Reset signal (HIGH= normal, LOW= Init)
#define A0 4 // Register Select (HIGH= Display Data, LOW= Control)
#define CLOCK 7
#define DATA 6

byte logo[] PROGMEM ={
0x03,0x01,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x08,0x08,
0xF8,0x08,0x08,0x00,0xF0,0x08,0x08,0x08,0xF0,0x00,0xF8,0x48,0x48,0x48,0x30,0x00,
0xF8,0x00,0x80,0x00,0xF8,0x00,0xE0,0x50,0x48,0x50,0xE0,0x00,0x38,0x40,0x80,0x40,
0x38,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x03,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x80,0x10,0x20,0x00,0x60,0x20,0xA0,0x20,0x20,0xA0,0x20,0x60,0x00,0x00,0x00,0xF0,
0x03,0x00,0xF0,0x00,0x01,0xE2,0x02,0x02,0xF1,0x00,0x83,0x80,0xF0,0x80,0x80,0x20,
0x21,0xE2,0x21,0x22,0x21,0x20,0x03,0x00,0xC0,0x40,0x53,0xE0,0x40,0x40,0xE3,0x50,
0x40,0xC0,0x40,0x00,0x40,0x20,0x10,0xE0,0x80,0xF0,0x80,0xE0,0x00,0xF0,0x80,0x80,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x10,0xF9,0x04,0x40,0x44,0x25,0x14,0xFF,0x14,0x24,0x45,0x44,0x00,0x21,0x61,0x3F,
0x91,0x51,0x3F,0x00,0x00,0x3F,0x00,0x00,0xFF,0x00,0x08,0x88,0xFF,0x04,0x0A,0x04,
0xFF,0x44,0x44,0x44,0xFC,0x00,0x00,0x02,0x02,0x03,0xFA,0xAB,0xAA,0xAA,0xAB,0xAA,
0xFB,0x02,0x02,0x00,0x04,0xFE,0x81,0x42,0x3A,0x0A,0x7A,0xA2,0x4F,0x30,0x4F,0x80,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x00,0x00,0x00,0x80,0x00,0x00,
0x00,0x80,0x00,0x00,0x00,0x80,0x00,0x00,0x00,0x80,0x00,0x00,0x00,0x80,0x00,0x00,
0x00,0x80,0x00,0x00,0x00,0x80,0x00,0x00,0x00,0x80,0x00,0x00,0x00,0x80,0x00,0x00,
0x00,0x80,0x00,0x00,0x00,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x88,0x54,0x22,0x01,0x00,0x01,0xFA,0x01,0x00,0x01,0x02,
0xF9,0x70,0x81,0x02,0xC1,0x30,0xF9,0x02,0xE1,0x90,0xB1,0x02,0x01,0xE0,0x11,0x12,
0xE1,0x00,0xF1,0x92,0x91,0x10,0x01,0xE2,0x11,0x10,0xE1,0x02,0x01,0x80,0x71,0x0A,
0x71,0x80,0x01,0x02,0x01,0x00,0x01,0x22,0x54,0x88,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x08,0x15,0x22,0x40,0x80,0x40,0x2F,0x48,0x88,0x48,0x28,
0x4F,0x80,0x47,0x2C,0x47,0x80,0x4F,0x20,0x47,0x88,0x48,0x27,0x40,0x87,0x48,0x28,
0x47,0x80,0x4C,0x28,0x48,0x87,0x40,0x21,0x4D,0x89,0x47,0x20,0x4C,0x83,0x41,0x21,
0x41,0x83,0x4C,0x20,0x40,0x80,0x40,0x22,0x15,0x08,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0xC0,0x40,0x40,0x40,0x40,0x00,0x80,0x40,0x40,0x40,0x80,0x00,0x40,0x40,0xC0,
0x40,0x40,0x00,0xC0,0x00,0x00,0x00,0xC0,0x00,0x00,0x00,0x00,0x00,0xC0,0x00,0x00,
0x00,0x00,0x00,0x80,0x40,0x40,0x40,0x80,0x00,0xC0,0x40,0x40,0x80,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x80,0xC0,0x00,0x00,0x00,0x80,0x40,0x40,0x40,0x80,0x00,0x80,
0x40,0x40,0x40,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x40,0x40,0x40,0x00,
0x00,0x00,0x00,0x80,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x40,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x40,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0xC0,0x9F,0x02,0x02,0x02,0x00,0x00,0x09,0x12,0x12,0x12,0x0C,0x00,0x00,0x00,0x1F,
0x00,0x00,0x00,0x1F,0x01,0x02,0x04,0x1F,0x00,0x00,0x00,0x00,0x00,0x1F,0x10,0x10,
0x10,0x10,0x00,0x0F,0x10,0x10,0x10,0x08,0x00,0x1F,0x10,0x10,0x08,0x07,0x00,0x00,
0x00,0x00,0x00,0x00,0x10,0x1F,0x10,0x00,0x00,0x10,0x18,0x14,0x12,0x11,0x00,0x0D,
0x12,0x12,0x12,0x0D,0x00,0x11,0x0A,0x04,0x0A,0x11,0x00,0x0F,0x12,0x12,0x12,0x0C,
0x00,0x06,0x05,0x04,0x1F,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x1F,0x05,0x05,0x05,
0x02,0x00,0x00,0x11,0x1F,0x10,0x00,0x00,0x11,0x0A,0x04,0x0A,0x11,0x00,0x0E,0x15,
0x15,0x15,0x06,0x00,0x00,0x10,0x1F,0x10,0x00,0x00,0x12,0x15,0x15,0x15,0x88,0xC0
};

// Shift out override (Reverse clock HIGH/LOW)
void shiftOut(uint8_t dataPin, uint8_t clockPin, byte val)
{
for (int i = 0; i < 8; i++) {
digitalWrite(dataPin, !!(val & (1 << (7 - i))));
digitalWrite(clockPin, LOW);
digitalWrite(clockPin, HIGH);
}
}

// Send Byte as command or data to LCD
void sendByte(byte b, boolean isData)
{
digitalWrite(CLOCK,HIGH);
digitalWrite(A0,isData);
digitalWrite(CS1,LOW);
shiftOut(DATA, CLOCK, b);
digitalWrite(CS1,HIGH);
}

// Send command to LCD
void sendCommand(byte b)
{
sendByte(b, false);
}

// Send data to LCD
void sendData(byte b)
{
sendByte(b, true);
}

// Send a whole screen to the LCD (164x64/8 = 1312byte)
void sendScreen()
{
int i,j;
int temp;

for(i=0; i<8; i++)
{
    sendCommand(0xb0 | i); // Data page 0-7
    sendCommand(0x10); // Data Column 4
    sendCommand(0x00);


    for(j=0; j<128; j++)
    {
       temp =pgm_read_byte( &logo[(i*128)+j]);
       sendData(temp);
    }

}

}

byte actualContrast = 0x17;

void setContrast(int level) // 0= set/reset, >0= darker, <0= lighter
{
if(level>0 && actualContrast<0x3F)
actualContrast++;
else
if(level<0 && actualContrast>0x00)
actualContrast–;

sendCommand(0x81);
sendCommand(actualContrast);

}

void startLcd()
{
// Initialization
digitalWrite(RST,HIGH);
digitalWrite(RST,LOW);
delay(1);
digitalWrite(RST,HIGH);
delay(800);

sendCommand(0xab);  // New
sendCommand(0xaf);  // Display on
sendCommand(0x40);  // Display start line=0
sendCommand(0xc8);  // Common output mode select= reverse
sendCommand(0xa6);  // Normal display
sendCommand(0xa4);  // Display all point= off
sendCommand(0xa3);  // LCD bias = 1/9   a2
sendCommand(0x2f);  // Power control = all on
sendCommand(0x25);  // Rab Ratio     26
setContrast(0);     // Default contrast

}

void setup()
{
pinMode(CS1,OUTPUT);
pinMode(RST,OUTPUT);
pinMode(A0,OUTPUT);
pinMode(CLOCK,OUTPUT);
pinMode(DATA,OUTPUT);

startLcd();
sendScreen();

}

void loop()
{
// Something to do…
}

[/code]

#6

Here is the picture:

#7

hahaha :laughing: :laughing: :laughing: thanks FreeZing!!! great!!

So it was true, this topway lcd are very high quality :smiley:
