Micro switch whats what?

General
1

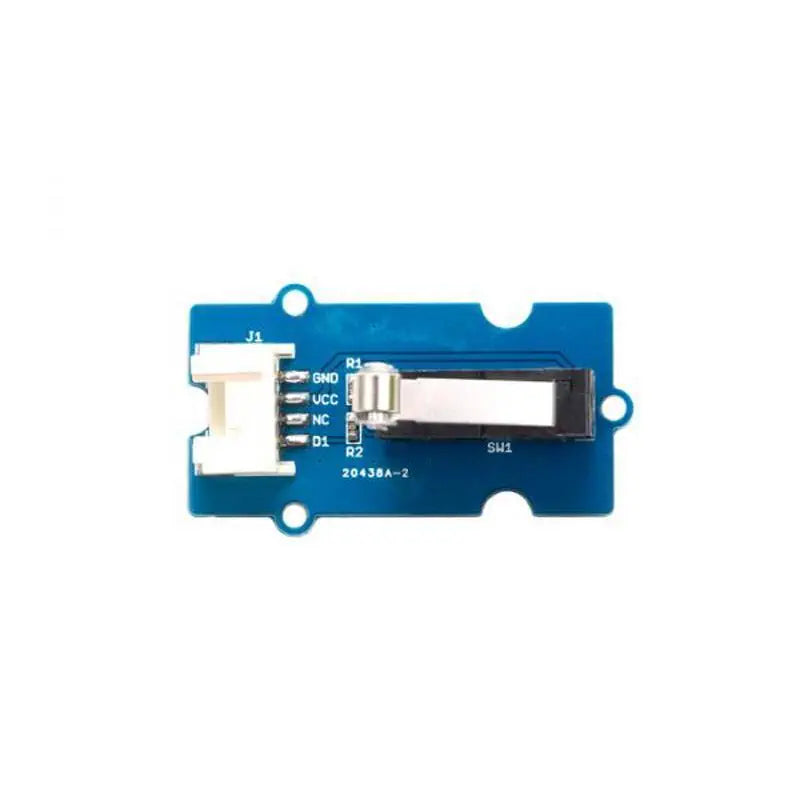

I purchased Grove - Micro Switch and am using for a project that just requires the C and NO

The groove switches have gnd, vcc, nc, D1. Which connection what I use just to have the C and NO?

2

To use the Grove - Micro Switch with just the common (C) and normally open (NO) connections, you’ll typically connect the following:

  1. Connect the “C” (Common) pin of the micro switch to your input/output device.
  2. Connect the “NO” (Normally Open) pin of the micro switch to your input/output device.
  3. Leave the other pins (“GND”, “VCC”, “NC”, and “D1”) unconnected as they are not required for your project.

This Types of drama configuration ensures that the common (C) terminal is always connected to the normally open (NO) terminal when the switch is in its default state. When the switch is activated (pressed or toggled), the circuit between “C” and “NO” is closed, allowing current to flow through your input/output device.

3

To use only the Common (C) and Normally Open (NO) terminals of the Grove Micro Switch, connect:

  • C: to your input or output device
  • NO: to your desired circuit or component

You can leave the other terminals (GND, VCC, and NC) unconnected for your project’s requirements.

4

Use VCC as Common (C) and D1 as Normally Open (NO). Ignore GND and NC for your use case.

5

The Grove - Micro Switch module typically includes:

  • GND – Ground
  • VCC – Power (usually 3.3V or 5V)
  • NC – Normally Closed contact of the switch
  • D1 – Digital output pin (connected to the NO side of the switch with a pull-up)

If you only need to use the Common (C) and Normally Open (NO) for your project

6

Hi there,

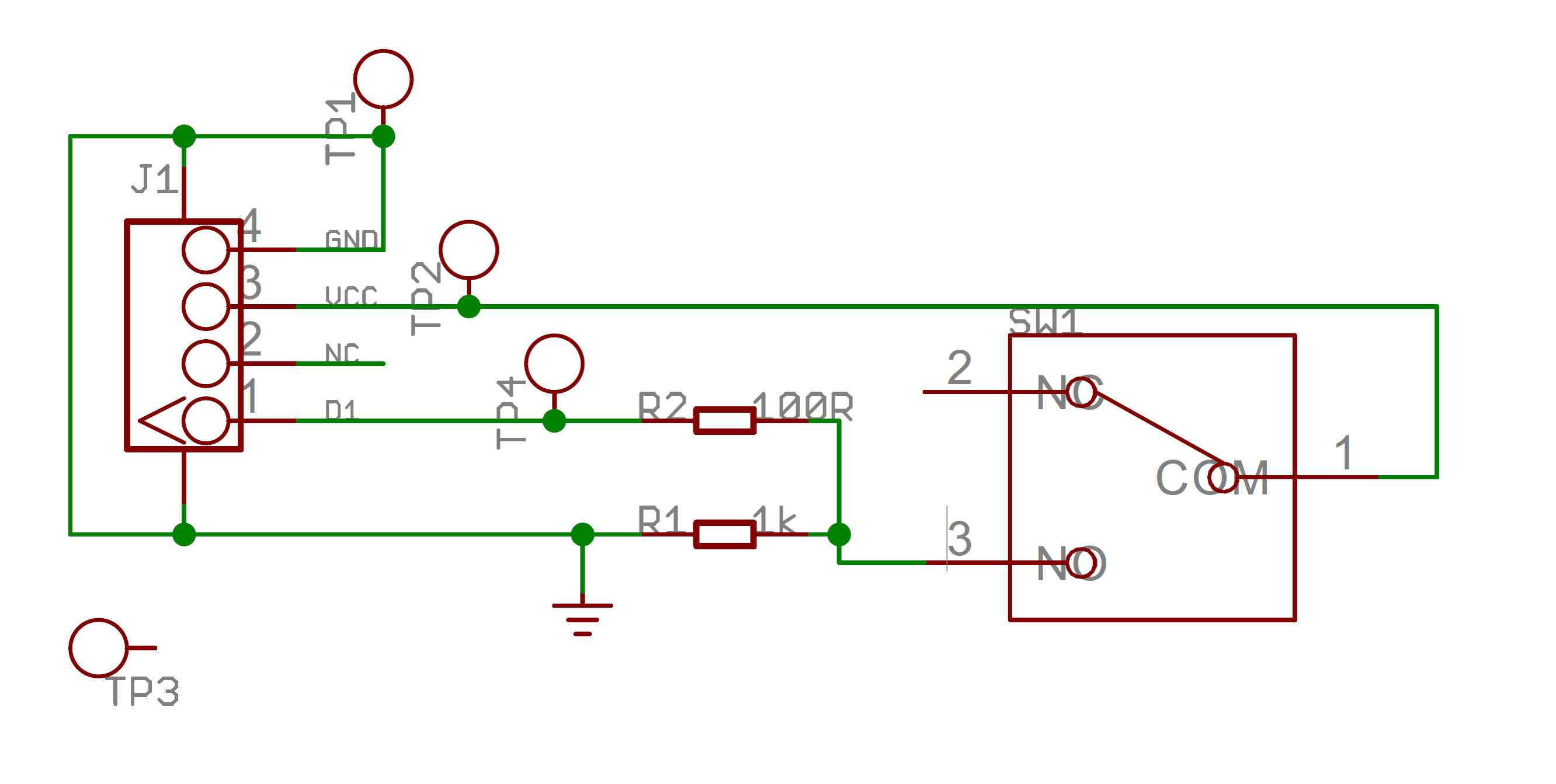

SO , Actually it’s none of that… You can clearly see from the schematic located in the ZIP file on the sales page. It’s the standard Grove setup (NC , means NO Connection) btw :+1:

seeedstudio-grove-micro-switch-img2_1024x1

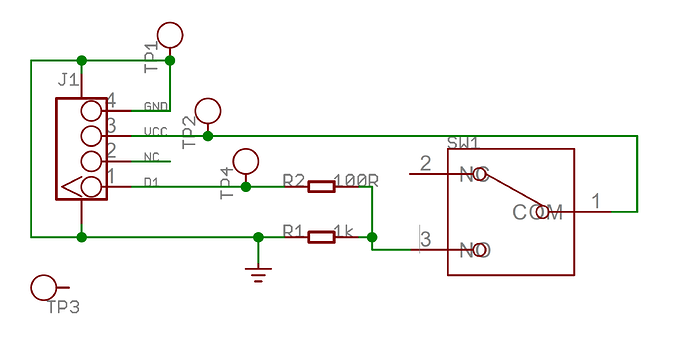

seeedstudio-grove-micro-switch-img2_1024x1800×800 25.3 KB

Grove_micro_sw_
Grove_micro_sw_2664×1343 109 KB

You should probably test one first next time. The D1 pin will be VCC (5V) when the micro-switch is activated.

HTH
GL :slight_smile: PJ :v:

7

Hi

…
In a switch where the contacts remain in one state unless actuated, such as a push-button switch, the contacts can either be normally open (abbreviated “n.o.” or “no”) until closed by operation of the switch, or normally closed (“n.c.” or “nc”) and opened by the switch action.
…

from : Switch - Wikipedia
