I am not sure how to evaluate stability and packet loss, so I have not investigated this. Do you have any information on evaluation methods?
Very useful comparison. May I know what software you are using to capture RSSI?
I think every XIAO BSP has functions like getRSSI().
I have no idea what I did wrong, but my codedPhy doesn’t seem to be working (anymore, or has it never worked)?
I get “NRF_ERROR_BUSY” when trying to update it to use coded phy 4.
Could someone pretty please post a complete example of it working, possibly @msfujino ?
Please refer to the following.
nRF52_CodedPHY.zip (51.1 KB)
hi guys, I am trying to create a 3 sensor architecture using 3x seeed nRF52840 sense. 1 in dual role acting as a hub, 2 in peripherial. It would be like a boxing sensor. The problem is that the dBm on the gloves were avaraging around 83-84,the sensors were not further than 2 m away. I was rarely getting enough sensor readings.
My question is that this Seeed Studio XIAO nRF52840 Sense is not supposed to work well with that tiny antenna to begin with? do I need to add a 2-3cm antenna to it?
thx
What is the transmit power in dBm? The nRF52840 can transmit at up to 8 dBm. At least in my experiments, the RSSI was -60 dBm in the next room.
Why don’t you start by checking what RSSI you get with just the XIAO?
hi!
all three devices it’s Bluefruit.setTxPower(4);
I checked. the BLE_Communication_Distance_Test_Report.pdf that is published on seeed’s website, according to that it should work nicely, but it doesn’t. when I moved the sensor next to the hub (like 2cm away) sensor, the dbm is around 53-55. It’s not being blocked by anything. Not sure what’s wrong.
Hi there,

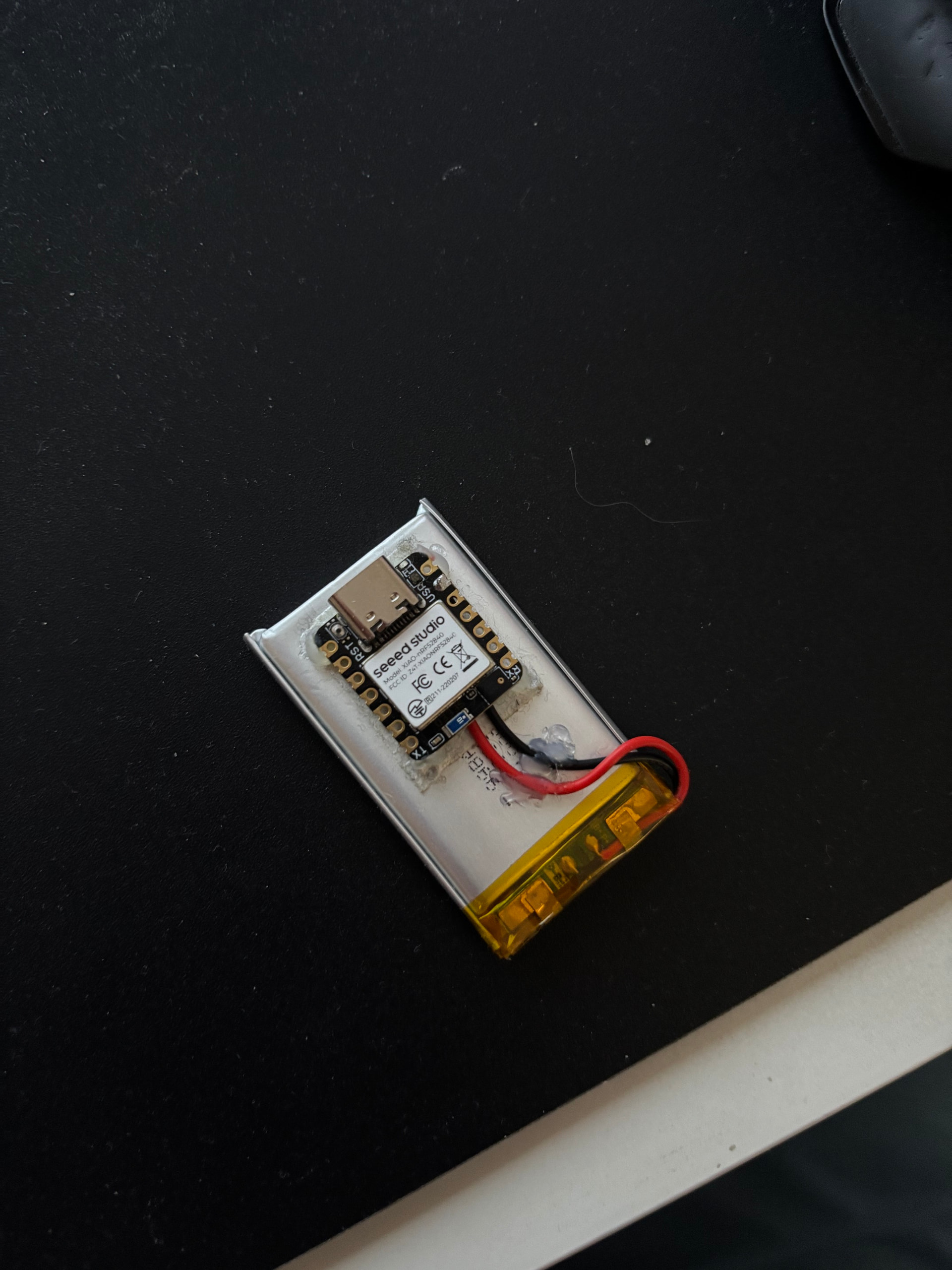

So, Can you post a picture of this Device?
and the code you are using ? Use the Code tags above “</>” paste it in there.
HTH
GL
PJ
Try using Bluefruit.setTxPower(8);.
The onboard antennas are directional, so you need to position them facing each other to get the best RSSI.
#include <bluefruit.h>
#include <Wire.h>
#include "LSM6DS3.h"
#include <nrf.h>
// ============================================================================
// SERIAL DEBUG SWITCH
// ============================================================================
// When 0 (default), continuous raw per-sample Serial prints are suppressed
// so they cannot interfere with BLE timing / packet throughput. Set to 1 to
// re-enable raw sample printing for debugging. This does not affect what is
// sent to the phone, nor any event/diagnostic Serial output.
#define PRINT_RAW_SAMPLES 0
// ============================================================================
// IDENTITY / NAMES
// ============================================================================
static const char* HUB_NAME = "BoxingGlove-Hub";
static const char* LEFT_NAME = "XIAO-Glove-L";
static const char* RIGHT_NAME = "XIAO-Glove-R";
struct __attribute__((packed)) ImuPacket
{
uint8_t version;
uint8_t sensorId;
uint8_t sequence;
uint8_t reserved;
uint32_t timestamp;
int16_t ax;
int16_t ay;
int16_t az;
int16_t gx;
int16_t gy;
int16_t gz;
};
static_assert(sizeof(ImuPacket) == 20, "ImuPacket must be 20 bytes");
// ============================================================================
// BAG IMU (the hub's own onboard sensor — third stream to the phone,
// tagged 'H', same rules as the gloves: sent only if phone is ready,
// never buffered/queued if not)
// ============================================================================
LSM6DS3 bagImu(I2C_MODE, 0x6A);
bool bagImuOk = false;
const uint32_t BAG_SAMPLE_INTERVAL_MS = 100;
uint32_t lastBagSampleMs = 0;
uint32_t bagImuReadsThisSec = 0;
// The hub streams its own IMU to the phone as a third sensor, using the
// same CSV line shape the gloves use, tagged with its own ID so the
// phone-side code can tell it apart from LEFT ('L') and RIGHT ('R').
const char BAG_SENSOR_ID = 'H';
uint32_t bagPacketsSentTotal = 0;
uint32_t bagPacketsSentThisSec = 0;
uint32_t bagPacketsSkippedThisSec = 0;
// ============================================================================
// BLE OBJECTS
// ============================================================================
// Peripheral side: the one service the phone connects to.
BLEUart bleuart;
// Central side: one independent client UART per glove.
BLEClientUart leftClient;
BLEClientUart rightClient;
// Max bytes we'll ever pull out of a glove's UART in one read. The glove
// sends a single short CSV line per sample, so this is generous headroom.
static const size_t GLOVE_PACKET_BUF_SIZE = 128;
// ============================================================================
// PER-GLOVE STATE
// ============================================================================
// Each glove gets its own independent block of state. Nothing here is
// shared between LEFT and RIGHT except the struct definition itself —
// every decision is made against one specific instance.
struct GloveLink
{
const char* name;
BLEClientUart* client;
uint16_t connHandle;
bool connecting;
bool connected;
bool ready;
ble_gap_addr_t pendingAddr;
bool hasPendingAddr;
uint32_t packetNumber;
uint32_t packetsReceivedTotal;
uint32_t packetsThisSec;
bool rssiMonitoring;
uint8_t rxBuffer[256];
size_t rxLength;
};
GloveLink leftLink = { LEFT_NAME, &leftClient, BLE_CONN_HANDLE_INVALID, false, false, false, {}, false, 0, 0, 0, false };
GloveLink rightLink = { RIGHT_NAME, &rightClient, BLE_CONN_HANDLE_INVALID, false, false, false, {}, false, 0, 0, 0, false };
// ============================================================================
// PHONE STATE
// ============================================================================
bool phoneConnected = false;
bool phoneReady = false; // true once the phone has enabled notifications
uint16_t phoneConnHandle = BLE_CONN_HANDLE_INVALID;
// ============================================================================
// LED (RGB, active driven via analogWrite so we can mix real colors —
// 0 = fully off, 255 = fully on, board is active-LOW so we invert)
// ============================================================================
uint32_t discoveryFailureBlinkUntilMs = 0; // orange blink runs until this time
// ============================================================================
// DIAGNOSTICS TIMER
// ============================================================================
uint32_t lastDiagMs = 0;
// ============================================================================
// FORWARD DECLARATIONS
// ============================================================================
void printBootBanner();
void printResetReason();
void startScanIfNeeded();
void scan_callback(ble_gap_evt_adv_report_t* report);
void cent_connect_callback(uint16_t conn_handle);
void cent_disconnect_callback(uint16_t conn_handle, uint8_t reason);
void leftClient_rx_callback(BLEClientUart& uart);
void rightClient_rx_callback(BLEClientUart& uart);
void handleGlovePacket(GloveLink& link, BLEClientUart& uart);
void prph_connect_callback(uint16_t conn_handle);
void prph_disconnect_callback(uint16_t conn_handle, uint8_t reason);
bool extractAdvName(const ble_gap_evt_adv_report_t* report, char* outName, size_t outSize);
bool addrEquals(const ble_gap_addr_t& a, const ble_gap_addr_t& b);
void setLedColor(uint8_t r, uint8_t g, uint8_t b);
void updateLed();
void triggerDiscoveryFailureBlink();
void printDiagnostics();
// ============================================================================
// SETUP
// ============================================================================
void setup()
{
Serial.begin(115200);
uint32_t serialWaitStart = millis();
while (!Serial && (millis() - serialWaitStart) < 3000)
{
delay(10);
}
printBootBanner();
printResetReason();
// ---- LED ----
pinMode(LED_RED, OUTPUT);
pinMode(LED_GREEN, OUTPUT);
pinMode(LED_BLUE, OUTPUT);
setLedColor(0, 0, 0);
// ---- Bag IMU (hub's own onboard sensor) ----
Wire.begin();
if (bagImu.begin() != 0)
{
Serial.println("BAG IMU INIT FAILED");
bagImuOk = false;
}
else
{
Serial.println("BAG IMU INIT OK");
bagImuOk = true;
}
// ---- BLE bring-up ----
// 1 peripheral connection (the phone) + 2 central connections (the gloves).
Bluefruit.configPrphBandwidth(BANDWIDTH_MAX);
Bluefruit.configCentralBandwidth(BANDWIDTH_MAX);
Bluefruit.begin(1, 2);
Bluefruit.setTxPower(4);
Bluefruit.setName(HUB_NAME);
// Peripheral (phone-facing) callbacks
Bluefruit.Periph.setConnectCallback(prph_connect_callback);
Bluefruit.Periph.setDisconnectCallback(prph_disconnect_callback);
// Central (glove-facing) callbacks
Bluefruit.Central.setConnectCallback(cent_connect_callback);
Bluefruit.Central.setDisconnectCallback(cent_disconnect_callback);
// Phone-facing BLE UART service
bleuart.begin();
// Glove-facing BLE UART clients — completely independent objects,
// each with its own callback function (not a shared one).
leftClient.begin();
leftClient.setRxCallback(leftClient_rx_callback);
rightClient.begin();
rightClient.setRxCallback(rightClient_rx_callback);
// ---- Advertise to the phone ----
Bluefruit.Advertising.clearData();
Bluefruit.ScanResponse.clearData();
Bluefruit.Advertising.addFlags(BLE_GAP_ADV_FLAGS_LE_ONLY_GENERAL_DISC_MODE);
Bluefruit.Advertising.addTxPower();
Bluefruit.Advertising.addService(bleuart);
Bluefruit.ScanResponse.addName();
Bluefruit.Advertising.restartOnDisconnect(true);
Bluefruit.Advertising.setInterval(32, 244); // 20ms - 152.5ms
Bluefruit.Advertising.setFastTimeout(30);
Bluefruit.Advertising.start(0);
Serial.println("ADVERTISING STARTED (phone)");
// ---- Scan for gloves ----
// Active scanning is required so we actually receive the scan-response
// packet that carries each glove's advertised name.
Bluefruit.Scanner.setRxCallback(scan_callback);
Bluefruit.Scanner.restartOnDisconnect(true);
Bluefruit.Scanner.useActiveScan(true);
Bluefruit.Scanner.setInterval(160, 80);
Bluefruit.Scanner.start(0);
Serial.println("SCANNING STARTED (gloves)");
lastDiagMs = millis();
lastBagSampleMs = millis();
}
// ============================================================================
// LOOP
// ============================================================================
void loop()
{
uint32_t now = millis();
// ---- Bag IMU: read once per interval, forward to phone as a third
// sensor stream (same CSV shape as the gloves, tagged 'H'). Only sent
// while the phone is ready; never buffered if it isn't. ----
if (bagImuOk && (now - lastBagSampleMs) >= BAG_SAMPLE_INTERVAL_MS)
{
lastBagSampleMs = now;
float ax = bagImu.readFloatAccelX();
float ay = bagImu.readFloatAccelY();
float az = bagImu.readFloatAccelZ();
float gx = bagImu.readFloatGyroX();
float gy = bagImu.readFloatGyroY();
float gz = bagImu.readFloatGyroZ();
bagImuReadsThisSec++;
char line[96];
int len = snprintf(line, sizeof(line),
"%c,%lu,%.2f,%.2f,%.2f,%.2f,%.2f,%.2f\n",
BAG_SENSOR_ID,
(unsigned long)now,
ax, ay, az,
gx, gy, gz);
if (len > 0)
{
#if PRINT_RAW_SAMPLES
Serial.print("HUB: ");
Serial.print(line);
#endif
if (phoneReady)
{
bleuart.write((uint8_t*)line, (size_t)len);
bagPacketsSentTotal++;
bagPacketsSentThisSec++;
}
else
{
bagPacketsSkippedThisSec++;
}
}
else
{
// Phone not ready: drop this sample, don't queue it for later.
bagPacketsSkippedThisSec++;
}
}
// ---- Phone notify-enabled edge detection ----
// BLEUart doesn't need a CCCD callback for this — a cheap poll here is
// enough, and keeps this out of any BLE callback entirely.
bool notifyNow = bleuart.notifyEnabled();
if (notifyNow && !phoneReady)
{
phoneReady = true;
Serial.println("PHONE READY");
}
else if (!notifyNow && phoneReady)
{
phoneReady = false;
}
// ---- LED ----
updateLed();
// ---- Diagnostics, once per second ----
if ((now - lastDiagMs) >= 1000)
{
lastDiagMs = now;
printDiagnostics();
leftLink.packetsThisSec = 0;
rightLink.packetsThisSec = 0;
bagImuReadsThisSec = 0;
bagPacketsSentThisSec = 0;
bagPacketsSkippedThisSec = 0;
}
}
// ============================================================================
// SCANNER
// ============================================================================
// Fires for every advertisement AND every scan-response packet received
// (active scanning is on). The glove's name lives in its scan-response
// packet, so this callback may see a given physical glove twice — once
// with no name, once with the name. Only the one carrying a name that
// matches LEFT_NAME/RIGHT_NAME is ever acted on. Everything else is
// ignored and scanning resumes.
void scan_callback(ble_gap_evt_adv_report_t* report)
{
char advName[32] = { 0 };
bool gotName = extractAdvName(report, advName, sizeof(advName));
if (!gotName)
{
Bluefruit.Scanner.resume();
return;
}
if (strcmp(advName, LEFT_NAME) == 0)
{
if (!leftLink.ready && !leftLink.connecting)
{
Serial.println("SCANNER: found LEFT, connecting");
leftLink.connecting = true;
leftLink.pendingAddr = report->peer_addr;
leftLink.hasPendingAddr = true;
Bluefruit.Central.connect(report);
return;
}
}
else if (strcmp(advName, RIGHT_NAME) == 0)
{
if (!rightLink.ready && !rightLink.connecting)
{
Serial.println("SCANNER: found RIGHT, connecting");
rightLink.connecting = true;
rightLink.pendingAddr = report->peer_addr;
rightLink.hasPendingAddr = true;
Bluefruit.Central.connect(report);
return;
}
}
// Not one of our gloves, or that role's slot is already taken/connecting.
Bluefruit.Scanner.resume();
}
void startScanIfNeeded()
{
if (leftLink.ready && rightLink.ready)
{
return; // both slots full, nothing to look for
}
if (!Bluefruit.Scanner.isRunning())
{
Bluefruit.Scanner.start(0);
}
}
// ============================================================================
// LEFT / RIGHT CONNECTION MANAGEMENT
// ============================================================================
// One shared entry point (Bluefruit only allows one central connect
// callback), but the FIRST thing it does is figure out — by address,
// recorded at scan time, never by getPeerName() — which independent
// GloveLink this event belongs to. Everything after that point only
// touches that one struct.
void cent_connect_callback(uint16_t conn_handle)
{
BLEConnection* connection = Bluefruit.Connection(conn_handle);
ble_gap_addr_t peerAddr = connection->getPeerAddr();
GloveLink* link = nullptr;
if (leftLink.connecting && leftLink.hasPendingAddr && addrEquals(peerAddr, leftLink.pendingAddr))
{
link = &leftLink;
}
else if (rightLink.connecting && rightLink.hasPendingAddr && addrEquals(peerAddr, rightLink.pendingAddr))
{
link = &rightLink;
}
if (link == nullptr)
{
// Shouldn't happen — we only ever call connect() right after
// recording the pending address — but fail safe if it does.
Serial.println("HUB: connected peer did not match any pending glove, disconnecting");
Bluefruit.disconnect(conn_handle);
startScanIfNeeded();
return;
}
link->connHandle = conn_handle;
link->connected = true;
link->hasPendingAddr = false;
Serial.print(link->name);
Serial.println(" CONNECTED");
connection->monitorRssi();
link->rssiMonitoring = true;
// ---- Discover UART, then enable notifications ----
bool discoverOk = link->client->discover(conn_handle);
if (!discoverOk)
{
Serial.print(link->name);
Serial.println(" UART DISCOVERY FAILED — disconnecting this glove only");
link->connected = false;
link->connecting = false;
link->connHandle = BLE_CONN_HANDLE_INVALID;
link->rssiMonitoring = false;
triggerDiscoveryFailureBlink();
Bluefruit.disconnect(conn_handle);
startScanIfNeeded();
return;
}
link->client->enableTXD();
link->ready = true;
link->connecting = false;
Serial.print(link->name);
Serial.println(" READY");
// Keep scanning if the other glove still isn't ready.
startScanIfNeeded();
}
void cent_disconnect_callback(uint16_t conn_handle, uint8_t reason)
{
GloveLink* link = nullptr;
if (leftLink.connHandle == conn_handle)
{
link = &leftLink;
}
else if (rightLink.connHandle == conn_handle)
{
link = &rightLink;
}
if (link == nullptr)
{
startScanIfNeeded();
return;
}
Serial.print(link->name);
Serial.print(" DISCONNECTED reason=0x");
Serial.println(reason, HEX);
link->connected = false;
link->ready = false;
link->connecting = false;
link->connHandle = BLE_CONN_HANDLE_INVALID;
link->hasPendingAddr = false;
link->rssiMonitoring = false;
startScanIfNeeded();
}
// ============================================================================
// GLOVE PACKET RECEPTION — one independent callback per glove
// ============================================================================
void leftClient_rx_callback(BLEClientUart& uart)
{
handleGlovePacket(leftLink, uart);
}
void rightClient_rx_callback(BLEClientUart& uart)
{
handleGlovePacket(rightLink, uart);
}
// Not "shared guessing logic" — the caller has already told us exactly
// which glove this is. This just avoids writing the same ten lines twice.
void handleGlovePacket(GloveLink& link, BLEClientUart& uart)
{
uint8_t temp[64];
while (uart.available())
{
int len = uart.read(temp, sizeof(temp));
if (len <= 0)
return;
// Append new bytes into receive buffer
if (link.rxLength + len > sizeof(link.rxBuffer))
{
Serial.print(link.name);
Serial.println(": RX buffer overflow");
link.rxLength = 0;
return;
}
memcpy(link.rxBuffer + link.rxLength, temp, len);
link.rxLength += len;
// Process every complete packet
while (link.rxLength >= sizeof(ImuPacket))
{
ImuPacket pkt;
memcpy(&pkt, link.rxBuffer, sizeof(ImuPacket));
// Remove processed packet from buffer
memmove(link.rxBuffer,
link.rxBuffer + sizeof(ImuPacket),
link.rxLength - sizeof(ImuPacket));
link.rxLength -= sizeof(ImuPacket);
link.packetNumber++;
link.packetsReceivedTotal++;
link.packetsThisSec++;
// =====================================================
// HUB SERIAL MONITOR
// =====================================================
#if PRINT_RAW_SAMPLES
Serial.print(link.name);
Serial.print(": ");
Serial.print(pkt.sensorId == 1 ? 'L' : 'R');
Serial.print(",");
Serial.print(pkt.timestamp);
Serial.print(",");
Serial.print(pkt.ax / 1000.0f, 2);
Serial.print(",");
Serial.print(pkt.ay / 1000.0f, 2);
Serial.print(",");
Serial.print(pkt.az / 1000.0f, 2);
Serial.print(",");
Serial.print(pkt.gx / 10.0f, 2);
Serial.print(",");
Serial.print(pkt.gy / 10.0f, 2);
Serial.print(",");
Serial.println(pkt.gz / 10.0f, 2);
#endif
// =====================================================
// PHONE (CSV for now)
// =====================================================
if (phoneReady)
{
char line[96];
int outLen = snprintf(
line,
sizeof(line),
"%c,%lu,%.2f,%.2f,%.2f,%.2f,%.2f,%.2f\n",
pkt.sensorId == 1 ? 'L' : 'R',
(unsigned long)pkt.timestamp,
pkt.ax / 1000.0f,
pkt.ay / 1000.0f,
pkt.az / 1000.0f,
pkt.gx / 10.0f,
pkt.gy / 10.0f,
pkt.gz / 10.0f);
if (outLen > 0)
{
bleuart.write((uint8_t*)line, (size_t)outLen);
}
}
}
}
}
// ============================================================================
// PHONE (peripheral) CALLBACKS — small, flags + a print only
// ============================================================================
void prph_connect_callback(uint16_t conn_handle)
{
phoneConnHandle = conn_handle;
phoneConnected = true;
phoneReady = false; // notify-enabled state is edge-detected in loop()
Serial.println("PHONE CONNECTED");
}
void prph_disconnect_callback(uint16_t conn_handle, uint8_t reason)
{
(void) conn_handle;
(void) reason;
phoneConnected = false;
phoneReady = false;
phoneConnHandle = BLE_CONN_HANDLE_INVALID;
Serial.println("PHONE DISCONNECTED");
}
// ============================================================================
// ADVERTISEMENT NAME PARSING
// ============================================================================
// Walks the raw AD structures in an advertisement/scan-response payload
// looking for the Complete or Shortened Local Name field. Pure read of
// data already delivered in the report — no GATT connection needed.
bool extractAdvName(const ble_gap_evt_adv_report_t* report, char* outName, size_t outSize)
{
const uint8_t* data = report->data.p_data;
uint16_t len = report->data.len;
uint16_t offset = 0;
while (offset + 1 < len)
{
uint8_t fieldLen = data[offset];
if (fieldLen == 0) break;
if (offset + 1 + fieldLen > len) break;
uint8_t adType = data[offset + 1];
if (adType == BLE_GAP_AD_TYPE_COMPLETE_LOCAL_NAME ||
adType == BLE_GAP_AD_TYPE_SHORT_LOCAL_NAME)
{
uint8_t nameLen = fieldLen - 1;
if (nameLen >= outSize) nameLen = (uint8_t)(outSize - 1);
memcpy(outName, &data[offset + 2], nameLen);
outName[nameLen] = '\0';
return true;
}
offset = (uint16_t)(offset + 1 + fieldLen);
}
return false;
}
bool addrEquals(const ble_gap_addr_t& a, const ble_gap_addr_t& b)
{
if (a.addr_type != b.addr_type) return false;
return memcmp(a.addr, b.addr, BLE_GAP_ADDR_LEN) == 0;
}
// ============================================================================
// BOOT BANNER / RESET REASON
// ============================================================================
void printBootBanner()
{
Serial.println("========================");
Serial.println("BOXING HUB BOOT");
Serial.println("========================");
Serial.print("Build date: ");
Serial.println(__DATE__);
Serial.print("Build time: ");
Serial.println(__TIME__);
Serial.println("========================");
}
void printResetReason()
{
uint32_t resetReas = NRF_POWER->RESETREAS;
Serial.print("Reset reason: ");
if (resetReas == 0)
{
Serial.print("POWERON ");
}
if (resetReas & POWER_RESETREAS_RESETPIN_Msk) Serial.print("RESETPIN ");
if (resetReas & POWER_RESETREAS_DOG_Msk) Serial.print("WATCHDOG ");
if (resetReas & POWER_RESETREAS_LOCKUP_Msk) Serial.print("LOCKUP ");
if (resetReas & POWER_RESETREAS_SREQ_Msk) Serial.print("SREQ ");
if (resetReas & POWER_RESETREAS_OFF_Msk) Serial.print("OFF ");
if (resetReas & POWER_RESETREAS_LPCOMP_Msk) Serial.print("LPCOMP ");
if (resetReas & POWER_RESETREAS_DIF_Msk) Serial.print("DIF ");
if (resetReas & POWER_RESETREAS_NFC_Msk) Serial.print("NFC ");
if (resetReas & POWER_RESETREAS_VBUS_Msk) Serial.print("VBUS ");
Serial.println();
// Nordic-recommended clear: writing back exactly the bits read clears
// only those bits.
NRF_POWER->RESETREAS = resetReas;
}
// ============================================================================
// LED
// ============================================================================
// Board LED is active-LOW; analogWrite lets us mix real colors (e.g.
// orange) instead of being limited to the 8 on/off combinations.
void setLedColor(uint8_t r, uint8_t g, uint8_t b)
{
analogWrite(LED_RED, 255 - r);
analogWrite(LED_GREEN, 255 - g);
analogWrite(LED_BLUE, 255 - b);
}
void triggerDiscoveryFailureBlink()
{
discoveryFailureBlinkUntilMs = millis() + 2000; // blink orange for 2s
}
void updateLed()
{
uint32_t now = millis();
bool blinkOn = ((now / 200) % 2) == 0;
// Priority 1: transient discovery-failure indication.
if (now < discoveryFailureBlinkUntilMs)
{
setLedColor(blinkOn ? 255 : 0, blinkOn ? 140 : 0, 0); // orange blink
return;
}
bool anyGloveReady = leftLink.ready || rightLink.ready;
// Priority 2: phone disconnected while at least one glove is ready.
if (!phoneConnected && anyGloveReady)
{
setLedColor(blinkOn ? 255 : 0, 0, 0); // red blink
return;
}
// Priority 3: both gloves ready.
if (leftLink.ready && rightLink.ready)
{
setLedColor(0, 255, 0); // solid green
return;
}
// Priority 4: exactly one glove ready.
if (anyGloveReady)
{
setLedColor(255, 255, 0); // solid yellow
return;
}
// Default: still scanning for gloves.
setLedColor(0, 0, 255); // solid blue
}
// ============================================================================
// FREE MEMORY (this core's FreeRTOS port wraps malloc()/free() from newlib
// instead of compiling in heap_4.c, so xPortGetFreeHeapSize() does not
// exist to link against here. This is the standard fallback: the gap
// between the current stack pointer and the current top of the malloc
// heap (sbrk(0)) is real, measured free space.)
// ============================================================================
extern "C" char *sbrk(int i);
static uint32_t freeMemoryBytes()
{
char stackTop;
return (uint32_t)(&stackTop - reinterpret_cast<char*>(sbrk(0)));
}
// ============================================================================
// DIAGNOSTICS — printed once per second
// ============================================================================
void printDiagnostics()
{
Serial.println("---- DIAG ----");
Serial.print("LEFT_CONNECTED: ");
Serial.println(leftLink.connected ? "yes" : "no");
Serial.print("LEFT_READY: ");
Serial.println(leftLink.ready ? "yes" : "no");
Serial.print("LEFT_PACKETS_PER_SEC: ");
Serial.println(leftLink.packetsThisSec);
Serial.print("RIGHT_CONNECTED: ");
Serial.println(rightLink.connected ? "yes" : "no");
Serial.print("RIGHT_READY: ");
Serial.println(rightLink.ready ? "yes" : "no");
Serial.print("RIGHT_PACKETS_PER_SEC: ");
Serial.println(rightLink.packetsThisSec);
Serial.print("PHONE_CONNECTED: ");
Serial.println(phoneConnected ? "yes" : "no");
Serial.print("PHONE_NOTIFY_ENABLED: ");
Serial.println(phoneReady ? "yes" : "no");
Serial.print("SCAN_RUNNING: ");
Serial.println(Bluefruit.Scanner.isRunning() ? "yes" : "no");
Serial.print("BAG_IMU_READS_PER_SEC: ");
Serial.println(bagImuReadsThisSec);
Serial.print("BAG_PACKETS_SENT_TOTAL: ");
Serial.println(bagPacketsSentTotal);
Serial.print("BAG_PACKETS_SENT_PER_SEC: ");
Serial.println(bagPacketsSentThisSec);
Serial.print("BAG_PACKETS_SKIPPED_PHONE_NOT_READY: ");
Serial.println(bagPacketsSkippedThisSec);
Serial.print("FREE_HEAP: ");
Serial.println(freeMemoryBytes());
if (leftLink.ready && leftLink.rssiMonitoring)
{
BLEConnection* c = Bluefruit.Connection(leftLink.connHandle);
Serial.print("RSSI_LEFT: ");
Serial.println(c ? c->getRssi() : 0);
}
else
{
Serial.println("RSSI_LEFT: unavailable");
}
if (rightLink.ready && rightLink.rssiMonitoring)
{
BLEConnection* c = Bluefruit.Connection(rightLink.connHandle);
Serial.print("RSSI_RIGHT: ");
Serial.println(c ? c->getRssi() : 0);
}
else
{
Serial.println("RSSI_RIGHT: unavailable");
}
Serial.println("--------------");
}
#include <bluefruit.h>
#include <Wire.h>
#include "LSM6DS3.h"
#include <nrf.h>
// ============================================================================
// GLOVE IDENTITY — change this one line per build
// ============================================================================
#define GLOVE_ID 'R' // 'L' for left glove, 'R' for right glove
// ============================================================================
// SAMPLING CONFIG
// ============================================================================
const uint32_t SAMPLE_INTERVAL_MS = 100; // 100 ms for now (testing)
#define PACKET_VERSION 1
#if GLOVE_ID == 'L'
#define SENSOR_ID 1
#elif GLOVE_ID == 'R'
#define SENSOR_ID 2
#else
#error "GLOVE_ID must be 'L' or 'R'"
#endif
struct __attribute__((packed)) ImuPacket
{
uint8_t version;
uint8_t sensorId;
uint8_t sequence;
uint8_t reserved;
uint32_t timestamp;
int16_t ax;
int16_t ay;
int16_t az;
int16_t gx;
int16_t gy;
int16_t gz;
};
static_assert(sizeof(ImuPacket) == 20, "ImuPacket must be 20 bytes");
// ============================================================================
// BLE OBJECTS
// ============================================================================
BLEUart bleuart;
BLEDis bledis;
// ============================================================================
// IMU
// ============================================================================
LSM6DS3 imu(I2C_MODE, 0x6A);
bool imuOk = false;
// ============================================================================
// BATTERY (XIAO nRF52840 Sense known pins)
// ============================================================================
// PIN_VBAT / VBAT_ENABLE are provided by the Seeed board variant files.
// VBAT_ENABLE is held LOW permanently (per Seeed guidance — do not toggle
// it per-reading) to connect the onboard voltage divider to PIN_VBAT.
#if defined(PIN_VBAT) && defined(VBAT_ENABLE)
#define VBAT_SUPPORTED 1
static const float VBAT_ADC_REFERENCE_MV = 3600.0f; // internal ref, mV
static const float VBAT_ADC_MAX_COUNT = 4096.0f; // 12-bit
static const float VBAT_DIVIDER_RATIO = 1510.0f / 510.0f; // (1M+510k)/510k
#else
#define VBAT_SUPPORTED 0
#endif
// ============================================================================
// STATE
// ============================================================================
volatile bool bleConnected = false;
uint32_t lastSampleMs = 0;
uint32_t lastDiagMs = 0;
// Diagnostic counters (reset each 1-second window where noted)
uint32_t totalPacketsSent = 0;
uint32_t packetsSentThisSec = 0;
uint32_t imuReadsThisSec = 0;
uint32_t totalPacketsSkipped = 0;
uint8_t packetSequence = 0;
// LED error blink state
bool imuErrorLedState = false;
uint32_t lastImuErrorBlinkMs = 0;
// ============================================================================
// FORWARD DECLARATIONS
// ============================================================================
void startAdvertising();
void connect_callback(uint16_t conn_handle);
void disconnect_callback(uint16_t conn_handle, uint8_t reason);
void printBootBanner();
void printResetReason();
void setLed(bool r, bool g, bool b);
void updateImuErrorLed();
void printDiagnostics();
// ============================================================================
// SETUP
// ============================================================================
void setup()
{
Serial.begin(115200);
uint32_t serialWaitStart = millis();
while (!Serial && (millis() - serialWaitStart) < 3000)
{
delay(10);
}
// ---- Boot banner ----
printBootBanner();
// ---- Reset reason (read, print, then clear) ----
printResetReason();
// ---- LEDs ----
pinMode(LED_RED, OUTPUT);
pinMode(LED_GREEN, OUTPUT);
pinMode(LED_BLUE, OUTPUT);
setLed(false, false, false); // off (LEDs are active LOW on this board)
// ---- Battery ADC setup ----
#if VBAT_SUPPORTED
pinMode(VBAT_ENABLE, OUTPUT);
digitalWrite(VBAT_ENABLE, LOW);
pinMode(PIN_VBAT, INPUT);
analogReadResolution(12);
#endif
// ---- IMU init ----
Wire.begin();
if (imu.begin() != 0)
{
Serial.println("IMU INIT FAILED");
imuOk = false;
}
else
{
Serial.println("IMU INIT OK");
imuOk = true;
}
// ---- BLE init ----
Bluefruit.begin();
Bluefruit.setTxPower(4);
char bleName[24];
snprintf(bleName, sizeof(bleName), "XIAO-Glove-%c", (char)GLOVE_ID);
Bluefruit.setName(bleName);
Bluefruit.Periph.setConnectCallback(connect_callback);
Bluefruit.Periph.setDisconnectCallback(disconnect_callback);
bledis.setManufacturer("Seeed Studio");
bledis.setModel("XIAO nRF52840 Sense Boxing Glove");
bledis.begin();
bleuart.begin();
startAdvertising();
lastSampleMs = millis();
lastDiagMs = millis();
}
// ============================================================================
// LOOP
// ============================================================================
void loop()
{
uint32_t now = millis();
// ---- IMU error LED (blinks continuously if IMU failed to init) ----
updateImuErrorLed();
// ---- Sample + send, only while connected, at the configured interval ----
if ((now - lastSampleMs) >= SAMPLE_INTERVAL_MS)
{
lastSampleMs = now;
if (bleConnected && imuOk)
{
float ax = imu.readFloatAccelX();
float ay = imu.readFloatAccelY();
float az = imu.readFloatAccelZ();
float gx = imu.readFloatGyroX();
float gy = imu.readFloatGyroY();
float gz = imu.readFloatGyroZ();
imuReadsThisSec++;
if (bleuart.notifyEnabled())
{
ImuPacket pkt;
pkt.version = PACKET_VERSION;
pkt.sensorId = SENSOR_ID;
pkt.sequence = packetSequence++;
pkt.reserved = 0;
pkt.timestamp = now;
// accel: g -> milli-g
pkt.ax = (int16_t)(ax * 1000.0f);
pkt.ay = (int16_t)(ay * 1000.0f);
pkt.az = (int16_t)(az * 1000.0f);
// gyro: deg/sec -> 0.1 deg/sec
pkt.gx = (int16_t)(gx * 10.0f);
pkt.gy = (int16_t)(gy * 10.0f);
pkt.gz = (int16_t)(gz * 10.0f);
bleuart.write((uint8_t*)&pkt, sizeof(pkt));
totalPacketsSent++;
packetsSentThisSec++;
}
else
{
// Connected at the link layer but the central hasn't enabled
// notifications yet — don't build up any backlog, just skip.
totalPacketsSkipped++;
}
}
else if (!bleConnected)
{
// Not connected: do nothing. No buffering, no queueing.
totalPacketsSkipped++;
}
}
// ---- Diagnostics, once per second ----
if ((now - lastDiagMs) >= 1000)
{
lastDiagMs = now;
printDiagnostics();
packetsSentThisSec = 0;
imuReadsThisSec = 0;
}
}
// ============================================================================
// BLE ADVERTISING
// ============================================================================
void startAdvertising()
{
Bluefruit.Advertising.clearData();
Bluefruit.ScanResponse.clearData();
Bluefruit.Advertising.addFlags(BLE_GAP_ADV_FLAGS_LE_ONLY_GENERAL_DISC_MODE);
Bluefruit.Advertising.addTxPower();
Bluefruit.Advertising.addService(bleuart);
Bluefruit.ScanResponse.addName();
Bluefruit.Advertising.restartOnDisconnect(true);
Bluefruit.Advertising.setInterval(32, 244); // 20ms - 152.5ms
Bluefruit.Advertising.setFastTimeout(30);
Bluefruit.Advertising.start(0); // 0 = advertise forever until connected
Serial.println("ADVERTISING STARTED");
if (imuOk)
{
setLed(false, false, true); // blue = advertising
}
}
// ============================================================================
// BLE CALLBACKS (kept short — no blocking work here)
// ============================================================================
void connect_callback(uint16_t conn_handle)
{
(void) conn_handle;
bleConnected = true;
Serial.println("BLE CONNECTED");
setLed(false, true, false); // green = connected
}
void disconnect_callback(uint16_t conn_handle, uint8_t reason)
{
(void) conn_handle;
bleConnected = false;
Serial.print("BLE DISCONNECTED reason=0x");
Serial.println(reason, HEX);
// Bluefruit's restartOnDisconnect(true) handles re-advertising for us.
// We just reflect the LED state; the "ADVERTISING STARTED" print for
// the automatic restart is not re-emitted here since Bluefruit does not
// expose a callback for it — the LED still switches back to blue.
if (imuOk)
{
setLed(false, false, true); // blue = advertising again
}
}
// ============================================================================
// BOOT BANNER
// ============================================================================
void printBootBanner()
{
char nameBuf[24];
snprintf(nameBuf, sizeof(nameBuf), "XIAO-Glove-%c", (char)GLOVE_ID);
Serial.println("========================");
Serial.println("GLOVE BOOT");
Serial.print("Name: ");
Serial.println(nameBuf);
Serial.print("Sample interval: ");
Serial.print(SAMPLE_INTERVAL_MS);
Serial.println(" ms");
Serial.print("Build date: ");
Serial.println(__DATE__);
Serial.print("Build time: ");
Serial.println(__TIME__);
Serial.println("========================");
}
// ============================================================================
// RESET REASON (nRF52840 RESETREAS) — read, print, then clear
// ============================================================================
void printResetReason()
{
uint32_t resetReas = NRF_POWER->RESETREAS;
Serial.print("Reset reason: ");
if (resetReas == 0)
{
Serial.print("POWERON ");
}
if (resetReas & POWER_RESETREAS_RESETPIN_Msk) Serial.print("RESETPIN ");
if (resetReas & POWER_RESETREAS_DOG_Msk) Serial.print("WATCHDOG ");
if (resetReas & POWER_RESETREAS_LOCKUP_Msk) Serial.print("LOCKUP ");
if (resetReas & POWER_RESETREAS_SREQ_Msk) Serial.print("SREQ ");
if (resetReas & POWER_RESETREAS_OFF_Msk) Serial.print("OFF ");
if (resetReas & POWER_RESETREAS_LPCOMP_Msk) Serial.print("LPCOMP ");
if (resetReas & POWER_RESETREAS_DIF_Msk) Serial.print("DIF ");
if (resetReas & POWER_RESETREAS_NFC_Msk) Serial.print("NFC ");
if (resetReas & POWER_RESETREAS_VBUS_Msk) Serial.print("VBUS ");
Serial.println();
// Nordic-recommended clear: write back exactly the bits that were read,
// which clears only those bits and leaves the rest untouched.
NRF_POWER->RESETREAS = resetReas;
}
// ============================================================================
// FREE MEMORY (this core's FreeRTOS port wraps malloc()/free() from newlib
// instead of compiling in heap_4.c, so xPortGetFreeHeapSize() does not
// exist to link against here. This is the standard fallback: the gap
// between the current stack pointer and the current top of the malloc
// heap (sbrk(0)) is real, measured free space.)
// ============================================================================
extern "C" char *sbrk(int i);
static uint32_t freeMemoryBytes()
{
char stackTop;
return (uint32_t)(&stackTop - reinterpret_cast<char*>(sbrk(0)));
}
// ============================================================================
// LED HELPER
// ============================================================================
// XIAO nRF52840 (Sense) onboard RGB LED is active LOW.
void setLed(bool r, bool g, bool b)
{
digitalWrite(LED_RED, r ? LOW : HIGH);
digitalWrite(LED_GREEN, g ? LOW : HIGH);
digitalWrite(LED_BLUE, b ? LOW : HIGH);
}
void updateImuErrorLed()
{
if (imuOk)
{
return;
}
uint32_t now = millis();
if ((now - lastImuErrorBlinkMs) >= 300)
{
lastImuErrorBlinkMs = now;
imuErrorLedState = !imuErrorLedState;
setLed(imuErrorLedState, false, false); // red blink = IMU error
}
}
// ============================================================================
// DIAGNOSTICS — printed once per second
// ============================================================================
void printDiagnostics()
{
Serial.println("---- DIAG ----");
Serial.print("GLOVE_ID: ");
Serial.println((char)GLOVE_ID);
Serial.print("UPTIME_MS: ");
Serial.println(millis());
Serial.print("BLE_CONNECTED: ");
Serial.println(bleConnected ? "yes" : "no");
Serial.print("PACKETS_SENT_TOTAL: ");
Serial.println(totalPacketsSent);
Serial.print("PACKETS_SENT_PER_SEC: ");
Serial.println(packetsSentThisSec);
Serial.print("IMU_READS_PER_SEC: ");
Serial.println(imuReadsThisSec);
Serial.print("PACKETS_SKIPPED_DISCONNECTED: ");
Serial.println(totalPacketsSkipped);
Serial.print("FREE_HEAP: ");
Serial.println(freeMemoryBytes());
#if VBAT_SUPPORTED
{
uint32_t adcCount = analogRead(PIN_VBAT);
float adcMillivolts = (adcCount / VBAT_ADC_MAX_COUNT) * VBAT_ADC_REFERENCE_MV;
float batteryVolts = (adcMillivolts * VBAT_DIVIDER_RATIO) / 1000.0f;
Serial.print("VBAT: ");
Serial.print(batteryVolts, 2);
Serial.println("V");
}
#else
Serial.println("VBAT: not implemented");
#endif
Serial.println("--------------");
}
With TxPower set to 8 dBm, the RSSI was -16 dBm when the devices were placed facing each other at a distance of 2 cm.
For your reference.
Hi there,
So , I took a close look at your “vibe-coded”
setup because you mentioned you were having issues with it advertising or dropping off at a distance. To be blunt, this understanding of how the active scanning callback handles these packets is a bit fried, and the code as written is playing a high-speed game of tag where the Hub keeps closing its eyes right before the Glove can yell its name.
it took my Nrf_connect for desktops a few seconds to show what was wrong.
Great Tool.
Here is exactly why it’s breaking and how to fix it so you can actually get an accurate benchmark on your antenna distance:
1. The Bluefruit.Scanner.resume() Trap (Why it doesn’t work)
In your Hub’s scan_callback, you have this logic:
if (!gotName)
{
Bluefruit.Scanner.resume();
return;
}
Because you put Bluefruit.ScanResponse.addName(); in the Glove code, the Glove’s local name only lives in the scan-response packet, not the primary advertisement.
When the Hub performs an active scan, the hardware does a quick two-step dance: it hears the primary packet (no name), and then requests the scan response. Because your Hub code hits !gotName on that very first packet, it immediately calls Bluefruit.Scanner.resume(). Calling resume() right in the middle of a hardware handshake completely disrupts the BLE controller’s state machine. It forces the radio to reset and drop the incoming scan response packet. If your room has background BLE noise (smart TVs, phones, beacons), the Hub spends all its time resetting its scanner on background noise and missing your gloves entirely.
2. The Distance Issue
When you are testing antenna range, you cannot rely on a multi-part Scan Response handshake. If a single packet drops due to distance or interference, the handshake fails, and your code drops the connection. To get maximum range, the Hub needs to see who the Glove is on the very first packet it broadcasts.
The Fix
Step 1: Fix the Glove Code Stop hiding the name in the scan response. Move it directly to the primary advertising packet so it broadcasts constantly. Update startAdvertising() in your Glove code to this:
void startAdvertising()
{
Bluefruit.Advertising.clearData();
// Put the name directly in the main Advertisement packet
Bluefruit.Advertising.addFlags(BLE_GAP_ADV_FLAGS_LE_ONLY_GENERAL_DISC_MODE);
Bluefruit.Advertising.addTxPower();
Bluefruit.Advertising.addName(); // <--- MOVE THIS HERE
Bluefruit.Advertising.addService(bleuart);
// Leave ScanResponse clean
Bluefruit.ScanResponse.clearData();
Bluefruit.Advertising.restartOnDisconnect(true);
Bluefruit.Advertising.setInterval(32, 244);
Bluefruit.Advertising.setFastTimeout(30);
Bluefruit.Advertising.start(0);
Serial.println("ADVERTISING STARTED");
if (imuOk) setLed(false, false, true);
}
Step 2: Fix the Hub Code Now that the name is guaranteed to be in the primary advertisement, you don’t have to worry about a race condition. Clean up your Hub’s scan_callback so it safely ignores nameless background noise without restarting the radio constantly:
void scan_callback(ble_gap_evt_adv_report_t* report)
{
char advName[32] = { 0 };
bool gotName = extractAdvName(report, advName, sizeof(advName));
// If no name is found on this packet pass, just let the scanner keep rolling
if (!gotName)
{
Bluefruit.Scanner.resume();
return;
}
// We now have a guaranteed name on the first pass!
if (strcmp(advName, LEFT_NAME) == 0)
{
if (!leftLink.ready && !leftLink.connecting)
{
Serial.println("SCANNER: found LEFT, connecting");
leftLink.connecting = true;
leftLink.pendingAddr = report->peer_addr;
leftLink.hasPendingAddr = true;
Bluefruit.Central.connect(report);
return;
}
}
else if (strcmp(advName, RIGHT_NAME) == 0)
{
if (!rightLink.ready && !rightLink.connecting)
{
Serial.println("SCANNER: found RIGHT, connecting");
rightLink.connecting = true;
rightLink.pendingAddr = report->peer_addr;
rightLink.hasPendingAddr = true;
Bluefruit.Central.connect(report);
return;
}
}
Bluefruit.Scanner.resume();
}
Swap those modifications into your sketches. It will eliminate the connection blindspots, stop the desktop nRF Connect app from showing the device as “N/A”, and give you a rock-solid link to actually test your true antenna distance.
HTH
GL PJ
hey! I added the things you suggested, I also set the transmitting power 8, unfortunately the RSSI remained very bad in both cases when I did the tests. between 80-90dBm. because of this, only received 9-10 packets (combined). The expected is 20. The connection remained more stable since your changes though when I did the test while all 3 sensors were next to each other. so thank you for that.
not sure what’s next.
- should I add a dedicated antenna for all three? the issue is I am not sure if what I am trying to do is achievable or not with the current hardware setup. I did a test where I switched off the hub, and one of the glove. I connected the last glove to the phone so test dBm, it never went better than 67, and then it was like 2cm away :)…when it was 3m away it was 80dBm…in both cases, it was clean line of sight, antenna exposed, based on the comms distance test report and what I read online, my dBms are very very bad
- or perhaps I should not even sent the data to the phone at all, rather than sending so much data to the phone, maybe I should process data on the sensors first, and in every 200-300ms I send the recognized/processed data.
added the changed code for reference below
/*
* ============================================================================
* XIAO nRF52840 Sense — Boxing Hub Firmware
* ============================================================================
*
* Board: Seeed XIAO nRF52840 Sense
* BLE stack: Adafruit Bluefruit (nRF52 core)
*
* Role: this board is BOTH a BLE central (connects to two glove
* peripherals) AND a BLE peripheral (exposes one BLE UART service to a
* phone). The phone only ever talks to the hub — it never sees the
* gloves directly.
*
* Design goals for this firmware: reliability and simplicity over
* performance. No buffering, no batching, no packet merging, no
* reconnection cleverness beyond "reconnect and start over". If
* something goes wrong with one glove, only that glove is affected.
* ============================================================================
*/
#include <bluefruit.h>
#include <Wire.h>
#include "LSM6DS3.h"
#include <nrf.h>
// ============================================================================
// SERIAL DEBUG SWITCH
// ============================================================================
// When 0 (default), continuous raw per-sample Serial prints are suppressed
// so they cannot interfere with BLE timing / packet throughput. Set to 1 to
// re-enable raw sample printing for debugging. This does not affect what is
// sent to the phone, nor any event/diagnostic Serial output.
#define PRINT_RAW_SAMPLES 0
// ============================================================================
// IDENTITY / NAMES
// ============================================================================
static const char* HUB_NAME = "BoxingGlove-Hub";
static const char* LEFT_NAME = "XIAO-Glove-L";
static const char* RIGHT_NAME = "XIAO-Glove-R";
struct __attribute__((packed)) ImuPacket
{
uint8_t version;
uint8_t sensorId;
uint8_t sequence;
uint8_t reserved;
uint32_t timestamp;
int16_t ax;
int16_t ay;
int16_t az;
int16_t gx;
int16_t gy;
int16_t gz;
};
static_assert(sizeof(ImuPacket) == 20, "ImuPacket must be 20 bytes");
// ============================================================================
// BAG IMU (the hub's own onboard sensor — third stream to the phone,
// tagged 'H', same rules as the gloves: sent only if phone is ready,
// never buffered/queued if not)
// ============================================================================
LSM6DS3 bagImu(I2C_MODE, 0x6A);
bool bagImuOk = false;
const uint32_t BAG_SAMPLE_INTERVAL_MS = 100;
uint32_t lastBagSampleMs = 0;
uint32_t bagImuReadsThisSec = 0;
// The hub streams its own IMU to the phone as a third sensor, using the
// same CSV line shape the gloves use, tagged with its own ID so the
// phone-side code can tell it apart from LEFT ('L') and RIGHT ('R').
const char BAG_SENSOR_ID = 'H';
uint32_t bagPacketsSentTotal = 0;
uint32_t bagPacketsSentThisSec = 0;
uint32_t bagPacketsSkippedThisSec = 0;
// ============================================================================
// BLE OBJECTS
// ============================================================================
// Peripheral side: the one service the phone connects to.
BLEUart bleuart;
// Central side: one independent client UART per glove.
BLEClientUart leftClient;
BLEClientUart rightClient;
// Max bytes we'll ever pull out of a glove's UART in one read. The glove
// sends a single short CSV line per sample, so this is generous headroom.
static const size_t GLOVE_PACKET_BUF_SIZE = 128;
// ============================================================================
// PER-GLOVE STATE
// ============================================================================
// Each glove gets its own independent block of state. Nothing here is
// shared between LEFT and RIGHT except the struct definition itself —
// every decision is made against one specific instance.
struct GloveLink
{
const char* name;
BLEClientUart* client;
uint16_t connHandle;
bool connecting;
bool connected;
bool ready;
ble_gap_addr_t pendingAddr;
bool hasPendingAddr;
uint32_t packetNumber;
uint32_t packetsReceivedTotal;
uint32_t packetsThisSec;
bool rssiMonitoring;
uint8_t rxBuffer[256];
size_t rxLength;
};
GloveLink leftLink = { LEFT_NAME, &leftClient, BLE_CONN_HANDLE_INVALID, false, false, false, {}, false, 0, 0, 0, false };
GloveLink rightLink = { RIGHT_NAME, &rightClient, BLE_CONN_HANDLE_INVALID, false, false, false, {}, false, 0, 0, 0, false };
// ============================================================================
// PHONE STATE
// ============================================================================
bool phoneConnected = false;
bool phoneReady = false; // true once the phone has enabled notifications
uint16_t phoneConnHandle = BLE_CONN_HANDLE_INVALID;
// ============================================================================
// LED (RGB, active driven via analogWrite so we can mix real colors —
// 0 = fully off, 255 = fully on, board is active-LOW so we invert)
// ============================================================================
uint32_t discoveryFailureBlinkUntilMs = 0; // orange blink runs until this time
// ============================================================================
// DIAGNOSTICS TIMER
// ============================================================================
uint32_t lastDiagMs = 0;
// ============================================================================
// FORWARD DECLARATIONS
// ============================================================================
void printBootBanner();
void printResetReason();
void startScanIfNeeded();
void scan_callback(ble_gap_evt_adv_report_t* report);
void cent_connect_callback(uint16_t conn_handle);
void cent_disconnect_callback(uint16_t conn_handle, uint8_t reason);
void leftClient_rx_callback(BLEClientUart& uart);
void rightClient_rx_callback(BLEClientUart& uart);
void handleGlovePacket(GloveLink& link, BLEClientUart& uart);
void prph_connect_callback(uint16_t conn_handle);
void prph_disconnect_callback(uint16_t conn_handle, uint8_t reason);
bool extractAdvName(const ble_gap_evt_adv_report_t* report, char* outName, size_t outSize);
bool addrEquals(const ble_gap_addr_t& a, const ble_gap_addr_t& b);
void setLedColor(uint8_t r, uint8_t g, uint8_t b);
void updateLed();
void triggerDiscoveryFailureBlink();
void printDiagnostics();
// ============================================================================
// SETUP
// ============================================================================
void setup()
{
Serial.begin(115200);
uint32_t serialWaitStart = millis();
while (!Serial && (millis() - serialWaitStart) < 3000)
{
delay(10);
}
printBootBanner();
printResetReason();
// ---- LED ----
pinMode(LED_RED, OUTPUT);
pinMode(LED_GREEN, OUTPUT);
pinMode(LED_BLUE, OUTPUT);
setLedColor(0, 0, 0);
// ---- Bag IMU (hub's own onboard sensor) ----
Wire.begin();
if (bagImu.begin() != 0)
{
Serial.println("BAG IMU INIT FAILED");
bagImuOk = false;
}
else
{
Serial.println("BAG IMU INIT OK");
bagImuOk = true;
}
// ---- BLE bring-up ----
// 1 peripheral connection (the phone) + 2 central connections (the gloves).
Bluefruit.configPrphBandwidth(BANDWIDTH_MAX);
Bluefruit.configCentralBandwidth(BANDWIDTH_MAX);
Bluefruit.begin(1, 2);
Bluefruit.setTxPower(8);
Bluefruit.setName(HUB_NAME);
// Peripheral (phone-facing) callbacks
Bluefruit.Periph.setConnectCallback(prph_connect_callback);
Bluefruit.Periph.setDisconnectCallback(prph_disconnect_callback);
// Central (glove-facing) callbacks
Bluefruit.Central.setConnectCallback(cent_connect_callback);
Bluefruit.Central.setDisconnectCallback(cent_disconnect_callback);
// Phone-facing BLE UART service
bleuart.begin();
// Glove-facing BLE UART clients — completely independent objects,
// each with its own callback function (not a shared one).
leftClient.begin();
leftClient.setRxCallback(leftClient_rx_callback);
rightClient.begin();
rightClient.setRxCallback(rightClient_rx_callback);
// ---- Advertise to the phone ----
Bluefruit.Advertising.clearData();
Bluefruit.ScanResponse.clearData();
Bluefruit.Advertising.addFlags(BLE_GAP_ADV_FLAGS_LE_ONLY_GENERAL_DISC_MODE);
Bluefruit.Advertising.addTxPower();
Bluefruit.Advertising.addService(bleuart);
Bluefruit.ScanResponse.addName();
Bluefruit.Advertising.restartOnDisconnect(true);
Bluefruit.Advertising.setInterval(32, 244); // 20ms - 152.5ms
Bluefruit.Advertising.setFastTimeout(30);
Bluefruit.Advertising.start(0);
Serial.println("ADVERTISING STARTED (phone)");
// ---- Scan for gloves ----
// Active scanning is required so we actually receive the scan-response
// packet that carries each glove's advertised name.
Bluefruit.Scanner.setRxCallback(scan_callback);
Bluefruit.Scanner.restartOnDisconnect(true);
Bluefruit.Scanner.useActiveScan(true);
Bluefruit.Scanner.setInterval(160, 80);
Bluefruit.Scanner.start(0);
Serial.println("SCANNING STARTED (gloves)");
lastDiagMs = millis();
lastBagSampleMs = millis();
}
// ============================================================================
// LOOP
// ============================================================================
void loop()
{
uint32_t now = millis();
// ---- Bag IMU: read once per interval, forward to phone as a third
// sensor stream (same CSV shape as the gloves, tagged 'H'). Only sent
// while the phone is ready; never buffered if it isn't. ----
if (bagImuOk && (now - lastBagSampleMs) >= BAG_SAMPLE_INTERVAL_MS)
{
lastBagSampleMs = now;
float ax = bagImu.readFloatAccelX();
float ay = bagImu.readFloatAccelY();
float az = bagImu.readFloatAccelZ();
float gx = bagImu.readFloatGyroX();
float gy = bagImu.readFloatGyroY();
float gz = bagImu.readFloatGyroZ();
bagImuReadsThisSec++;
char line[96];
int len = snprintf(line, sizeof(line),
"%c,%lu,%.2f,%.2f,%.2f,%.2f,%.2f,%.2f\n",
BAG_SENSOR_ID,
(unsigned long)now,
ax, ay, az,
gx, gy, gz);
if (len > 0)
{
#if PRINT_RAW_SAMPLES
Serial.print("HUB: ");
Serial.print(line);
#endif
if (phoneReady)
{
bleuart.write((uint8_t*)line, (size_t)len);
bagPacketsSentTotal++;
bagPacketsSentThisSec++;
}
else
{
bagPacketsSkippedThisSec++;
}
}
else
{
// Phone not ready: drop this sample, don't queue it for later.
bagPacketsSkippedThisSec++;
}
}
// ---- Phone notify-enabled edge detection ----
// BLEUart doesn't need a CCCD callback for this — a cheap poll here is
// enough, and keeps this out of any BLE callback entirely.
bool notifyNow = bleuart.notifyEnabled();
if (notifyNow && !phoneReady)
{
phoneReady = true;
Serial.println("PHONE READY");
}
else if (!notifyNow && phoneReady)
{
phoneReady = false;
}
// ---- LED ----
updateLed();
// ---- Diagnostics, once per second ----
if ((now - lastDiagMs) >= 1000)
{
lastDiagMs = now;
printDiagnostics();
leftLink.packetsThisSec = 0;
rightLink.packetsThisSec = 0;
bagImuReadsThisSec = 0;
bagPacketsSentThisSec = 0;
bagPacketsSkippedThisSec = 0;
}
}
// ============================================================================
// SCANNER
// ============================================================================
// Fires for every advertisement AND every scan-response packet received
// (active scanning is on). The glove's name lives in its scan-response
// packet, so this callback may see a given physical glove twice — once
// with no name, once with the name. Only the one carrying a name that
// matches LEFT_NAME/RIGHT_NAME is ever acted on. Everything else is
// ignored and scanning resumes.
void scan_callback(ble_gap_evt_adv_report_t* report)
{
char advName[32] = { 0 };
bool gotName = extractAdvName(report, advName, sizeof(advName));
// If no name is found on this packet pass, just let the scanner keep rolling
if (!gotName)
{
Bluefruit.Scanner.resume();
return;
}
// We now have a guaranteed name on the first pass!
if (strcmp(advName, LEFT_NAME) == 0)
{
if (!leftLink.ready && !leftLink.connecting)
{
Serial.println("SCANNER: found LEFT, connecting");
leftLink.connecting = true;
leftLink.pendingAddr = report->peer_addr;
leftLink.hasPendingAddr = true;
Bluefruit.Central.connect(report);
return;
}
}
else if (strcmp(advName, RIGHT_NAME) == 0)
{
if (!rightLink.ready && !rightLink.connecting)
{
Serial.println("SCANNER: found RIGHT, connecting");
rightLink.connecting = true;
rightLink.pendingAddr = report->peer_addr;
rightLink.hasPendingAddr = true;
Bluefruit.Central.connect(report);
return;
}
}
Bluefruit.Scanner.resume();
}
void startScanIfNeeded()
{
if (leftLink.ready && rightLink.ready)
{
return; // both slots full, nothing to look for
}
if (!Bluefruit.Scanner.isRunning())
{
Bluefruit.Scanner.start(0);
}
}
// ============================================================================
// LEFT / RIGHT CONNECTION MANAGEMENT
// ============================================================================
// One shared entry point (Bluefruit only allows one central connect
// callback), but the FIRST thing it does is figure out — by address,
// recorded at scan time, never by getPeerName() — which independent
// GloveLink this event belongs to. Everything after that point only
// touches that one struct.
void cent_connect_callback(uint16_t conn_handle)
{
BLEConnection* connection = Bluefruit.Connection(conn_handle);
ble_gap_addr_t peerAddr = connection->getPeerAddr();
GloveLink* link = nullptr;
if (leftLink.connecting && leftLink.hasPendingAddr && addrEquals(peerAddr, leftLink.pendingAddr))
{
link = &leftLink;
}
else if (rightLink.connecting && rightLink.hasPendingAddr && addrEquals(peerAddr, rightLink.pendingAddr))
{
link = &rightLink;
}
if (link == nullptr)
{
// Shouldn't happen — we only ever call connect() right after
// recording the pending address — but fail safe if it does.
Serial.println("HUB: connected peer did not match any pending glove, disconnecting");
Bluefruit.disconnect(conn_handle);
startScanIfNeeded();
return;
}
link->connHandle = conn_handle;
link->connected = true;
link->hasPendingAddr = false;
Serial.print(link->name);
Serial.println(" CONNECTED");
connection->monitorRssi();
link->rssiMonitoring = true;
// ---- Discover UART, then enable notifications ----
bool discoverOk = link->client->discover(conn_handle);
if (!discoverOk)
{
Serial.print(link->name);
Serial.println(" UART DISCOVERY FAILED — disconnecting this glove only");
link->connected = false;
link->connecting = false;
link->connHandle = BLE_CONN_HANDLE_INVALID;
link->rssiMonitoring = false;
triggerDiscoveryFailureBlink();
Bluefruit.disconnect(conn_handle);
startScanIfNeeded();
return;
}
link->client->enableTXD();
link->ready = true;
link->connecting = false;
Serial.print(link->name);
Serial.println(" READY");
// Keep scanning if the other glove still isn't ready.
startScanIfNeeded();
}
void cent_disconnect_callback(uint16_t conn_handle, uint8_t reason)
{
GloveLink* link = nullptr;
if (leftLink.connHandle == conn_handle)
{
link = &leftLink;
}
else if (rightLink.connHandle == conn_handle)
{
link = &rightLink;
}
if (link == nullptr)
{
startScanIfNeeded();
return;
}
Serial.print(link->name);
Serial.print(" DISCONNECTED reason=0x");
Serial.println(reason, HEX);
link->connected = false;
link->ready = false;
link->connecting = false;
link->connHandle = BLE_CONN_HANDLE_INVALID;
link->hasPendingAddr = false;
link->rssiMonitoring = false;
startScanIfNeeded();
}
// ============================================================================
// GLOVE PACKET RECEPTION — one independent callback per glove
// ============================================================================
void leftClient_rx_callback(BLEClientUart& uart)
{
handleGlovePacket(leftLink, uart);
}
void rightClient_rx_callback(BLEClientUart& uart)
{
handleGlovePacket(rightLink, uart);
}
// Not "shared guessing logic" — the caller has already told us exactly
// which glove this is. This just avoids writing the same ten lines twice.
void handleGlovePacket(GloveLink& link, BLEClientUart& uart)
{
uint8_t temp[64];
while (uart.available())
{
int len = uart.read(temp, sizeof(temp));
if (len <= 0)
return;
// Append new bytes into receive buffer
if (link.rxLength + len > sizeof(link.rxBuffer))
{
Serial.print(link.name);
Serial.println(": RX buffer overflow");
link.rxLength = 0;
return;
}
memcpy(link.rxBuffer + link.rxLength, temp, len);
link.rxLength += len;
// Process every complete packet
while (link.rxLength >= sizeof(ImuPacket))
{
ImuPacket pkt;
memcpy(&pkt, link.rxBuffer, sizeof(ImuPacket));
// Remove processed packet from buffer
memmove(link.rxBuffer,
link.rxBuffer + sizeof(ImuPacket),
link.rxLength - sizeof(ImuPacket));
link.rxLength -= sizeof(ImuPacket);
link.packetNumber++;
link.packetsReceivedTotal++;
link.packetsThisSec++;
// =====================================================
// HUB SERIAL MONITOR
// =====================================================
#if PRINT_RAW_SAMPLES
Serial.print(link.name);
Serial.print(": ");
Serial.print(pkt.sensorId == 1 ? 'L' : 'R');
Serial.print(",");
Serial.print(pkt.timestamp);
Serial.print(",");
Serial.print(pkt.ax / 1000.0f, 2);
Serial.print(",");
Serial.print(pkt.ay / 1000.0f, 2);
Serial.print(",");
Serial.print(pkt.az / 1000.0f, 2);
Serial.print(",");
Serial.print(pkt.gx / 10.0f, 2);
Serial.print(",");
Serial.print(pkt.gy / 10.0f, 2);
Serial.print(",");
Serial.println(pkt.gz / 10.0f, 2);
#endif
// =====================================================
// PHONE (CSV for now)
// =====================================================
if (phoneReady)
{
char line[96];
int outLen = snprintf(
line,
sizeof(line),
"%c,%lu,%.2f,%.2f,%.2f,%.2f,%.2f,%.2f\n",
pkt.sensorId == 1 ? 'L' : 'R',
(unsigned long)pkt.timestamp,
pkt.ax / 1000.0f,
pkt.ay / 1000.0f,
pkt.az / 1000.0f,
pkt.gx / 10.0f,
pkt.gy / 10.0f,
pkt.gz / 10.0f);
if (outLen > 0)
{
bleuart.write((uint8_t*)line, (size_t)outLen);
}
}
}
}
}
// ============================================================================
// PHONE (peripheral) CALLBACKS — small, flags + a print only
// ============================================================================
void prph_connect_callback(uint16_t conn_handle)
{
phoneConnHandle = conn_handle;
phoneConnected = true;
phoneReady = false; // notify-enabled state is edge-detected in loop()
Serial.println("PHONE CONNECTED");
}
void prph_disconnect_callback(uint16_t conn_handle, uint8_t reason)
{
(void) conn_handle;
(void) reason;
phoneConnected = false;
phoneReady = false;
phoneConnHandle = BLE_CONN_HANDLE_INVALID;
Serial.println("PHONE DISCONNECTED");
}
// ============================================================================
// ADVERTISEMENT NAME PARSING
// ============================================================================
// Walks the raw AD structures in an advertisement/scan-response payload
// looking for the Complete or Shortened Local Name field. Pure read of
// data already delivered in the report — no GATT connection needed.
bool extractAdvName(const ble_gap_evt_adv_report_t* report, char* outName, size_t outSize)
{
const uint8_t* data = report->data.p_data;
uint16_t len = report->data.len;
uint16_t offset = 0;
while (offset + 1 < len)
{
uint8_t fieldLen = data[offset];
if (fieldLen == 0) break;
if (offset + 1 + fieldLen > len) break;
uint8_t adType = data[offset + 1];
if (adType == BLE_GAP_AD_TYPE_COMPLETE_LOCAL_NAME ||
adType == BLE_GAP_AD_TYPE_SHORT_LOCAL_NAME)
{
uint8_t nameLen = fieldLen - 1;
if (nameLen >= outSize) nameLen = (uint8_t)(outSize - 1);
memcpy(outName, &data[offset + 2], nameLen);
outName[nameLen] = '\0';
return true;
}
offset = (uint16_t)(offset + 1 + fieldLen);
}
return false;
}
bool addrEquals(const ble_gap_addr_t& a, const ble_gap_addr_t& b)
{
if (a.addr_type != b.addr_type) return false;
return memcmp(a.addr, b.addr, BLE_GAP_ADDR_LEN) == 0;
}
// ============================================================================
// BOOT BANNER / RESET REASON
// ============================================================================
void printBootBanner()
{
Serial.println("========================");
Serial.println("BOXING HUB BOOT");
Serial.println("========================");
Serial.print("Build date: ");
Serial.println(__DATE__);
Serial.print("Build time: ");
Serial.println(__TIME__);
Serial.println("========================");
}
void printResetReason()
{
uint32_t resetReas = NRF_POWER->RESETREAS;
Serial.print("Reset reason: ");
if (resetReas == 0)
{
Serial.print("POWERON ");
}
if (resetReas & POWER_RESETREAS_RESETPIN_Msk) Serial.print("RESETPIN ");
if (resetReas & POWER_RESETREAS_DOG_Msk) Serial.print("WATCHDOG ");
if (resetReas & POWER_RESETREAS_LOCKUP_Msk) Serial.print("LOCKUP ");
if (resetReas & POWER_RESETREAS_SREQ_Msk) Serial.print("SREQ ");
if (resetReas & POWER_RESETREAS_OFF_Msk) Serial.print("OFF ");
if (resetReas & POWER_RESETREAS_LPCOMP_Msk) Serial.print("LPCOMP ");
if (resetReas & POWER_RESETREAS_DIF_Msk) Serial.print("DIF ");
if (resetReas & POWER_RESETREAS_NFC_Msk) Serial.print("NFC ");
if (resetReas & POWER_RESETREAS_VBUS_Msk) Serial.print("VBUS ");
Serial.println();
// Nordic-recommended clear: writing back exactly the bits read clears
// only those bits.
NRF_POWER->RESETREAS = resetReas;
}
// ============================================================================
// LED
// ============================================================================
// Board LED is active-LOW; analogWrite lets us mix real colors (e.g.
// orange) instead of being limited to the 8 on/off combinations.
void setLedColor(uint8_t r, uint8_t g, uint8_t b)
{
analogWrite(LED_RED, 255 - r);
analogWrite(LED_GREEN, 255 - g);
analogWrite(LED_BLUE, 255 - b);
}
void triggerDiscoveryFailureBlink()
{
discoveryFailureBlinkUntilMs = millis() + 2000; // blink orange for 2s
}
void updateLed()
{
uint32_t now = millis();
bool blinkOn = ((now / 200) % 2) == 0;
// Priority 1: transient discovery-failure indication.
if (now < discoveryFailureBlinkUntilMs)
{
setLedColor(blinkOn ? 255 : 0, blinkOn ? 140 : 0, 0); // orange blink
return;
}
bool anyGloveReady = leftLink.ready || rightLink.ready;
// Priority 2: phone disconnected while at least one glove is ready.
if (!phoneConnected && anyGloveReady)
{
setLedColor(blinkOn ? 255 : 0, 0, 0); // red blink
return;
}
// Priority 3: both gloves ready.
if (leftLink.ready && rightLink.ready)
{
setLedColor(0, 255, 0); // solid green
return;
}
// Priority 4: exactly one glove ready.
if (anyGloveReady)
{
setLedColor(255, 255, 0); // solid yellow
return;
}
// Default: still scanning for gloves.
setLedColor(0, 0, 255); // solid blue
}
// ============================================================================
// FREE MEMORY (this core's FreeRTOS port wraps malloc()/free() from newlib
// instead of compiling in heap_4.c, so xPortGetFreeHeapSize() does not
// exist to link against here. This is the standard fallback: the gap
// between the current stack pointer and the current top of the malloc
// heap (sbrk(0)) is real, measured free space.)
// ============================================================================
extern "C" char *sbrk(int i);
static uint32_t freeMemoryBytes()
{
char stackTop;
return (uint32_t)(&stackTop - reinterpret_cast<char*>(sbrk(0)));
}
// ============================================================================
// DIAGNOSTICS — printed once per second
// ============================================================================
void printDiagnostics()
{
Serial.println("---- DIAG ----");
Serial.print("LEFT_CONNECTED: ");
Serial.println(leftLink.connected ? "yes" : "no");
Serial.print("LEFT_READY: ");
Serial.println(leftLink.ready ? "yes" : "no");
Serial.print("LEFT_PACKETS_PER_SEC: ");
Serial.println(leftLink.packetsThisSec);
Serial.print("RIGHT_CONNECTED: ");
Serial.println(rightLink.connected ? "yes" : "no");
Serial.print("RIGHT_READY: ");
Serial.println(rightLink.ready ? "yes" : "no");
Serial.print("RIGHT_PACKETS_PER_SEC: ");
Serial.println(rightLink.packetsThisSec);
Serial.print("PHONE_CONNECTED: ");
Serial.println(phoneConnected ? "yes" : "no");
Serial.print("PHONE_NOTIFY_ENABLED: ");
Serial.println(phoneReady ? "yes" : "no");
Serial.print("SCAN_RUNNING: ");
Serial.println(Bluefruit.Scanner.isRunning() ? "yes" : "no");
Serial.print("BAG_IMU_READS_PER_SEC: ");
Serial.println(bagImuReadsThisSec);
Serial.print("BAG_PACKETS_SENT_TOTAL: ");
Serial.println(bagPacketsSentTotal);
Serial.print("BAG_PACKETS_SENT_PER_SEC: ");
Serial.println(bagPacketsSentThisSec);
Serial.print("BAG_PACKETS_SKIPPED_PHONE_NOT_READY: ");
Serial.println(bagPacketsSkippedThisSec);
Serial.print("FREE_HEAP: ");
Serial.println(freeMemoryBytes());
if (leftLink.ready && leftLink.rssiMonitoring)
{
BLEConnection* c = Bluefruit.Connection(leftLink.connHandle);
Serial.print("RSSI_LEFT: ");
Serial.println(c ? c->getRssi() : 0);
}
else
{
Serial.println("RSSI_LEFT: unavailable");
}
if (rightLink.ready && rightLink.rssiMonitoring)
{
BLEConnection* c = Bluefruit.Connection(rightLink.connHandle);
Serial.print("RSSI_RIGHT: ");
Serial.println(c ? c->getRssi() : 0);
}
else
{
Serial.println("RSSI_RIGHT: unavailable");
}
Serial.println("--------------");
}
/*
* ============================================================================
* XIAO nRF52840 Sense — Boxing Glove BLE Sensor Firmware
* ============================================================================
*
* Board: Seeed XIAO nRF52840 Sense
* IMU: Built-in LSM6DS3 (I2C)
* BLE stack: Adafruit Bluefruit (nRF52 core)
* Role: BLE peripheral streaming IMU data to a central "hub"
*
* This firmware is intentionally simple:
* - No ring buffers, no batching, no punch detection, no filtering.
* - One CSV line per sample, sent only while a central is connected.
* - If disconnected, sampling/sending stops and advertising restarts.
* - Nothing is queued up while disconnected.
*
* To build the LEFT glove vs the RIGHT glove, change GLOVE_ID below and
* reflash. Nothing else needs to change between the two builds.
* ============================================================================
*/
#include <bluefruit.h>
#include <Wire.h>
#include "LSM6DS3.h"
#include <nrf.h>
// ============================================================================
// GLOVE IDENTITY — change this one line per build
// ============================================================================
#define GLOVE_ID 'L' // 'L' for left glove, 'R' for right glove
// ============================================================================
// SAMPLING CONFIG
// ============================================================================
const uint32_t SAMPLE_INTERVAL_MS = 100; // 100 ms for now (testing)
#define PACKET_VERSION 1
#if GLOVE_ID == 'L'
#define SENSOR_ID 1
#elif GLOVE_ID == 'R'
#define SENSOR_ID 2
#else
#error "GLOVE_ID must be 'L' or 'R'"
#endif
struct __attribute__((packed)) ImuPacket
{
uint8_t version;
uint8_t sensorId;
uint8_t sequence;
uint8_t reserved;
uint32_t timestamp;
int16_t ax;
int16_t ay;
int16_t az;
int16_t gx;
int16_t gy;
int16_t gz;
};
static_assert(sizeof(ImuPacket) == 20, "ImuPacket must be 20 bytes");
// ============================================================================
// BLE OBJECTS
// ============================================================================
BLEUart bleuart;
BLEDis bledis;
// ============================================================================
// IMU
// ============================================================================
LSM6DS3 imu(I2C_MODE, 0x6A);
bool imuOk = false;
// ============================================================================
// BATTERY (XIAO nRF52840 Sense known pins)
// ============================================================================
// PIN_VBAT / VBAT_ENABLE are provided by the Seeed board variant files.
// VBAT_ENABLE is held LOW permanently (per Seeed guidance — do not toggle
// it per-reading) to connect the onboard voltage divider to PIN_VBAT.
#if defined(PIN_VBAT) && defined(VBAT_ENABLE)
#define VBAT_SUPPORTED 1
static const float VBAT_ADC_REFERENCE_MV = 3600.0f; // internal ref, mV
static const float VBAT_ADC_MAX_COUNT = 4096.0f; // 12-bit
static const float VBAT_DIVIDER_RATIO = 1510.0f / 510.0f; // (1M+510k)/510k
#else
#define VBAT_SUPPORTED 0
#endif
// ============================================================================
// STATE
// ============================================================================
volatile bool bleConnected = false;
uint32_t lastSampleMs = 0;
uint32_t lastDiagMs = 0;
// Diagnostic counters (reset each 1-second window where noted)
uint32_t totalPacketsSent = 0;
uint32_t packetsSentThisSec = 0;
uint32_t imuReadsThisSec = 0;
uint32_t totalPacketsSkipped = 0;
uint8_t packetSequence = 0;
// LED error blink state
bool imuErrorLedState = false;
uint32_t lastImuErrorBlinkMs = 0;
// ============================================================================
// FORWARD DECLARATIONS
// ============================================================================
void startAdvertising();
void connect_callback(uint16_t conn_handle);
void disconnect_callback(uint16_t conn_handle, uint8_t reason);
void printBootBanner();
void printResetReason();
void setLed(bool r, bool g, bool b);
void updateImuErrorLed();
void printDiagnostics();
// ============================================================================
// SETUP
// ============================================================================
void setup()
{
Serial.begin(115200);
uint32_t serialWaitStart = millis();
while (!Serial && (millis() - serialWaitStart) < 3000)
{
delay(10);
}
// ---- Boot banner ----
printBootBanner();
// ---- Reset reason (read, print, then clear) ----
printResetReason();
// ---- LEDs ----
pinMode(LED_RED, OUTPUT);
pinMode(LED_GREEN, OUTPUT);
pinMode(LED_BLUE, OUTPUT);
setLed(false, false, false); // off (LEDs are active LOW on this board)
// ---- Battery ADC setup ----
#if VBAT_SUPPORTED
pinMode(VBAT_ENABLE, OUTPUT);
digitalWrite(VBAT_ENABLE, LOW);
pinMode(PIN_VBAT, INPUT);
analogReadResolution(12);
#endif
// ---- IMU init ----
Wire.begin();
if (imu.begin() != 0)
{
Serial.println("IMU INIT FAILED");
imuOk = false;
}
else
{
Serial.println("IMU INIT OK");
imuOk = true;
}
// ---- BLE init ----
Bluefruit.begin();
Bluefruit.setTxPower(8);
char bleName[24];
snprintf(bleName, sizeof(bleName), "XIAO-Glove-%c", (char)GLOVE_ID);
Bluefruit.setName(bleName);
Bluefruit.Periph.setConnectCallback(connect_callback);
Bluefruit.Periph.setDisconnectCallback(disconnect_callback);
bledis.setManufacturer("Seeed Studio");
bledis.setModel("XIAO nRF52840 Sense Boxing Glove");
bledis.begin();
bleuart.begin();
startAdvertising();
lastSampleMs = millis();
lastDiagMs = millis();
}
// ============================================================================
// LOOP
// ============================================================================
void loop()
{
uint32_t now = millis();
// ---- IMU error LED (blinks continuously if IMU failed to init) ----
updateImuErrorLed();
// ---- Sample + send, only while connected, at the configured interval ----
if ((now - lastSampleMs) >= SAMPLE_INTERVAL_MS)
{
lastSampleMs = now;
if (bleConnected && imuOk)
{
float ax = imu.readFloatAccelX();
float ay = imu.readFloatAccelY();
float az = imu.readFloatAccelZ();
float gx = imu.readFloatGyroX();
float gy = imu.readFloatGyroY();
float gz = imu.readFloatGyroZ();
imuReadsThisSec++;
if (bleuart.notifyEnabled())
{
ImuPacket pkt;
pkt.version = PACKET_VERSION;
pkt.sensorId = SENSOR_ID;
pkt.sequence = packetSequence++;
pkt.reserved = 0;
pkt.timestamp = now;
// accel: g -> milli-g
pkt.ax = (int16_t)(ax * 1000.0f);
pkt.ay = (int16_t)(ay * 1000.0f);
pkt.az = (int16_t)(az * 1000.0f);
// gyro: deg/sec -> 0.1 deg/sec
pkt.gx = (int16_t)(gx * 10.0f);
pkt.gy = (int16_t)(gy * 10.0f);
pkt.gz = (int16_t)(gz * 10.0f);
bleuart.write((uint8_t*)&pkt, sizeof(pkt));
totalPacketsSent++;
packetsSentThisSec++;
}
else
{
// Connected at the link layer but the central hasn't enabled
// notifications yet — don't build up any backlog, just skip.
totalPacketsSkipped++;
}
}
else if (!bleConnected)
{
// Not connected: do nothing. No buffering, no queueing.
totalPacketsSkipped++;
}
}
// ---- Diagnostics, once per second ----
if ((now - lastDiagMs) >= 1000)
{
lastDiagMs = now;
printDiagnostics();
packetsSentThisSec = 0;
imuReadsThisSec = 0;
}
}
// ============================================================================
// BLE ADVERTISING
// ============================================================================
void startAdvertising()
{
Bluefruit.Advertising.clearData();
// Put the name directly in the main Advertisement packet
Bluefruit.Advertising.addFlags(BLE_GAP_ADV_FLAGS_LE_ONLY_GENERAL_DISC_MODE);
Bluefruit.Advertising.addTxPower();
Bluefruit.Advertising.addName(); // <--- MOVE THIS HERE
Bluefruit.Advertising.addService(bleuart);
// Leave ScanResponse clean
Bluefruit.ScanResponse.clearData();
Bluefruit.Advertising.restartOnDisconnect(true);
Bluefruit.Advertising.setInterval(32, 244);
Bluefruit.Advertising.setFastTimeout(30);
Bluefruit.Advertising.start(0);
Serial.println("ADVERTISING STARTED");
if (imuOk) setLed(false, false, true);
}
// ============================================================================
// BLE CALLBACKS (kept short — no blocking work here)
// ============================================================================
void connect_callback(uint16_t conn_handle)
{
(void) conn_handle;
bleConnected = true;
Serial.println("BLE CONNECTED");
setLed(false, true, false); // green = connected
}
void disconnect_callback(uint16_t conn_handle, uint8_t reason)
{
(void) conn_handle;
bleConnected = false;
Serial.print("BLE DISCONNECTED reason=0x");
Serial.println(reason, HEX);
// Bluefruit's restartOnDisconnect(true) handles re-advertising for us.
// We just reflect the LED state; the "ADVERTISING STARTED" print for
// the automatic restart is not re-emitted here since Bluefruit does not
// expose a callback for it — the LED still switches back to blue.
if (imuOk)
{
setLed(false, false, true); // blue = advertising again
}
}
// ============================================================================
// BOOT BANNER
// ============================================================================
void printBootBanner()
{
char nameBuf[24];
snprintf(nameBuf, sizeof(nameBuf), "XIAO-Glove-%c", (char)GLOVE_ID);
Serial.println("========================");
Serial.println("GLOVE BOOT");
Serial.print("Name: ");
Serial.println(nameBuf);
Serial.print("Sample interval: ");
Serial.print(SAMPLE_INTERVAL_MS);
Serial.println(" ms");
Serial.print("Build date: ");
Serial.println(__DATE__);
Serial.print("Build time: ");
Serial.println(__TIME__);
Serial.println("========================");
}
// ============================================================================
// RESET REASON (nRF52840 RESETREAS) — read, print, then clear
// ============================================================================
void printResetReason()
{
uint32_t resetReas = NRF_POWER->RESETREAS;
Serial.print("Reset reason: ");
if (resetReas == 0)
{
Serial.print("POWERON ");
}
if (resetReas & POWER_RESETREAS_RESETPIN_Msk) Serial.print("RESETPIN ");
if (resetReas & POWER_RESETREAS_DOG_Msk) Serial.print("WATCHDOG ");
if (resetReas & POWER_RESETREAS_LOCKUP_Msk) Serial.print("LOCKUP ");
if (resetReas & POWER_RESETREAS_SREQ_Msk) Serial.print("SREQ ");
if (resetReas & POWER_RESETREAS_OFF_Msk) Serial.print("OFF ");
if (resetReas & POWER_RESETREAS_LPCOMP_Msk) Serial.print("LPCOMP ");
if (resetReas & POWER_RESETREAS_DIF_Msk) Serial.print("DIF ");
if (resetReas & POWER_RESETREAS_NFC_Msk) Serial.print("NFC ");
if (resetReas & POWER_RESETREAS_VBUS_Msk) Serial.print("VBUS ");
Serial.println();
// Nordic-recommended clear: write back exactly the bits that were read,
// which clears only those bits and leaves the rest untouched.
NRF_POWER->RESETREAS = resetReas;
}
// ============================================================================
// FREE MEMORY (this core's FreeRTOS port wraps malloc()/free() from newlib
// instead of compiling in heap_4.c, so xPortGetFreeHeapSize() does not
// exist to link against here. This is the standard fallback: the gap
// between the current stack pointer and the current top of the malloc
// heap (sbrk(0)) is real, measured free space.)
// ============================================================================
extern "C" char *sbrk(int i);
static uint32_t freeMemoryBytes()
{
char stackTop;
return (uint32_t)(&stackTop - reinterpret_cast<char*>(sbrk(0)));
}
// ============================================================================
// LED HELPER
// ============================================================================
// XIAO nRF52840 (Sense) onboard RGB LED is active LOW.
void setLed(bool r, bool g, bool b)
{
digitalWrite(LED_RED, r ? LOW : HIGH);
digitalWrite(LED_GREEN, g ? LOW : HIGH);
digitalWrite(LED_BLUE, b ? LOW : HIGH);
}
void updateImuErrorLed()
{
if (imuOk)
{
return;
}
uint32_t now = millis();
if ((now - lastImuErrorBlinkMs) >= 300)
{
lastImuErrorBlinkMs = now;
imuErrorLedState = !imuErrorLedState;
setLed(imuErrorLedState, false, false); // red blink = IMU error
}
}
// ============================================================================
// DIAGNOSTICS — printed once per second
// ============================================================================
void printDiagnostics()
{
Serial.println("---- DIAG ----");
Serial.print("GLOVE_ID: ");
Serial.println((char)GLOVE_ID);
Serial.print("UPTIME_MS: ");
Serial.println(millis());
Serial.print("BLE_CONNECTED: ");
Serial.println(bleConnected ? "yes" : "no");
Serial.print("PACKETS_SENT_TOTAL: ");
Serial.println(totalPacketsSent);
Serial.print("PACKETS_SENT_PER_SEC: ");
Serial.println(packetsSentThisSec);
Serial.print("IMU_READS_PER_SEC: ");
Serial.println(imuReadsThisSec);
Serial.print("PACKETS_SKIPPED_DISCONNECTED: ");
Serial.println(totalPacketsSkipped);
Serial.print("FREE_HEAP: ");
Serial.println(freeMemoryBytes());
#if VBAT_SUPPORTED
{
uint32_t adcCount = analogRead(PIN_VBAT);
float adcMillivolts = (adcCount / VBAT_ADC_MAX_COUNT) * VBAT_ADC_REFERENCE_MV;
float batteryVolts = (adcMillivolts * VBAT_DIVIDER_RATIO) / 1000.0f;
Serial.print("VBAT: ");
Serial.print(batteryVolts, 2);
Serial.println("V");
}
#else
Serial.println("VBAT: not implemented");
#endif
Serial.println("--------------");
}
